6DS1722-8RR SIEMENS

6DS1722-8RR Siemens Basis unit

Brand：SIEMENS Model number：6DS1722-8RR

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

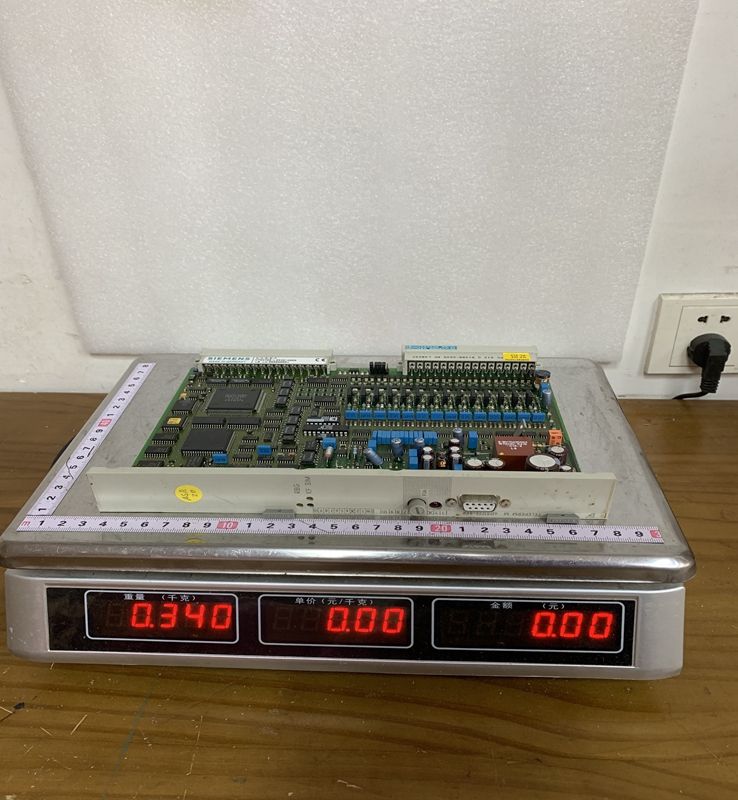

Product Dimensions：

The 6DS1722-8RR module belongs to the Teleperm M automation system, which was widely deployed by Siemens for large-scale process control. This specific hardware variant is engineered to coordinate and control data traffic across system buses, ensuring that time-critical process data from sensors and actuators is routed smoothly to central processing units. Given its classification within the TELEPERM series, the module features robust, industrial-grade circuitry intended for continuous, long-term operation where component failure could mean costly factory downtime. It uses specialized backplane connectors to slot directly into dedicated Teleperm system subracks.

Product Parameters

Product Family: Siemens TELEPERM M
Module Function: Bus interface / Bus coupling card
Input Voltage: Typically powered through the subrack backplane at standard system voltages ( $24 \text{ VDC}$ or $5 \text{ VDC}$ logic levels)
Current Consumption: Rated based on backplane power allocation specifications for Teleperm M cards
Cooling Requirements: Natural convection within a properly ventilated subrack enclosure
Form Factor: Proprietary Siemens Teleperm M plug-in card design with front-panel locking handles
Status Indication: Features front-facing LED diagnostics to indicate module health, active transmission, and bus fault conditions
Environmental Limits: Standard industrial operating temperature range, typically from $0\text{°C}$ to $55\text{°C}$ within the control cabinet

Product Advantages

A primary advantage of the 6DS1722-8RR is its High Reliability. Built for heavy industrial environments, its components are rated for long lifecycles under continuous load. Another advantage is Deterministic Communication, as the Teleperm M architecture ensures that critical process alarms and control loops are processed with consistent, predictable timing. The module also features Seamless System Integration within its native platform, requiring no complex third-party protocol converters when expanding or maintaining an existing Teleperm environment. Additionally, its Front-Panel Diagnostics allow maintenance technicians to quickly isolate bus faults without having to probe backplane connections manually.

Important Considerations and Precautions

When handling the 6DS1722-8RR, the most critical precaution is Electrostatic Discharge (ESD) Protection. Because this is a legacy circuit board with exposed logic chips, handling the module without a proper grounding wrist strap can cause latent damage that leads to premature failure. Power De-energization is mandatory; never insert or remove this module from the subrack while the system power is active, as doing so can cause electrical arcing, data corruption on the bus, or permanent damage to the backplane connectors.

Users must also consider its Legacy Availability Status. Since the Teleperm M system is highly mature and largely succeeded by newer platforms like PCS 7, sourcing replacement components can be difficult, and existing modules should be handled with extreme care during routine cleaning or migration projects. Lastly, ensure that the Subrack Slot Alignment is perfect before applying pressure to seat the card, as forcing a misaligned module can bend the delicate backplane pins.

Product Applications

The Siemens 6DS1722-8RR is utilized exclusively in heavy industrial automation systems where legacy Teleperm M infrastructure remains active.

Chemical Plants: Managing distributed data communication across distillation columns and batch processing stations.
Oil and Gas Refineries: Interfacing critical control signals between remote I/O stations and centralized control rooms.
Power Generation Facilities: Maintaining reliable communication paths for turbine monitoring and boiler control loops.
Water and Wastewater Facilities: Linking remote pump control systems to older centralized SCADA systems.
Iron and Steel Mills: Ensuring continuous data transmission in harsh, high-temperature environmental zones where process synchronization is vital.
