6ES7152-1AA00-0AB0 SIEMENS

6ES7152-1AA00-0AB0 Siemens Basis unit

Brand：SIEMENS Model number：6ES7152-1AA00-0AB0

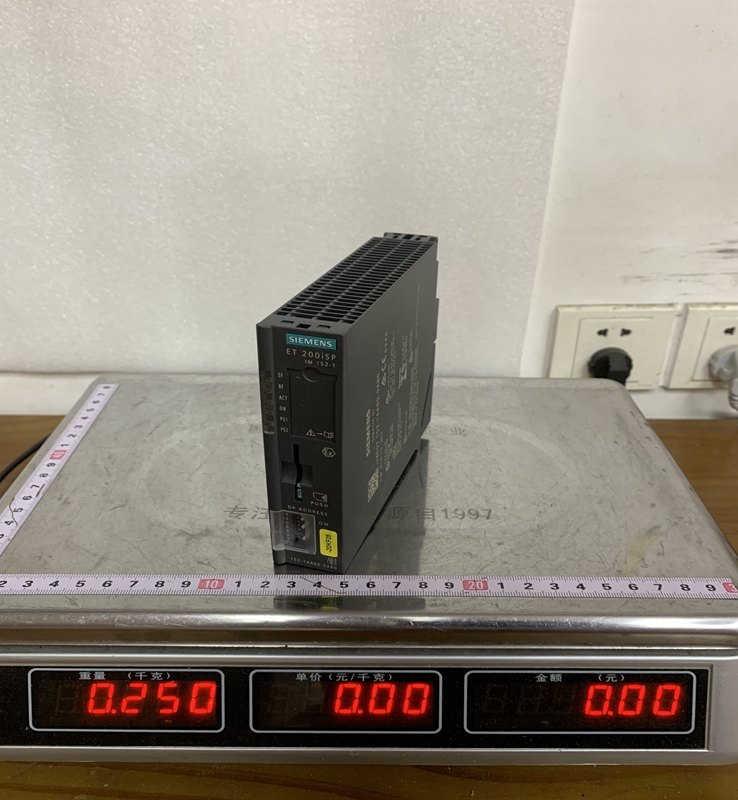

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The 6ES7152-1AA00-0AB0 is designated as the IM 152-1 Interface Module. The ET 200iSP system is a modular, decentralized I/O station designed to be installed directly inside Zone 1 or Zone 2 hazardous environments. The IM 152-1 module handles all communication between the higher-level automation system (such as a S7-300, S7-400, or S7-1500 controller) and the electronic modules residing on the ET 200iSP terminal modules. It converts the incoming PROFIBUS signals into internal backplane bus communications while ensuring strict intrinsic safety electrical isolation.

Product Parameters

Product Family: SIMATIC ET 200iSP
Module Type: IM 152-1 Interface Module
Vendor Protocol Support: PROFIBUS DP-V1 (up to $1.5 \text{ Mbps}$ )
Supply Voltage: Powered via the internal backplane connection from the ET 200iSP Power Supply module ( $24 \text{ VDC}$ input to the PS)
Current Consumption: Max $30 \text{ mA}$ from the internal supply
Power Loss: Typically around $1 \text{ W}$
Time Stamping Accuracy: Supports high-precision time stamping of digital inputs with $1 \text{ ms}$ resolution
Ex Protection Class: ATEX / IECEx certification for installation directly in Zone 1, keeping connections to Zone 0 sensors intrinsically safe (Ex d ib [ia/ib] IIC T4)
Dimensions: Width $30 \text{ mm}$ , Height $129 \text{ mm}$ , Depth $136 \text{ mm}$
Weight: Approximately $245 \text{ grams}$

Product Advantages

A major advantage of the 6ES7152-1AA00-0AB0 is its Intrinsically Safe Design, which eliminates the need for bulky, expensive explosion-proof explosion enclosures, enabling substantial savings in installation space and material costs. The module supports Hot Swapping (Configuration in Run - CiR), which allows maintenance personnel to replace modules or even expand the station while the plant is operating, without shutting down the control loop.

It also features High-Performance Diagnostics, allowing the master controller to read precise channel-level fault data over the PROFIBUS line. Additionally, its Redundancy Capability allows two IM 152-1 modules to be configured on a redundant terminal module, ensuring continuous operation even if one communication line or interface module fails.

Important Considerations and Precautions

When installing the 6ES7152-1AA00-0AB0, it is vital to remember that the module itself must be mounted on a specific ET 200iSP Terminal Module (TM-IM/IM), which handles the physical connection to the PROFIBUS line and the power distribution. Although the station is rated for Zone 1, it must be installed inside an Enclosure with at least IP54 protection to guard against environmental contaminants like dust and moisture.

Special care must be taken with PROFIBUS Bus Segments; standard RS-485 repeaters cannot be used directly in Zone 1. Instead, an intrinsically safe fieldbus isolating repeater (such as the RS 485-IS coupler) must be placed between the safe-area master and the hazardous-area ET 200iSP station. Furthermore, always verify that the PROFIBUS Address Switches on the front of the module are set correctly before powering up the station, as changing the hardware switches while running requires a module restart to take effect.

Product Applications

The Siemens 6ES7152-1AA00-0AB0 is widely deployed across process industries where explosive atmospheres are frequently present.

Chemical Plants: Interfacing with intrinsically safe temperature, pressure, and flow transmitters located near chemical reactors and storage tanks.
Oil and Gas Refineries: Distributing I/O points across offshore drilling platforms and onshore processing stations where hydrocarbons are handled.
Pharmaceutical Manufacturing: Monitoring processing equipment in solvent-rich extraction and crystallization areas.
Wastewater Treatment: Connecting gas detection sensors and pumping controls in digester zones prone to methane buildup.
Grain and Powder Handling: Managing control signals in silo areas where combustible dust poses a high risk of explosion.
