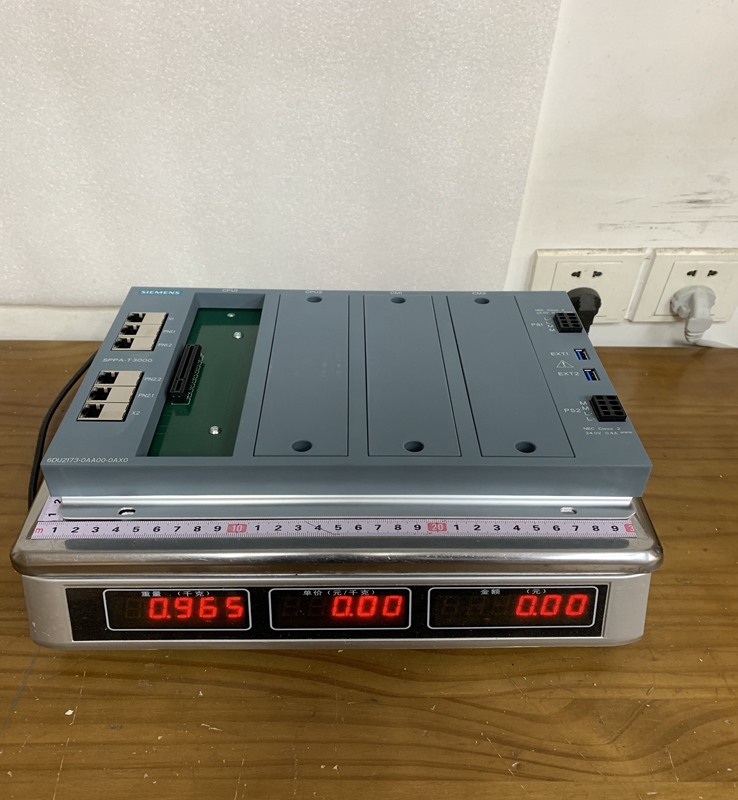

6DU2173-0AA00-0AX0 Siemens Basis unit

Brand：SIEMENS Model number：6DU2173-0AA00-0AX0

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The 6DU2173-0AA00-0AX0 belongs to the core infrastructure layer of the Siemens SPPA-T3000 power plant control system. It provides 4 dedicated hardware slots designed to accommodate the MSC CPU processing modules and related functional extensions (such as Ethernet expansion boards). The backplane delivers deterministic, high-speed internal data routing and reliable power distribution across all installed modules. Built with an industrial-grade multi-layer circuit board design, it ensures consistent electronic connectivity in demanding environments like power generation and massive infrastructure utilities.

Product Parameters

Product Family Designation: Siemens SPPA-T3000
Compatible Systems: AS3000 and CS3000 automation controller configurations
Component Type: 4-Slot Backplane Rack
Slot Capacity: 1 slot typically reserved for the primary CPU module, with remaining slots open for redundant configurations or communication expansion
Operating Voltage Range: Supplied via the integrated system power distribution infrastructure, compliant with standard industrial 24 VDC control criteria
Data Transmission: High-speed, low-latency multi-bus architecture for deterministic module-to-module data exchange
Operating Temperature Limits: Rated for operation between 0°C and 60°C (32°F to 140°F) within a protected cabinet enclosure
Storage Temperature Limits: Designed to withstand transport conditions from -40°C to 70°C (-40°F to 158°F)
Relative Humidity Compatibility: 5% to 95% non-condensing relative humidity parameters

Product Advantages

A critical advantage of the 6DU2173-0AA00-0AX0 is its Redundancy Support. The 4-slot configuration allows the backplane to concurrently host twin CPU modules alongside their dedicated expansion hardware, ensuring seamless failover capability which is vital for uninterrupted turbine and boiler controls. Another significant asset is its High Signal Integrity achieved through optimized trace impedance on the bus, minimizing data corruption risks caused by electromagnetic noise common to high-voltage equipment yards.

The backplane also boasts Robust Mechanical Alignment, engineered with structural guide rails that guarantee secure pin alignment during module insertion, preventing bent pins or weak electrical interfaces. Furthermore, its Streamlined Footprint optimizes space consumption within standard 19-inch electrical enclosures, enabling high-density automation processing in a compact area.

Important Considerations and Precautions

When installing and engineering with the 6DU2173-0AA00-0AX0, strict Electrostatic Discharge (ESD) Protection must be maintained; technicians must wear grounded wrist straps while handling the exposed backplane board to prevent micro-shocks that can degrade internal trace paths. Chassis Grounding must be executed thoroughly, ensuring that the backplane mounting brackets are bonded to the primary control cabinet ground bar to mitigate ground loop noise.

It is vital to realize that Hot-Swapping the Backplane Itself Is Prohibited; while individual modules can sometimes be serviced depending on your configuration, the entire rack power supply must be completely de-energized before mounting, unmounting, or rewiring the backplane baseplate. Furthermore, any Unused Slots on the backplane should be protected with dummy plates or blank covers to prevent ambient dust accumulation, moisture condensation, or loose metallic hardware from falling inside and creating short circuits across the exposed bus pins.

Product Applications

The 6DU2173-0AA00-0AX0 backplane is implemented exclusively in heavy process control topologies where the Siemens SPPA-T3000 DCS architecture dictates execution.

Combined Cycle Power Plants (CCPP): Hosting the core AS3000/CS3000 controllers responsible for high-speed gas and steam turbine governing systems.
Biomass and Renewable Energy Plants: Anchoring the main automation platform that monitors fuel quality feed, load balance adjustments, and auxiliary safety sequences.
Desalination and Water Treatment Infrastructure: Managing critical automated processes requiring long-term system availability and stringent cybersecurity integration.
Large Boiler Control Systems: Interfacing the processing intelligence required to coordinate burner management systems (BMS) and complex draft fan loops.
Balance of Plant (BoP) Utilities: Acting as the central communication nexus linking third-party localized networks to the main control center over extended distances.
