6SL3244-0SA00-1AA0 SIEMENS

6SL3244-0SA00-1AA0 Siemens Basis unit

Brand：SIEMENS Model number：6SL3244-0SA00-1AA0

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

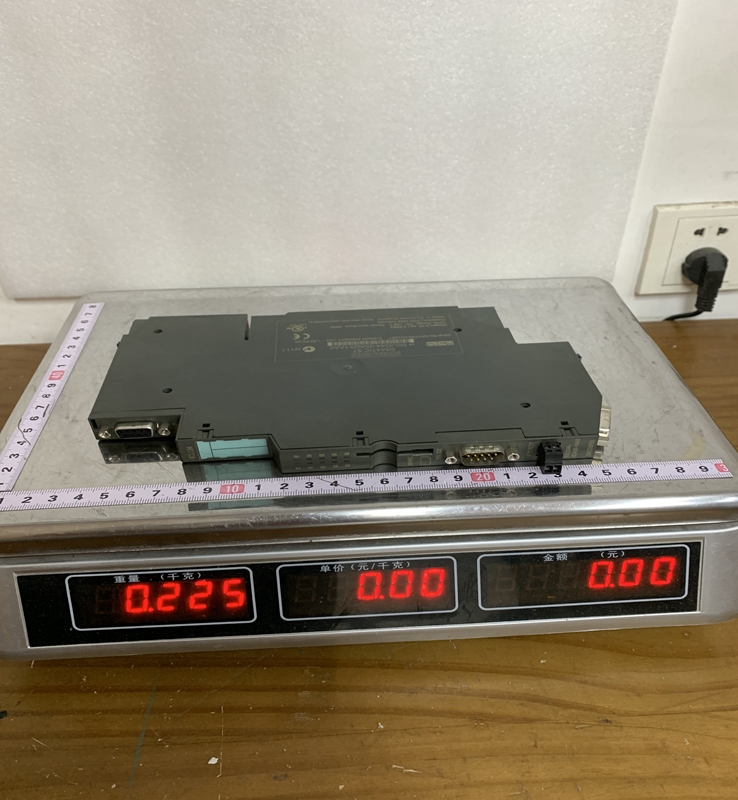

Product Dimensions：

The 6SL3244-0SA00-1AA0 is part of Siemens' modular drive concept, where a complete variable frequency drive consists of a Power Module (which handles the electrical power output to the motor) and a Control Unit (which contains the control electronics and communication interfaces). The CU240E-2 serves as the core processor that executes control algorithms like V/f control or vector control. This specific unit features integrated safety functions (Safe Torque Off) and uses terminal strips for wiring up digital and analog field signals. It operates as a standalone controller or can be integrated into a larger automation system.

Product Parameters

Product Brand: Siemens
Product Line: SINAMICS G120
Control Unit Designation: CU240E-2
Fieldbus Communication: This model features standard terminal communication and is typically the basic analog/digital variant without integrated fieldbus protocols like PROFINET or PROFIBUS (other variants in the family handle those).
Digital Inputs: 6 programmable digital inputs.
Digital Outputs: 3 digital outputs (typically 1 relay output and 2 electronic outputs).
Analog Inputs: 2 analog inputs (can be configured for 0-10V voltage or 0/4-20mA current).
Analog Outputs: 2 analog outputs.
Safety Integrated Functions: Safe Torque Off (STO) is integrated as standard, achieving SIL 2 (IEC 61508) or PL d (ISO 13849-1).
Supply Voltage: $24 \text{ VDC}$ via external supply or internally from the Power Module.
Filter Interface: Slot for an optional operator panel like the BOP-2 (Basic Operator Panel) or IOP-2 (Intelligent Operator Panel).
Protection Class: IP20 (must be installed inside a control cabinet).

Product Advantages

A major benefit of the 6SL3244-0SA00-1AA0 is its Modular Flexibility. Because the control unit is separate from the power module, users can easily replace the control electronics without disconnecting heavy motor cables from the power stage, minimizing maintenance downtime. The Integrated Safety (STO) function eliminates the need for external electromechanical safety contactors, reducing both installation costs and panel space.

The Advanced Control Capabilities, including sensorless vector control, allow for precise speed regulation and high torque availability even at low operating frequencies. Additionally, the Wizards-Based Commissioning available through Siemens Startdrive or operator panels makes parameter setup, motor identification, and diagnostic monitoring highly intuitive for technicians.

Important Considerations and Precautions

When configuring or maintaining the 6SL3244-0SA00-1AA0, it is vital to remember that Hot-Plugging is Prohibited under certain conditions; never plug or unplug the Control Unit from the Power Module while the main line voltage or the $24 \text{ VDC}$ auxiliary power is active, as this can destroy the communication pins between the modules.

Ensure that the Analog Input Dip Switches located on the side of the unit are correctly set to match your incoming signal type (Voltage vs. Current) before powering on the device; an incorrect setting can cause reading errors or hardware damage.

Proper EMC Shielding must be applied to all control and signal wires; routing low-voltage analog cables alongside high-voltage motor cables without shielding will cause erratic speed behavior due to electrical noise. Finally, if utilizing the Safety Integrated Functions, a regular proof test must be performed in accordance with local safety standards to verify the functional integrity of the STO circuit.

Product Applications

The Siemens 6SL3244-0SA00-1AA0 is utilized across standard industrial automation sectors for basic to medium-complexity speed control.

Conveyor Systems: Managing the smooth acceleration and deceleration of belts, rollers, and sorting chains in logistics centers.
Pumps and Fans: Providing energy-saving variable speed control for centrifugal pumps, exhaust fans, and cooling towers in HVAC and water treatment systems.
Compressors: Controlling screw and piston compressors to match air or gas delivery with changing system demands.
Mixers and Agitators: Maintaining constant torque and speed profiles during chemical or food processing operations.
Basic Gate Controls: Powering the mechanical drive systems for heavy industrial doors and motorized barriers.
