3UF7010-1AB00-0 SIEMENS

3UF7010-1AB00-0 Siemens Basis unit

Brand：SIEMENS Model number：3UF7010-1AB00-0

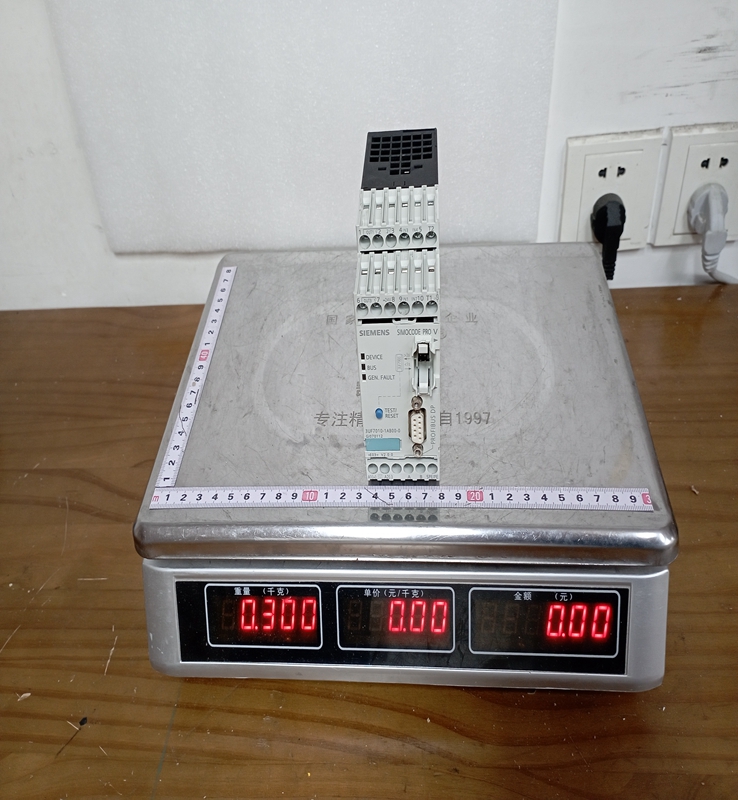

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The 3UF7010-1AB00-0 acts as the central processor of the SIMOCODE pro V system. It is responsible for executing all motor control functions, processing safety logic, and handling communication via a PROFIBUS DP interface. This basic unit connects to current/voltage measuring modules, operator panels, and expansion digital/analog I/O modules via a system interface. It provides comprehensive motor protection that goes far beyond standard thermal overload relays, including protection against phase failure, asymmetry, blocked rotors, and ground faults. The configuration is easily managed through the SIRIUS ES software framework.

Product Parameters

Product Brand Name: SIRIUS
Product Designation: Motor Management System SIMOCODE pro V PROFIBUS Basic Unit 2
Control Supply Voltage: $24 \text{ VDC}$ (with a permissible operational range of $20.4 \text{ VDC}$ to $28.8 \text{ VDC}$ )
Inputs/Outputs: Includes 4 digital inputs (internally powered by $24 \text{ VDC}$ ) and 3 monostable relay outputs.
Communication Protocol: PROFIBUS DP interface supporting transmission rates up to $12 \text{ Mbit/s}$ .
Thermistor Motor Protection: Built-in connection for PTC thermistors (type A) to monitor winding temperature directly.
Safety Integrated: Supports safety-related tripping functions up to SIL 3 (IEC 61508) or PL e (ISO 13849-1) when combined with safety digital modules.
Degree of Protection: IP20 (designed exclusively for control cabinet installation).
Mounting: Snaps onto a standard $35 \text{ mm}$ DIN rail or can be screw-mounted using adapters.
Dimensions: Width $45 \text{ mm}$ , Height $111 \text{ mm}$ , Depth $124 \text{ mm}$ .

Product Advantages

A major advantage of the 3UF7010-1AB00-0 is its Multifunctional Motor Control. It replaces numerous discrete control components (such as timers, interlocking relays, and overload devices) by integrating standard motor starter types (e.g., direct-on-line, reversing, star-delta) directly into its programmable logic. The High-Speed Communication over PROFIBUS allows for instantaneous transmission of operational data, such as current, voltage, and time-to-trip, directly to a centralized DCS or PLC.

The system's Modular Scalability ensures that users only buy the I/O or measurement capabilities they need while retaining the option to expand later. Additionally, the Detailed Diagnostic Memories log the last clear faults with timestamps, dramatically reducing the mean time to repair (MTTR) when a motor trip occurs.

Important Considerations and Precautions

When setting up the 3UF7010-1AB00-0, ensure that the 24 VDC Control Voltage is highly stable and free from severe noise, as voltage dips below the minimum threshold can cause the basic unit to reset and unexpectedly drop the motor contactors. Addressing the PROFIBUS Node must be done correctly using the hardware DIP switches or via software before integrating it into the network; duplicate addresses will disrupt network stability.

Always connect the System Interface Cables (connecting the basic unit to current modules or panels) only when the power is completely off to prevent electronic damage to the internal communication bus. For Thermistor Input Wiring, ensure cables are routed away from high-power motor leads to avoid capacitive noise coupling that could trigger false over-temperature faults. Lastly, verify that the Motor Parameter Settings (such as nominal current $I_e$ and trip class) configured in the software exactly match the motor nameplate to ensure valid overload protection.

Product Applications

The Siemens 3UF7010-1AB00-0 is primarily utilized in critical process automation sectors where motor downtime represents significant financial loss.

Chemical and Petrochemical Plants: Controlling pump and agitator motors where precise fault diagnostics and preventative maintenance indicators are essential.
Oil and Gas Industries: Managing remote pipeline compressors and extraction pumps that require reliable fieldbus monitoring over long distances.
Power Generation: Controlling auxiliary motors for cooling towers, coal handling conveyors, and water feed pumps.
Water and Wastewater: Managing high-power submersible pumps, treating plants, and aeration blowers, often utilizing the integrated dry-running protection logic.
Cement and Mining Facilities: Protecting heavy-duty crusher and conveyor motors from blocked rotor conditions and phase imbalances caused by harsh supply networks.
