ZIC-8B SIEMENS

ZIC-8B Siemens Basis unit

Brand：SIEMENS Model number：ZIC-8B

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

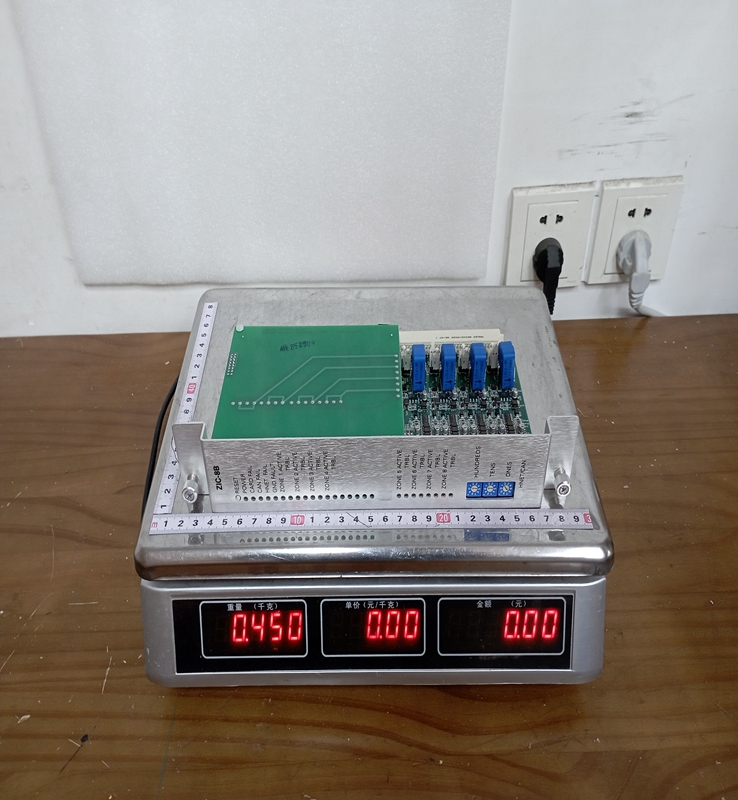

Product Dimensions：

The ZIC-8B functions as an addressable module that interfaces directly with the fire alarm panel's main processor via the system's backplane. It features eight independent, configurable circuits that can be programmed to drive various notification appliances or serve as dedicated zone indicators. The module is engineered to give emergency personnel instant visual feedback regarding the alarm, supervisory, or fault status of specific areas within a building. It utilizes advanced microprocessor-based logic to process data packets from the fire network swiftly, ensuring real-time responsiveness during an emergency.

Product Parameters

Product Series: Siemens Fire Safety Modular / Cerberus PRO Modular
Model Number: ZIC-8B
Input Voltage: $24 \text{ VDC}$ nominal, supplied through the system backplane or external auxiliary power source
Number of Zones/Circuits: 8 independently programmable circuits
Output Configuration: Configurable for Notification Appliance Circuits (NAC) or dry contact outputs depending on system programming
Maximum Current Rating: Typically up to $2 \text{ A}$ per circuit, subject to overall panel power supply limitations
Communication Interface: Proprietary peer-to-peer network interface via the enclosure backplane
Operating Temperature: $0\text{°C}$ to $49\text{°C}$ ( $32\text{°F}$ to $120\text{°F}$ )
Relative Humidity: Up to 93% non-condensing
Agency Approvals: UL listed for Fire Protective Signaling Systems, ULC listed, FM approved, and CSFM approved

Product Advantages

A major advantage of the ZIC-8B is its High Zoning Density, packing eight fully independent circuits into a single slot module, which minimizes the physical footprint required inside the fire panel cabinet. The Software-Configurable Flexibility allows each circuit to be tailored for different behaviors, such as continuous, marching, or temporal patterns, without altering physical wiring.

Additionally, the Advanced Supervised Output design ensures that the module continuously monitors the field wiring for open or short circuits, generating a trouble signal immediately if a fault occurs, thereby guaranteeing system readiness. Its Seamless Integration into the Siemens Modular system environment means it benefits from global system logic programming and diagnostics, making configuration via the Zeus tool straightforward for technicians.

Important Considerations and Precautions

When installing and commissioning the ZIC-8B, strictly observe the Maximum Power Limits of the system; overloading the individual circuits or exceeding the aggregate power supply capacity of the enclosure will cause the panel to drop into a fault state or fail to activate notification devices during an alarm. Ensure that End-of-Line (EOL) Resistors are correctly installed and matched to the specifications for supervised circuits to prevent false trouble readings.

Because this card handles notification paths, all Field Wiring Insulation must be checked for grounds and shorts before inserting the module into the backplane, as field-side faults can damage the sensitive solid-state switching components on the card. Lastly, never insert or remove the ZIC-8B module while the System Backplane is Powered; always completely power down both AC and battery backup sources prior to servicing the panel to avoid catastrophic electronic damage or accidental alarms.

Product Applications

The Siemens ZIC-8B is primarily utilized in complex, multi-zone fire protection strategies where directional evacuation or targeted notification is essential.

High-Rise Commercial Buildings: Managing distinct speaker or strobe notification zones floor-by-floor to facilitate orderly phased evacuation during an emergency.
Large Educational Campuses: Interfacing with notification lines across separate wings or buildings from a centralized control room panel.
Industrial Manufacturing Plants: Driving specialized high-output horn-strobes or status indicators in noisy plant zones to warn workers of specific chemical or fire hazards.
Healthcare Facilities: Controlling localized alarm zones in hospital wings to alert staff quietly via visual indicators before initiating full acoustic notification in patient care areas.
Data Centers: Integrating localized fire suppression release warnings and pre-alarm visual statuses across independent server halls.
