6SL3040-1MA01-0AA0 SIEMENS

6SL3040-1MA01-0AA0 Siemens Basis unit

Brand：SIEMENS Model number：6SL3040-1MA01-0AA0

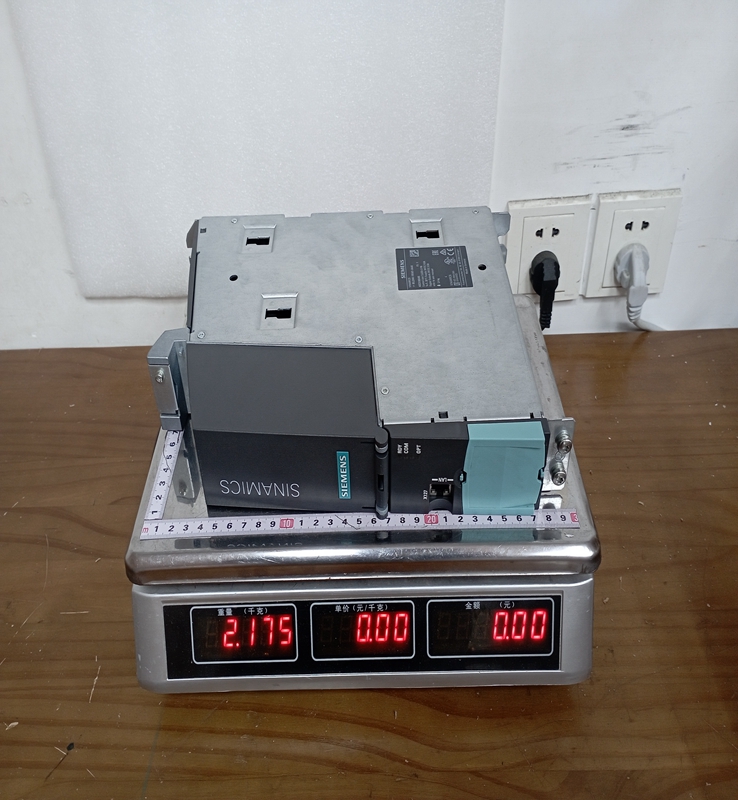

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

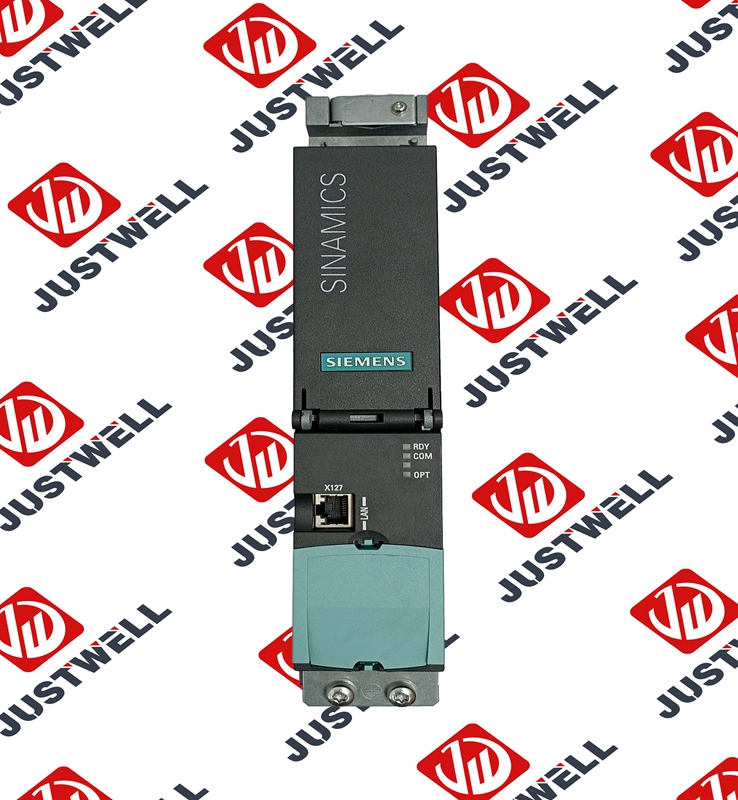

The 6SL3040-1MA01-0AA0 is designed to control multi-axis drive line-ups configured with SINAMICS S120 Motor Modules and Line Modules. It connects to power units and sensor modules via the high-speed, internal DRIVE-CLiQ serial interface. The suffix "PN" indicates that this control unit features integrated PROFINET interfaces, allowing it to easily integrate into Siemens TIA (Totally Integrated Automation) architectures alongside SIMATIC PLCs and HMI panels. The unit operates via a high-performance microprocessor that runs the SINAMICS firmware, which is loaded via a separate CompactFlash card.

Product Parameters

Product Brand Name: SINAMICS
Product Type Designation: Control Unit CU320-2 PN
Fieldbus Communication: Integrated PROFINET interface with 2 ports (RJ45 socket)
DRIVE-CLiQ Interfaces: 4 onboard DRIVE-CLiQ sockets for communication with power modules and encoders
Digital Inputs: 12 isolated digital inputs
Digital Inputs/Outputs: 8 bidirectional, non-isolated digital inputs/outputs (configurable)
Supply Voltage: $24 \text{ VDC}$ (permissible range $20.4 \text{ V}$ to $28.8 \text{ V}$ )
Power Consumption: Approximately $1 \text{ A}$ (at $24 \text{ VDC}$ without taking digital outputs or DRIVE-CLiQ topology into account)
Slot for Options: 1 slot for an option board (such as additional communication or I/O modules)
Memory Card Slot: 1 slot for a CompactFlash card containing the system firmware and parameters
Integrated Safety Functions: Supports Safety Integrated basic functions (such as Safe Torque Off, Safe Stop 1) and extended functions via license
Protection Class: IP20 (must be installed inside an enclosure)

Product Advantages

A major advantage of the 6SL3040-1MA01-0AA0 is its Multi-Axis Control Capability, allowing a single central unit to handle up to 6 servo axes or vector axes, which minimizes hardware costs and optimizes synchronization between axes. The Integrated PROFINET Interface provides high-speed deterministic communication for motion control (IRT) while simplifying cabling through standard Ethernet infrastructures.

The system relies on the DRIVE-CLiQ Interface for automatic component recognition, drastically reducing commissioning times because the control unit automatically detects the connected motor and electronic nameplate parameters. Additionally, its Flexible Scalability means you can easily expand your system with additional functional modules or activate advanced safety software licenses without changing the core hardware.

Important Considerations and Precautions

When installing and engineering with the CU320-2 PN, it is imperative to order the CompactFlash Card Separately, as the unit will not boot or function without the firmware card inserted. EMC-Compliant Wiring is critical; PROFINET and DRIVE-CLiQ cables must be routed away from high-voltage motor cables to avoid signal corruption and intermittent communication dropouts.

The $24 \text{ VDC}$ power supply must be stable, and proper Grounding and Bonding of the CU320-2 housing to the control cabinet backplane is essential to shield the processor from electrical noise. If utilizing Safety Integrated Functions, a thorough safety validation must be conducted in compliance with EN ISO 13849-1 standards. Finally, make sure the Ambient Temperature Limits ( $0\text{°C}$ to $55\text{°C}$ ) are respected, ensuring that the cooling slots on the unit are never covered or obstructed within the electrical enclosure.

Product Applications

The Siemens 6SL3040-1MA01-0AA0 is widely deployed in high-performance, multi-axis industrial manufacturing environments.

Printing and Paper Machinery: Managing precise synchronization and web tension control between multiple rollers.
Packaging Technology: Powering high-speed pick-and-place mechanisms, wrapping machines, and continuous cartoning systems.
Metal Processing and Wire Drawing: Controlling multiple winding and uncoiling axes that require precise vector torque regulation.
Plastics Industry: Driving the coordinated axes of injection molding machines and blow molding equipment.
Automotive Assembly: Operating synchronized lifting stations, linear gantry systems, and robotic cell auxiliary drives.
