RWR462.10 SIEMENS

RWR462.10 Siemens Basis unit

Brand：SIEMENS Model number：RWR462.10

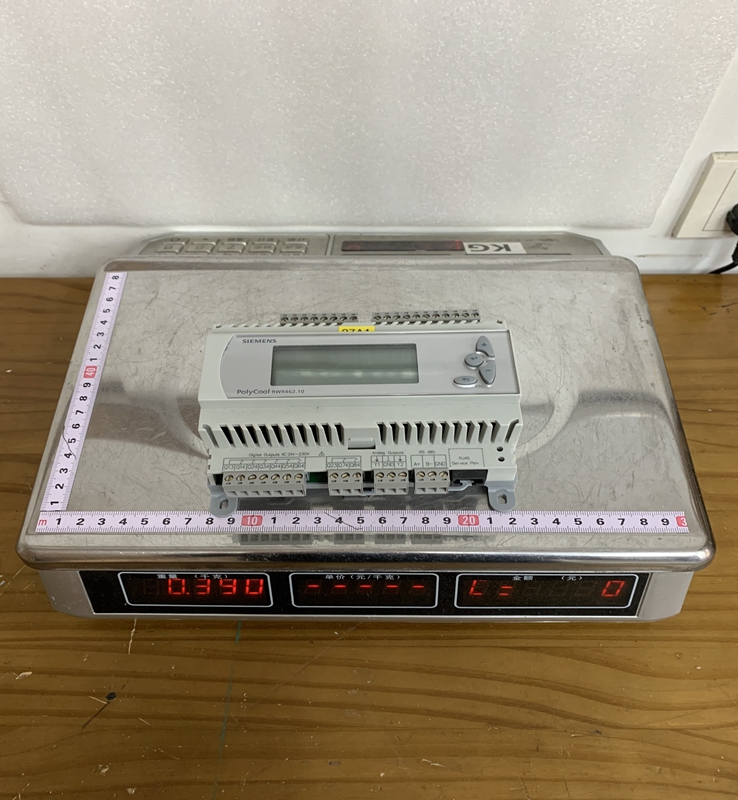

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The RWR462.10 is an electronic universal controller that operates as a standalone unit or within a broader control network. It is engineered with pre-programmed standard applications but offers high flexibility through manual parameterization. The device features a clear user interface with a backlit liquid crystal display and a rotary knob for intuitive navigation through menus. It is designed for mounting on a standard DIN rail and is housed in a robust plastic casing suitable for control panel installations. The controller utilizes a sophisticated PID (Proportional-Integral-Derivative) control algorithm to maintain setpoints with high precision.

Product Parameters

Operating Voltage: $24 \text{ VAC}$ at $50/60 \text{ Hz}$ .
Power Consumption: Approximately $7 \text{ VA}$ .
Universal Inputs: 2 inputs (X1, X2) supporting LG-Ni1000, Pt1000, T1, or $0-10 \text{ VDC}$ signals.
Digital Inputs: 2 potential-free contact inputs (D1, D2) for status signaling or remote control.
Analog Outputs: 2 modulating outputs (Y1, Y2) providing $0-10 \text{ VDC}$ to actuators or frequency converters.
Relay Outputs: 2 switching outputs (Q1, Q2) rated for up to $4 \text{ A}$ at $250 \text{ VAC}$ .
Communication: Standard Konnex (KNX) bus compatibility (depending on the specific integration module).
Protection Class: IP20 (when installed correctly in a cabinet).
Ambient Operating Temperature: $0\text{°C}$ to $50\text{°C}$ ( $32\text{°F}$ to $122\text{°F}$ ).

Product Advantages

One of the primary advantages of the RWR462.10 is its Versatile Application Selection. With a single hardware unit, users can select from numerous pre-defined plant types, significantly reducing the learning curve and commissioning time. The PID Control Logic provides excellent stability, ensuring that mechanical equipment like valves and dampers are not subject to excessive wear from hunting or oscillation.

The Backlit Display and Rotary Knob make onsite adjustments simple even in poorly lit mechanical rooms. Furthermore, its Modular Connectivity allows it to be integrated into building management systems (BMS), providing operators with remote visibility and data logging capabilities. The inclusion of Universal Inputs means that it can interface with a wide variety of third-party sensors, making it an ideal choice for retrofitting older HVAC systems.

Important Considerations and Precautions

When installing the RWR462.10, ensuring a Stable $24 \text{ VAC}$ Power Supply is paramount; fluctuations outside the specified tolerance can cause the microprocessor to reset or behave erratically. Sensor Lead Length should be kept within the manufacturer's recommendations to avoid resistance-induced errors, especially when using Pt1000 or Ni1000 RTDs.

It is vital to Avoid High-Voltage Interference by routing signal cables separately from power cables to prevent electromagnetic noise from disrupting the analog inputs. During the Configuration Process, users must ensure that the selected application matches the physical wiring of the plant, as incorrect settings can lead to equipment damage (e.g., freezing a coil due to incorrect pump logic). Finally, always ensure the Relay Ratings are not exceeded; if controlling heavy motors or large electric heaters, an intermediate contactor must be used to protect the internal relay of the RWR462.10.

Product Applications

The Siemens RWR462.10 is widely applied in commercial and industrial HVAC scenarios.

Air Handling Units (AHU): Controlling supply air temperature and humidity through the modulation of heating coils, cooling coils, and humidifiers.
Chilled Water Plants: Managing secondary pump speeds and bypass valves to maintain constant differential pressure or temperature.
Boiler Systems: Regulating mixing valves to ensure consistent hot water supply temperatures based on outdoor air compensation.
Refrigeration Control: Monitoring and controlling pressure or temperature in industrial cooling applications and cold storage rooms.
Pressure Regulation: Managing fan speeds in cleanrooms or laboratory environments to maintain specific room-to-hallway pressure differentials.
