6ES7322-5HF00-0AB0 SIEMENS

6ES7322-5HF00-0AB0 Siemens Basis unit

Brand：SIEMENS Model number：6ES7322-5HF00-0AB0

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

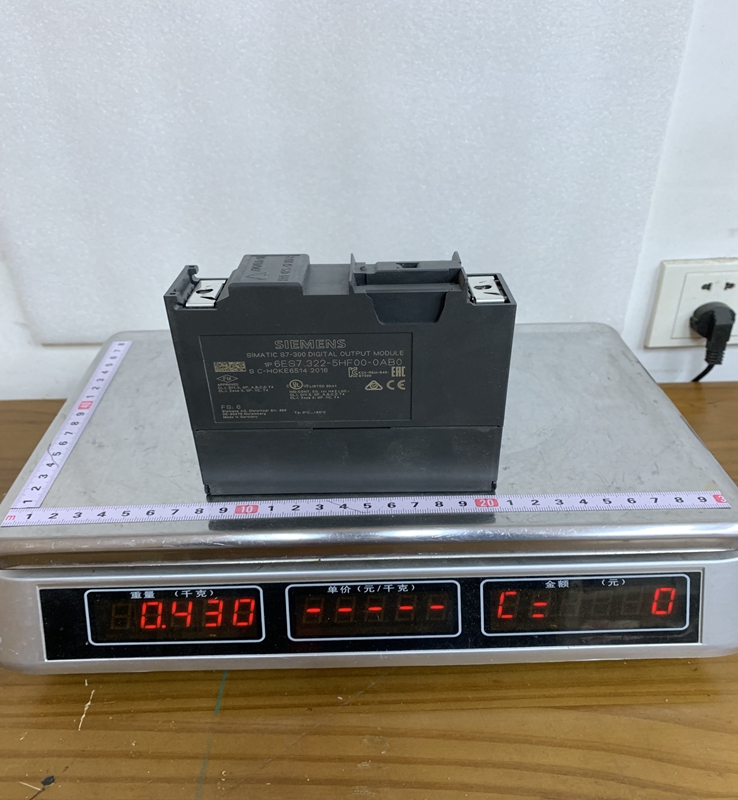

Product Dimensions：

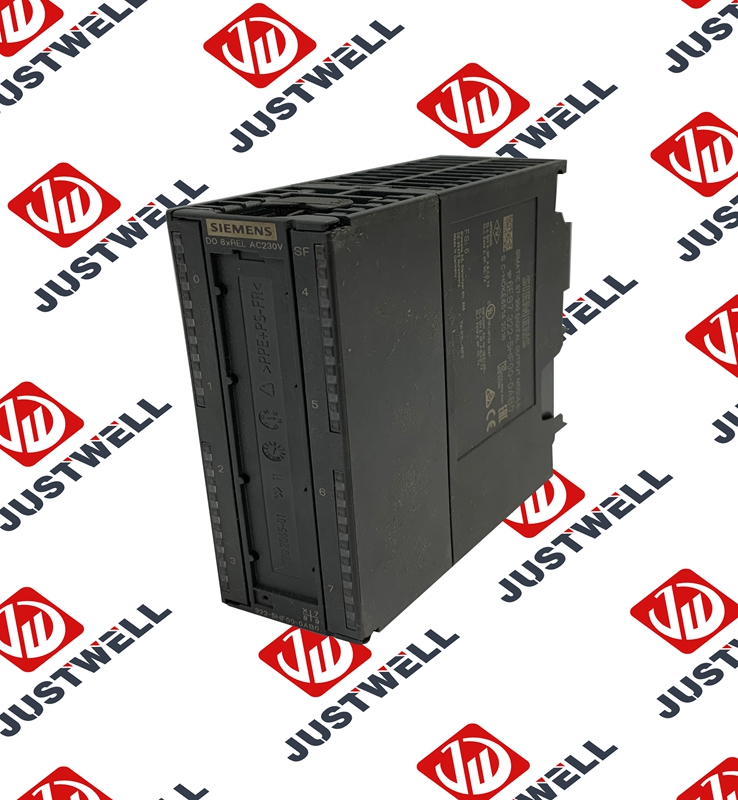

The 6ES7322-5HF00-0AB0 is a 40-pin digital output module that features 8 relay outputs. Unlike standard transistor modules, these relay outputs allow for the switching of both AC and DC loads with relatively high current capacities. Each output is galvanically isolated from the backplane bus and, significantly, the outputs are isolated from each other in groups, providing high flexibility for multi-phase or multi-voltage circuit designs. The module includes integrated diagnostics and green LED indicators for each channel to display the switching status, as well as a red "SF" (System Fault) LED for error reporting.

Product Parameters

Number of Outputs: 8 digital outputs (Relay contacts).
Load Voltage: Supports both 24 VDC to 120 VDC and 24 VAC to 230 VAC.
Continuous Thermal Current: Up to 5 A per output (depending on temperature and total module load).
Isolation: 1500 VAC between channels and the backplane; 1500 VAC between individual groups.
Switching Frequency: Maximum 2 Hz for resistive loads; 0.5 Hz for inductive loads.
Service Life of Contacts: Approximately 100,000 operations at rated load (mechanical life up to 10 million cycles).
Short-circuit Protection: None integrated; external fusing is required for each channel.
Front Connector: Requires a 40-pin front connector (sold separately).
Current Consumption: Typically 160 mA from the backplane bus (5 VDC).

Product Advantages

A primary advantage of the 6ES7322-5HF00-0AB0 is its High Switching Capacity. Being able to handle up to 5 A per channel allows it to drive larger solenoids, contactors, and small motors directly without needing interposing relays. The Multi-Voltage Capability is another major benefit; since the outputs are dry contacts, a single module can control a mix of 24 VDC sensors and 230 VAC indicators simultaneously across different groups.

The Advanced Diagnostics features set this module apart from standard relay cards, as it can detect missing supply voltages or internal module errors. Additionally, the S7-300 Form Factor ensures seamless integration into existing legacy systems, providing a reliable path for maintaining or expanding older control cabinets without a full system overhaul.

Important Considerations and Precautions

When installing the 6ES7322-5HF00-0AB0, the most critical precaution is External Protection. Because the module does not have internal short-circuit protection, you must install fast-acting fuses or circuit breakers for each output to prevent welding the relay contacts in the event of a field fault. Inductive Load Handling is also vital; when switching coils or motors, it is highly recommended to install external suppressors (such as RC elements for AC or freewheeling diodes for DC) to prevent contact erosion caused by high-voltage flyback.

Users must also observe Derating Curves; if all 8 channels are carrying high current simultaneously in a high-temperature environment, the maximum allowable current per channel decreases to prevent overheating the module. Finally, ensure that the 40-pin Front Connector is wired correctly, as the high-density pinout can lead to cross-wiring errors if not carefully labeled and checked against the Siemens wiring schematic.

Product Applications

The Siemens 6ES7322-5HF00-0AB0 is commonly used in industrial environments where heavy-duty switching is required.

Power Plant Control: Operating high-voltage switchgear actuators and heavy-duty alarm sirens.
Water Treatment: Controlling 230 VAC chemical dosing pumps and motorized valves directly from the PLC.
Building Automation: Managing lighting circuits and HVAC dampers where mixed AC/DC voltages are present in the same control panel.
Machine Tooling: Interfacing with hydraulic solenoids and motor starters that require more current than standard electronic outputs can provide.
Food and Beverage: Controlling heating elements in industrial ovens or packaging machines where high-cycle reliability is needed.

6ES7972-0CB20-0XA0 SIEMENS

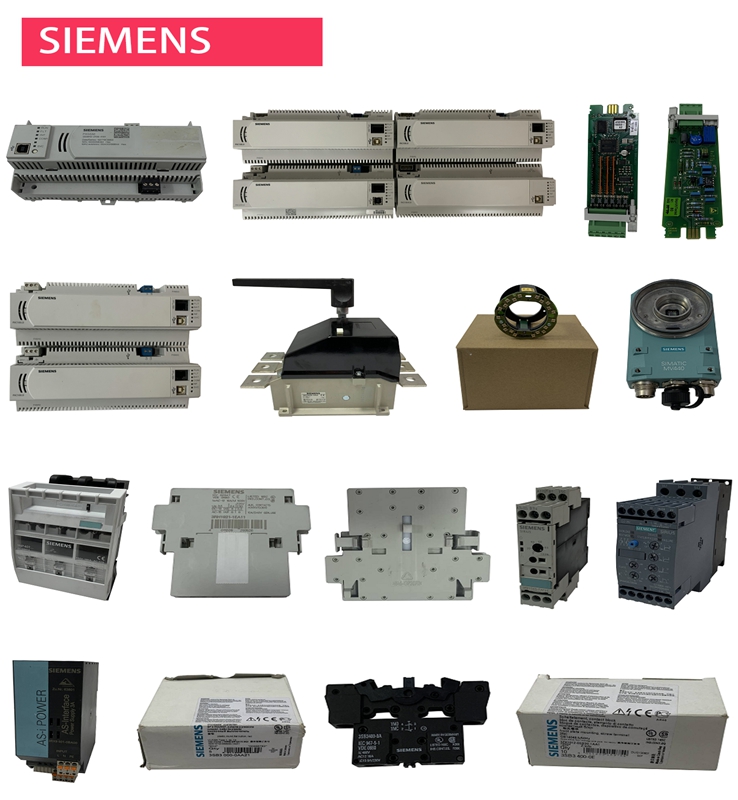

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
