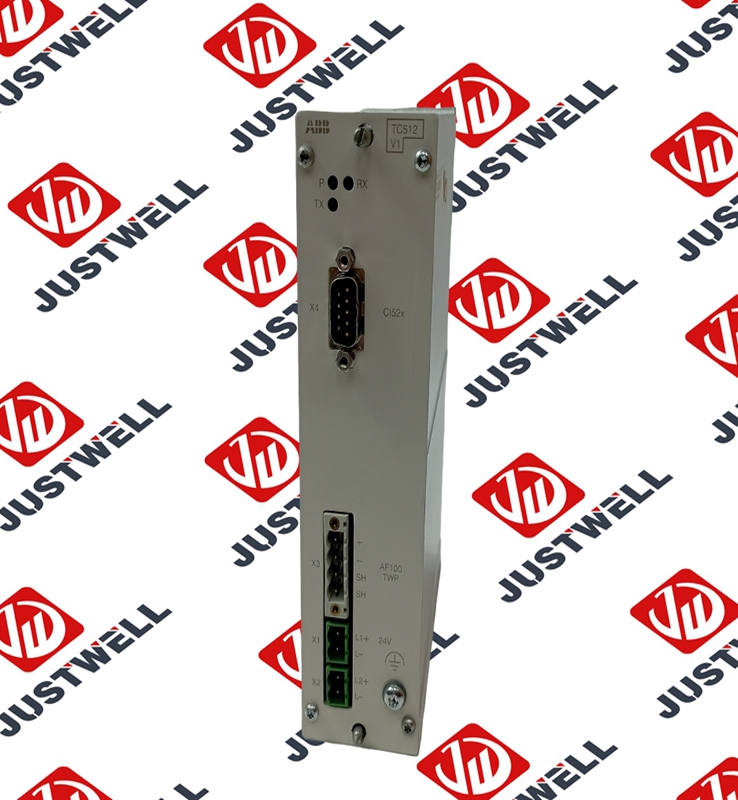

TC512V1 3BSE018059R1 ABB Bailey

Product Dimensions：

The TC512V1 is a specialized modem designed to convert internal controller signals into RS485 differential signals suitable for transmission over twisted-pair cabling. It is primarily used with Advant Controller 400 series (such as AC410 and AC450) and S800 I/O systems. Its main role is to facilitate the Advant Fieldbus 100 communication, which is a high-performance plant-wide bus used for time-critical data exchange between controllers and I/O stations. The unit is housed in a robust casing suitable for mounting within control cabinets and provides optical isolation to protect sensitive control logic from external electrical surges.

Product Parameters

• Product ID: 3BSE018059R1

• ABB Type Designation: TC512V1

• Communication Protocol: Advant Fieldbus 100 (AF100) / RS485

• Interface Type: RS485 Twisted Pair

• Baud Rate Support: Standard AF100 speeds (typically up to $1.5 \text{ Mbit/s}$)

• Power Supply: Typically $24 \text{ VDC}$ (range of $19.2 \text{V}$ to $30 \text{V}$)

• Power Consumption: Approximately $2 \text{W}$

• Operating Temperature: $-20\text{°C to } +60\text{°C}$

• Protection Class: IP20 (intended for cabinet mounting)

• Dimensions: Width $148.5 \text{ mm}$, Height $45 \text{ mm}$, Depth $117 \text{ mm}$

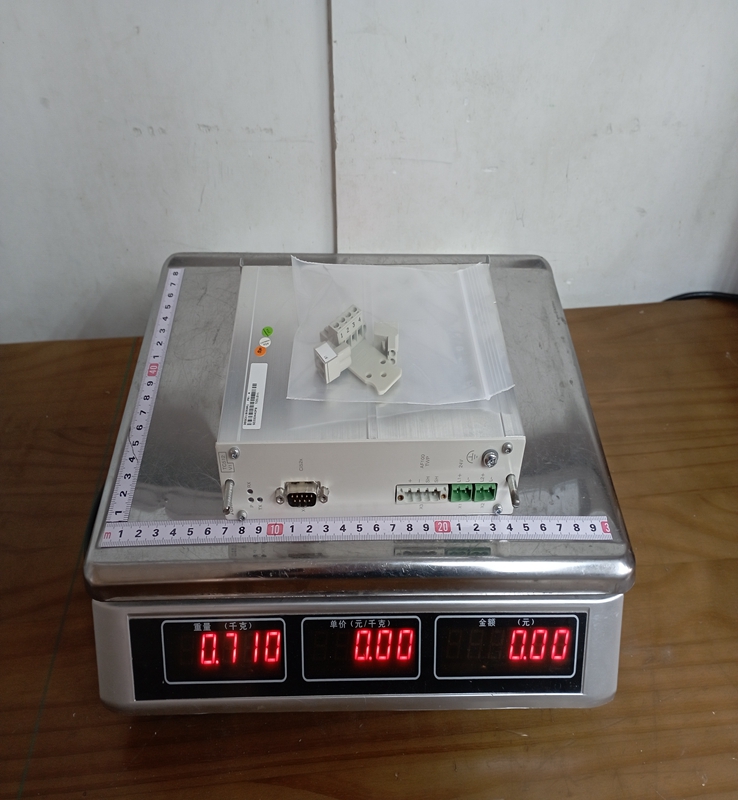

• Weight: $0.73 \text{ kg}$ ($1.6 \text{ lbs}$)

• Origin: Sweden

Product Advantages

• High Noise Immunity: By using differential RS485 signaling over twisted-pair cables, the TC512V1 effectively cancels out electromagnetic interference (EMI), which is common in heavy industrial environments.

• Deterministic Communication: It supports the AF100 protocol, ensuring that time-critical process data is delivered with high predictability and reliability.

• Galvanic Isolation: The modem provides electrical isolation between the fieldbus and the internal system logic, preventing ground loops and protecting equipment from transient voltages.

• Seamless Integration: As an OEM component for the Advant OCS system, it requires no complex third-party drivers and is fully recognized by ABB diagnostic tools.

• Robust Design: Built to industrial standards, it features a long service life and high Mean Time Between Failures (MTBF).

Important Considerations and Precautions

• Termination Requirements: Proper termination resistors must be applied at both ends of the RS485 twisted-pair segment to prevent signal reflections and data corruption.

• Cable Selection: Only high-quality shielded twisted-pair (STP) cables meeting ABB’s AF100 specifications should be used to ensure the maximum rated distance and speed.

• Mounting Orientation: Ensure adequate ventilation space around the module within the cabinet to prevent overheating during continuous operation.

• Hot Swapping: While many ABB modules support hot configuration, always verify the specific controller's power status and safety protocols before connecting or disconnecting communication cables.

• Grounding: The shield of the twisted-pair cable must be grounded correctly at designated points to maintain electromagnetic compatibility (EMC) integrity.

Product Applications

The TC512V1 is predominantly utilized in large-scale industrial automation projects where the Advant Fieldbus 100 architecture is deployed. Common applications include:

• Power Generation: Connecting distributed control systems (DCS) in thermal, hydro, or nuclear power plants to ensure synchronized control of turbines and boilers.

• Oil and Gas: Linking remote I/O stations on offshore platforms or refineries to central Advant controllers over significant distances.

• Chemical Processing: Managing complex process loops by providing a reliable data link between S800 I/O clusters and AC450 controllers.

• Pulp and Paper: Supporting high-speed data acquisition and motor control across large-scale paper machine production lines.

• Metals and Mining: Facilitating communication in harsh, high-vibration environments typical of smelting and ore processing facilities.
