NDCU-12K ABB Bailey

Product Dimensions：

The NDCU-12K is a modular control assembly that integrates the control board and necessary housing to interface with the drive hardware. It acts as the command center for the inverter, processing feedback from the motor and executing Direct Torque Control (DTC) logic. This unit is essential for coordinating the power electronics and ensuring that the motor operates according to the setpoints provided by the higher-level automation system. It is designed to handle sophisticated communication tasks, allowing the drive to be part of a larger networked industrial environment.

Product Parameters

• Product Type: Drive Control Unit (Inverter Control)

• Compatibility: Specifically designed for ABB ACS800 series industrial drives

• Processing Architecture: High-speed digital signal processing for Direct Torque Control (DTC)

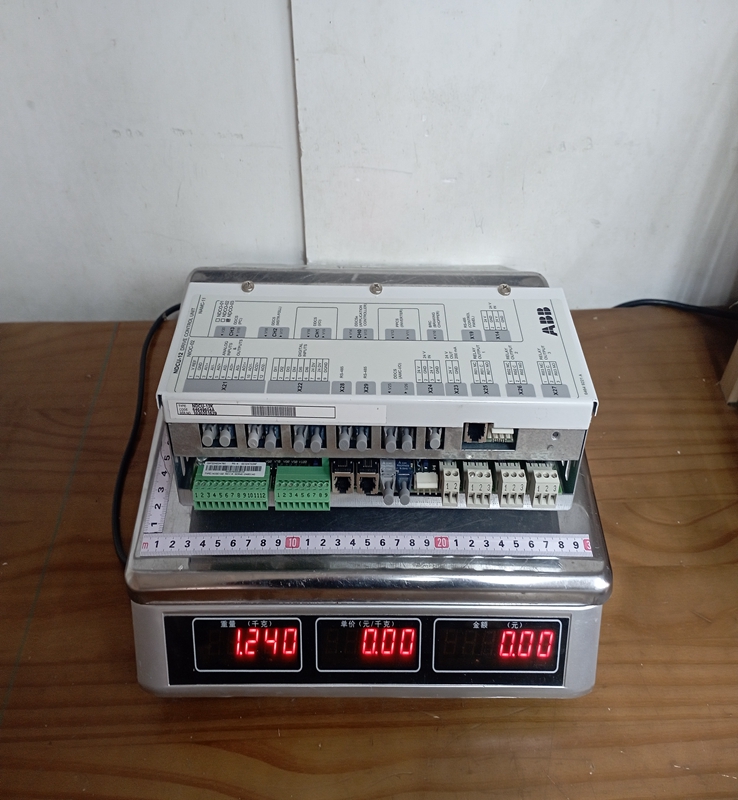

• Dimensions: Approximately 10.2 cm x 25.4 cm x 7.6 cm (4.0 in x 10.0 in x 3.0 in)

• Weight: Approximately 1.3 kg (2.8 lbs)

• Supply Voltage: Typically derived from the drive's internal power supply unit or the backplane

• Mounting: Specifically designed for internal mounting within the drive cabinet or control section

• Communication Interface: Supports various fieldbus adapter modules (such as PROFIBUS, DeviceNet, or EtherNet/IP) and fiber optic links for internal drive-to-drive or drive-to-PC communication

Product Advantages

• High-Precision Control: Utilizing Direct Torque Control (DTC) technology, the unit provides exceptionally fast response times and precise regulation of motor speed and torque without the need for an encoder in many applications.

• Modular Reliability: The unit is built to industrial standards, offering high resistance to electromagnetic interference (EMI) and vibration, which is crucial for power electronics environments.

• Advanced Diagnostics: It features comprehensive self-diagnostic capabilities that help identify internal faults or external load issues, significantly reducing troubleshooting time.

• Seamless System Integration: When used in a Bailey or general ABB DCS environment, it allows for deep integration, enabling operators to monitor drive health and performance metrics directly from the control room.

• Efficient Communication: The dual-channel or multi-port design allows for simultaneous communication with local control panels and remote supervisory systems.

Important Considerations

• Static Sensitivity: The NDCU-12K contains highly sensitive electronic components. Always use a grounded ESD (Electrostatic Discharge) wrist strap when handling the unit to avoid permanent damage.

• Firmware Compatibility: When replacing a unit, it is vital to ensure that the firmware version loaded on the NDCU-12K matches the requirements of the drive power stage and the overall system configuration.

• Power-Off Installation: Never install or remove the control unit while the drive system is energized. Wait at least 5 minutes after disconnecting power to allow internal capacitors to discharge to safe levels.

• Fiber Optic Handling: If the unit uses fiber optic links for communication, ensure the cables are not bent beyond their minimum radius and that the connectors are kept clean of dust and oil.

• Environmental Limits: Ensure the drive cabinet's cooling system is functional, as excessive heat can shorten the lifespan of the control electronics or lead to thermal trips.

Product Applications

The NDCU-12K is employed in demanding industrial sectors where high-power motor control is required.

• Power Generation: Used in Bailey-integrated systems to control large pumps, fans, and coal mills where precision and uptime are critical.

• Oil and Gas: Controlling compressors and transport pumps in refineries and pipelines, often integrated into a centralized control architecture.

• Pulp and Paper: Managing the complex synchronization required for paper machines and large-scale processing equipment.

• Metals and Mining: Providing the high starting torque and robust control needed for crushers, conveyors, and rolling mills.

• Water and Wastewater: Regulating high-capacity pumps to maintain pressure and flow in municipal distribution and treatment systems.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
