TA524 1SAP180600R0001 ABB Bailey

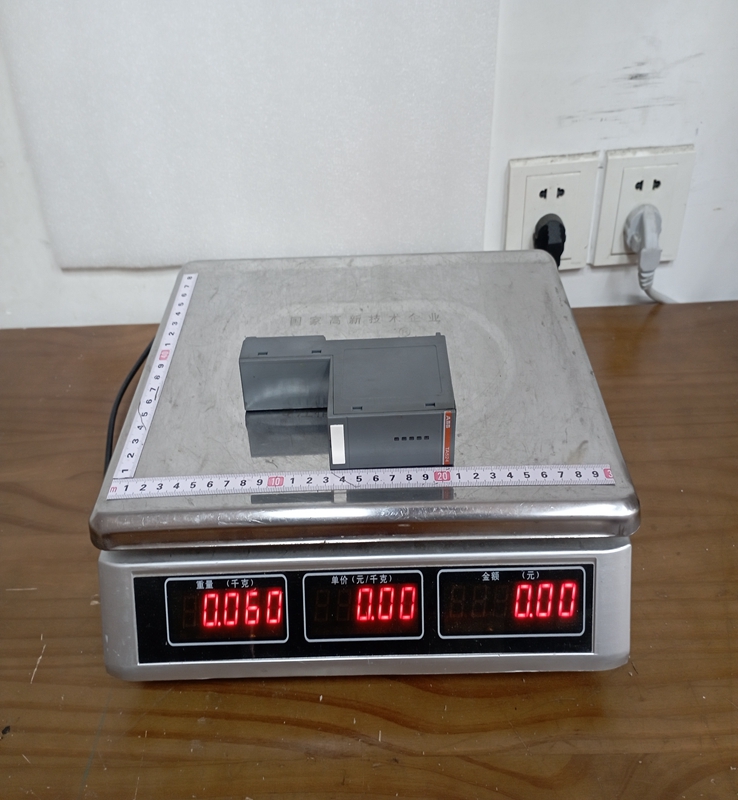

Product Dimensions：

The TA524 is a spring terminal block featuring a 10-position (10-pole) configuration. It belongs to the connection accessories category of the ABB PLC portfolio. Unlike traditional screw terminal blocks, the spring-clamp design of the TA524 ensures consistent contact force on the wires, reducing the risk of loose connections caused by mechanical vibration or thermal expansion. It is designed to be plugged directly into compatible AC500 I/O modules, allowing for clean, modular, and organized control cabinet layouts.

Product Parameters

• Product Brand Name: ABB

• Product Type: Terminal Block (Spring-type)

• Part Number (ID): 1SAP180600R0001

• Model Designation: TA524

• Number of Positions (Poles): 10 pins

• Connection Type: Spring cage / Spring clamp connection

• Pitch (Spacing): Standard pitch designed for AC500 module spacing ($5.08 \text{ mm}$ typical for this class of ABB block)

• Wire Cross-Section Compatibility: Typically accepts flexible and solid wires ranging from $0.08 \text{ mm}^2$ to $2.5 \text{ mm}^2$ (roughly $28$ to $12 \text{ AWG}$)

• Net Weight: Approximately $0.015 \text{ kg}$ (very lightweight, optimized for high-density modular attachment)

• RoHS Status: Compliant with EU Directive 2011/65/EU regarding hazardous substances

Product Advantages

A major advantage of the TA524 is its Vibration-Proof Spring Connection. Because it uses a spring-clamp mechanism instead of a screw, it maintains continuous tension on the wire, completely eliminating the need to retighten terminals over time due to machine vibration. The Time-Saving Installation is another benefit; wires can be stripped and inserted directly into the clamp using a simple tool (or toolless for solid wires), speeding up the initial cabinet assembly.

The Modular Maintenance capability allows service technicians to unplug the entire terminal block with its wiring intact if an I/O module needs replacement, minimizing downtime and preventing rewiring errors. Additionally, its High Contact Reliability prevents micro-arcs and high resistance, ensuring pristine signal integrity for sensitive analog or high-speed discrete data.

Important Considerations and Precautions

When deploying the TA524, it is essential to follow correct Wire Stripping Length guidelines; stripping too much insulation can expose bare wire and cause short circuits, while stripping too little can cause the spring clamp to grip the insulation rather than the conductor, leading to an open circuit.

Technicians must use the Correct Tool Size (typically a small flat-blade screwdriver) to open the spring cage during wiring to avoid damaging the plastic housing or internal metal clamp. Although the block is designed for rugged industrial use, it has an IP20 open-type rating when mated, meaning it must be installed inside a suitable NEMA or IP-rated electrical enclosure to protect it from dust, moisture, and conductive contaminants.

Finally, ensure that the total Current and Voltage Limits of the connected I/O module are respected, as the terminal block is rated to handle the maximum capacities of the companion AC500 modules but should not be subjected to overcurrent conditions that could melt the plastic housing.

Product Applications

The ABB TA524 terminal block is used anywhere the AC500 PLC platform is deployed, functioning as the primary interface for field sensors and actuators.

• Factory Automation: Connecting proximity switches, limit switches, and solenoids on automated assembly lines and conveyor systems.

• Process Control Systems: Interfacing with temperature, pressure, and flow transmitters in water treatment plants and chemical processing facilities.

• Machine Building (OEMs): Providing a compact and vibration-resistant wiring solution for specialized packaging machinery, textile machines, and printing presses.

• Renewable Energy: Used in the control panels of wind turbine pitch systems and solar tracking stations where continuous vibration is a factor.

• Building Automation: Connecting HVAC control points, lighting controllers, and energy monitoring infrastructure to the central PLC network.
