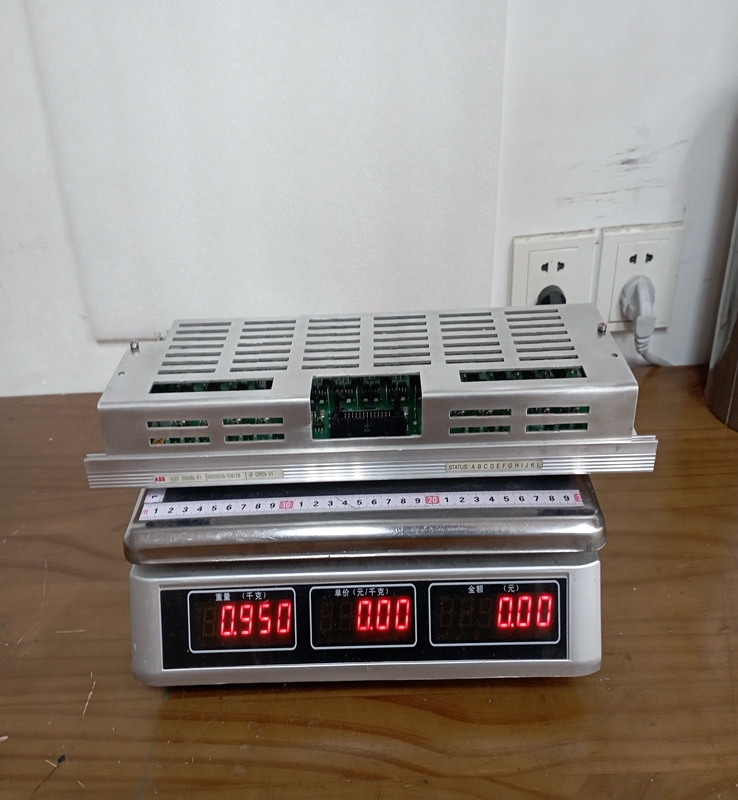

HIEE300686R1 ABB Bailey

Product Dimensions：

The HIEE300686R1 is designed to operate as a core internal component within ABB's high-power control cabinets. It acts either as a localized power distribution board that regulates stable DC voltages for sensitive control microprocessors, or as an interface card that processes gate firing pulses for heavy-duty thyristor bridges. Because it is engineered for critical infrastructure, the board is manufactured using premium, industrial-grade components designed to minimize thermal degradation and tolerate significant electrical noise. It interfaces with the rest of the control system via specialized multi-pin backplane connectors or ribbon cables, ensuring high-speed signal propagation.

Product Parameters

• Brand: ABB

• Part Number: HIEE300686R1

• Product Type: Power Supply Board / Internal Control Module

• Input Voltage Compatibility: Typically accepts localized cabinet voltages (such as $24 \text{ VDC}$ or specific AC auxiliary inputs) and steps them down or regulates them.

• Output Voltages: Provides highly stable, filtered low-voltage DC outputs (such as $\pm 15 \text{ VDC}$, $+5 \text{ VDC}$) to power adjacent control electronics.

• Cooling Requirement: Convection cooled, but relies on the overall cabinet ventilation system to maintain safe operating temperatures.

• Coating: Typically features conformal coating to protect the surface-mount components from moisture, conductive dust, and chemical contaminants.

• Mounting Style: Plug-in card design meant for secure rack mounting or chassis installation with retaining screws.

Product Advantages

A primary advantage of the HIEE300686R1 is its Exceptional Voltage Regulation. In power generation systems, even minor fluctuations in control voltage can cause synchronization errors; this board filters out massive external electrical noise to deliver clean power. The Industrial-Grade Reliability is another standout feature, built to match the decades-long operational lifespan expected of power plant equipment.

The Built-in Circuit Protection safeguards downstream components from over-voltage, over-current, and short-circuit conditions, isolating faults before they can damage more expensive control processors. Furthermore, its Modular Form Factor enables rapid hot-swapping or straightforward physical replacement during scheduled maintenance windows, reducing the Mean Time to Repair (MTTR).

Important Considerations and Precautions

When handling or installing the HIEE300686R1, Electrostatic Discharge (ESD) Protection is absolutely paramount. Touching the board without a grounded wrist strap can cause microscopic damage to the integrated circuits, leading to premature field failure. Because this board is often tied to high-power excitation systems, Complete System De-energization and lock-out/tag-out procedures must be strictly enforced before removing or inserting the module to prevent fatal electrical shocks or severe arcing.

Technicians must verify that all Multi-pin Edge Connectors are completely clean and free of oxidation before insertion; a loose or dirty pin can result in intermittent control signals that may trip the entire generator. Finally, given that this is a specialized legacy component, always ensure that any replacement board has the exact same Firmware Hardware Revision suffix to prevent compatibility conflicts with the main system controller.

Product Applications

The ABB HIEE300686R1 is primarily found in heavy energy sectors and large-scale industrial plants.

• Power Generation Facilities: Integrated within ABB UNITROL excitation systems to regulate the magnetic fields of large synchronous generators in hydroelectric, thermal, and nuclear power plants.

• Heavy Electric Motor Drives: Used in the control circuitry for massive variable speed drives that power industrial compressors, pumps, and fans in the oil and gas industry.

• Steel and Metal Mills: Providing stable control power for high-power rectifiers used in electric arc furnaces and rolling mill drives.

• Marine Propulsion Systems: Utilized in the onboard power management and electrical propulsion drive systems of large vessels and cruise ships.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

ABB SDCS-PIN-H11A  3ADT319200R1501

ABB SDCS-PIN-3A 3ADT312200R1

ABB AMC-DC  3ADT309900R1

ABB SDCS-CON-2 3ADT309600R1

ABB SCYC51220

ABB SDCS-CON-2A  3ADT309600R0002

ABB ZCON-12

ABB SDCS-PIN-41A  3BSE004939R1

ABB SDCS-COM-81  3ADT314900R1002

ABB SDCS-COM-1  3BES005028R1

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China       Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online servi
