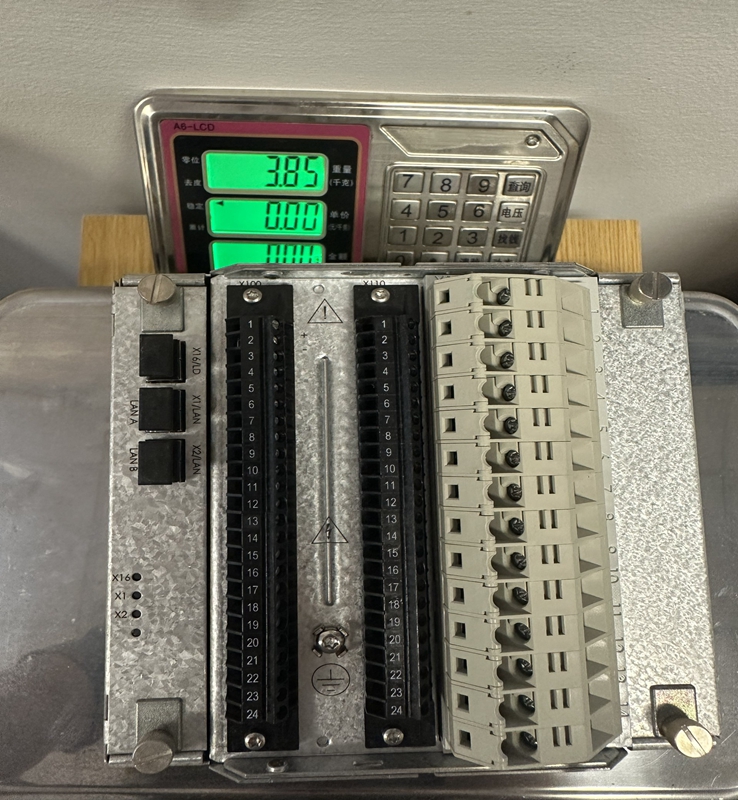

RED615E-1G ABB Bailey

Product Dimensions：

The RED615E-1G is a unit protection relay designed for high-speed, absolute selective protection of distribution networks. It utilizes a phase-segregated line differential protection algorithm to detect faults within the protected line zone instantly, ignoring external out-of-zone faults. The module features full support for the IEC 61850 standard for communication in substations, enabling seamless horizontal GOOSE (Generic Object Oriented Substation Events) messaging for fast inter-relay blocking and interlocking functions. The physical enclosure is a robust, plug-in design that allows for quick installation and removal, minimizing maintenance downtime.

Product Parameters

• Product Series: Relion 615 Series (RED615)

• Functional Configuration: Configuration E (Advanced Line Differential Protection)

• Hardware Revision: Revision G (as indicated by the "-1G" suffix)

• Standard Protocols: Fully supports IEC 61850 Editions 1 and 2, Modbus, DNP3, and IEC 60870-5-103

• Communication Interface: Ethernet-based ports (RJ45 or LC fiber optic) with support for redundant topologies like HSR (High-availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol)

• Analog Inputs: Configured with multi-channel current transformers (CT) and voltage transformers (VT) for comprehensive power quality and directional protection monitoring

• Rated Frequency: Adaptable for both $50 \text{ Hz}$ and $60 \text{ Hz}$ power systems

• Binary I/O: Equipped with a dense array of programmable binary inputs and binary outputs for interlocking and tripping logic

• Power Supply: Wide range universal power supply options, typically covering $24-60 \text{ VDC}$ or $100-240 \text{ VAC} / 110-250 \text{ VDC}$

Product Advantages

A major advantage of the RED615E-1G is its High-Speed Phase-Segregated Line Differential Protection, which ensures rapid and highly selective tripping even during evolving faults or weak-feed conditions. The Integrated Redundant Communication capabilities (HSR/PRP) ensure that critical protection communication is never lost, maintaining system stability during network fiber breaks.

The Web-Based HMI (Human-Machine Interface) allows engineers to securely configure, view event logs, and analyze disturbance records using a standard web browser without requiring proprietary software. Additionally, the Modular Plug-In Design allows the entire relay unit to be withdrawn from its case without disturbing the field wiring, facilitating ultra-fast unit testing or replacement.

Important Considerations and Precautions

When deploying the RED615E-1G, managing the Communication Link Latency between the local and remote ends of the line differential channel is paramount; excessive asymmetrical delay on the fiber optic link can cause false differential current calculations and lead to nuisance tripping. During commissioning, technicians must strictly verify the CT Polarity across both ends of the protected line to ensure the differential algorithm correctly distinguishes between internal and external faults.

Because the unit controls high-energy trip circuits, never open the Secondary CT Circuits while the primary system is energized, as this generates lethal voltages across the CT terminals. Furthermore, ensure that the configuration files managed via PCM600 (ABB Protection and Control IED Manager) match the physical hardware configuration exactly; applying a mismatched parameter set can disable vital protection functions.

Product Applications

The ABB RED615E-1G is used in advanced power distribution networks where high reliability and selective fault isolation are mandatory.

• Utility Substations: Protecting critical overhead lines and underground cables in mesh or ring topologies where overcurrent relays cannot provide selective protection.

• Industrial Power Plants: Safeguarding feeder cables connecting large-scale chemical plants, refineries, or steel mills to the main utility grid.

• Renewable Energy Integration: Managing the grid-connection lines for wind farms and large solar fields, where bidirectional fault currents confuse traditional protection systems.

• Railway Power Distribution: Providing high-speed protection for traction power feeders that experience rapidly changing load dynamics.

• Data Center Microgrids: Ensuring seamless power transfer and instantaneous isolation of faults in high-availability data center power loops.
