REM545BM223AAAA ABB Bailey

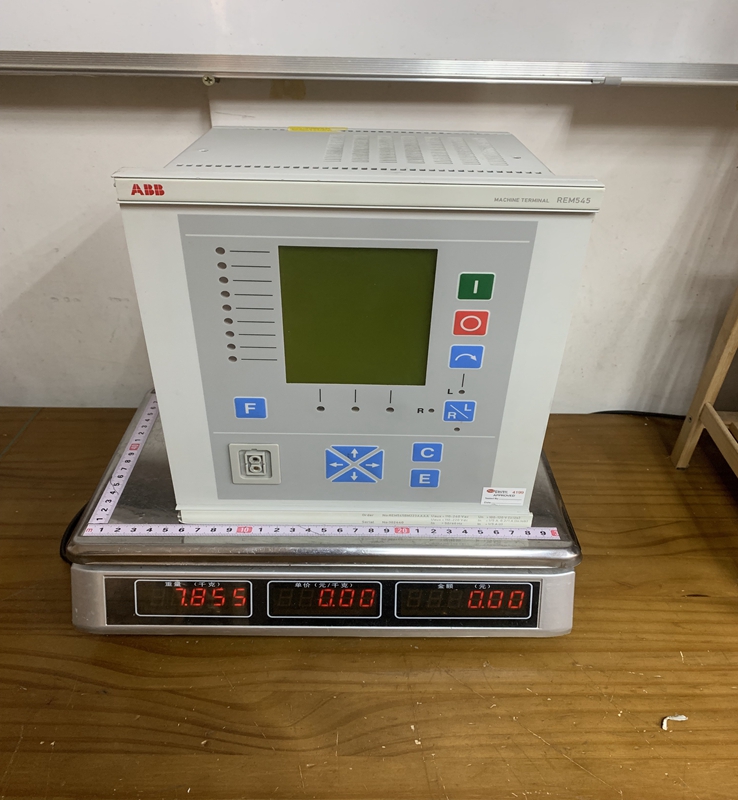

Product Dimensions：

The REM545 is a numerical multifunctional relay that integrates a wide array of protection functions into a single hardware unit. The "BM223AAAA" suffix defines a specific configuration regarding the hardware interface, power supply voltage, and communication protocols. This relay is part of the ABB Bailey evolution, bridging the gap between traditional power system protection and modern automated control systems. It typically features a liquid crystal display (LCD) for local human-machine interface (HMI) tasks and specialized push-buttons for motor control operations like starting and stopping.

Product Parameters

The technical specifications of the REM545BM223AAAA reflect its capability to handle complex power system data:

• Rated Frequency: Operates at $50 \text{ Hz}$ or $60 \text{ Hz}$ systems.

• Power Supply: The "BM" designation typically indicates a specific wide-range power supply, often supporting $110-240 \text{ VAC/VDC}$ or a specific DC voltage range.

• Analog Inputs: Equipped with multiple current transformer (CT) inputs for phase current and residual current, as well as voltage transformer (VT) inputs for voltage monitoring.

• Binary Inputs and Outputs: Includes a high density of digital inputs for status monitoring and heavy-duty power outputs for trip circuits and signaling.

• Communication Protocols: Supports standard industrial protocols such as Modbus RTU, IEC 60870-5-103, and often SPA bus or LON bus depending on the specific communication card installed.

• Ingress Protection: The front panel is typically rated at IP54 when flush-mounted, providing protection against dust and splashed water.

Product Advantages

One of the primary advantages of the REM545 is its Multifunctional Integration. By combining protection functions (like thermal overload, stall protection, and phase reversal) with control functions (like motor start-up supervision), it reduces the need for multiple discrete components.

The Advanced Thermal Model is another standout benefit; it utilizes a complex mathematical algorithm to calculate the motor’s thermal stress accurately, preventing premature insulation failure while avoiding unnecessary tripping. Furthermore, its Flexible Configuration allows engineers to enable or disable specific functions via software, making it adaptable to different motor sizes and types. The inclusion of Disturbance Recording allows for detailed post-fault analysis, capturing waveforms that help identify the root cause of electrical issues.

Important Considerations and Precautions

When deploying the ABB REM545BM223AAAA, several critical precautions must be observed. First, Current Transformer (CT) Secondary Circuits must never be opened while the primary circuit is energized. This can lead to extremely high voltages that are lethal to personnel and destructive to the relay.

Second, ensure the Auxiliary Power Supply voltage matches the specific "BM" configuration of your unit to avoid internal component failure. Third, the Grounding Terminals must be connected to a low-impedance earth ground to ensure the electromagnetic compatibility (EMC) of the device and the safety of the operators.

Finally, because this is a numerical relay, Regular Firmware Backups and configuration file saves are essential. Before performing a dielectric or megger test on the switchgear, the relay should be disconnected to prevent high-test voltages from damaging the sensitive electronic processing boards.

Product Applications

The REM545BM223AAAA is used extensively in heavy industries where large motors are critical to the production process.

• Oil and Gas: Protecting large compressor motors and high-pressure pump motors in refineries and pipeline stations.

• Mining and Metals: Managing the massive motors used in crushers, conveyors, and mill drives where high-torque starts are common.

• Water and Wastewater: Controlling and protecting high-capacity pumps in water distribution and treatment facilities.

• Power Generation: Protecting auxiliary motors within a power plant, such as boiler feed pumps and cooling water fans.

• Pulp and Paper: Monitoring the status of large refiners and pulpers that require precise thermal monitoring to maintain operational efficiency.
