3BSE013284R1 TC515V2 ABB Bailey

Product Dimensions：

The TC515V2 is an interface and repeater module specifically designed for the Advant Fieldbus 100 (AF100) network. In large-scale industrial environments, signal degradation occurs as cable distances increase. The TC515V2 addresses this by regenerating the communication signals, allowing for longer network runs and more complex topologies. It acts as a bridge between segments of twisted-pair cabling, ensuring that data packets transmitted between controllers and I/O stations remain clear and synchronized. This module is often used in conjunction with AC400 series controllers and S800 I/O systems to maintain a cohesive and responsive control network.

Product Parameters

• Part Number: 3BSE013284R1

• Model Designation: TC515V2

• Network Type: Advant Fieldbus 100 (AF100)

• Media Type: Twisted-pair (shielded)

• Function: Signal repeater and bus interface

• Dimensions: 160 mm Height x 60 mm Width x 120 mm Depth

• Weight: Approximately 0.435 kg

• Power Supply: Typically powered via the baseplate or a dedicated 24V DC source depending on the housing

• Compatibility: Compatible with Advant Controller 400, AC800M, and S800 I/O stations

• Operating Temperature: 0 to +55 degrees Celsius

• Storage Temperature: -40 to +70 degrees Celsius

• HS Code: 853890 (Parts for industrial control apparatus)

Product Advantages

• Distance Extension: By regenerating electrical signals, the TC515V2 allows the AF100 bus to exceed standard distance limitations, making it ideal for large plants or multi-building facilities.

• Network Integrity: It filters out noise and strengthens weakened signals, which prevents data loss and minimizes "bus off" errors in electrically noisy industrial environments.

• Plug-and-Play Integration: Designed specifically for the Advant ecosystem, it integrates seamlessly into existing AF100 configurations without requiring complex software reprogramming.

• Redundancy Support: The module is built to operate within redundant network architectures, ensuring that if one communication path fails, the system maintains high availability.

• Compact Footprint: Its slim design allows for efficient use of cabinet space, even when multiple repeaters are required for complex network branching.

Important Considerations (Precautions)

• Correct Termination: Ensure that the AF100 bus is properly terminated at both ends. Failure to use correct terminating resistors when using repeaters can cause signal reflections and network failure.

• Cable Quality: Only use ABB-specified shielded twisted-pair cables. Using sub-standard wiring will negate the signal-cleaning benefits of the TC515V2.

• Power Sequencing: When installing or replacing the module, ensure the system power is handled according to the Advant OCS maintenance manual to avoid transient surges.

• Firmware Compatibility: Verify that the version of your controllers and existing AF100 interfaces is compatible with the "V2" revision of this repeater.

• Environmental Limits: While designed for industrial use, the module should be installed in an IP-rated enclosure to protect against conductive dust and moisture, as it is an open-frame style component.

Product Applications

The TC515V2 is primarily found in heavy industries where reliable, high-speed communication is mission-critical.

• Power Generation: Used to link turbine control systems with remote water treatment or cooling tower I/O stations spread across a large site.

• Oil and Gas: Facilitates communication between centralized control rooms and remote wellhead or pumping station controllers.

• Chemical Processing: Ensures stable data transfer in large-scale refineries where high-speed logic is required for safety and process efficiency.

• Pulp and Paper: Connects various stages of the paper machine line, where long distances between I/O racks are common.

• Metals and Mining: Provides robust communication for smelting and processing plants where electrical interference from large motors is a constant factor.

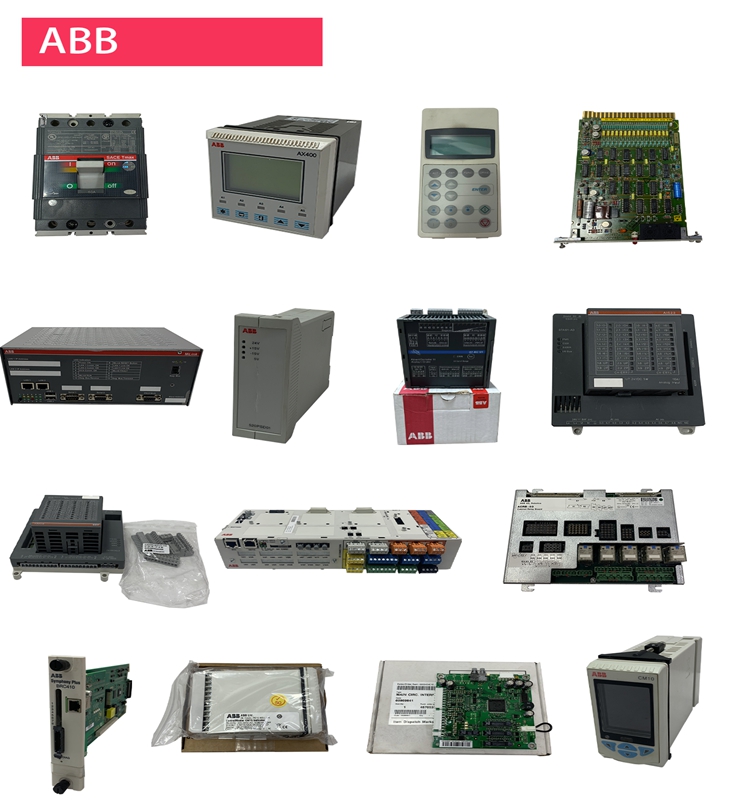

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
