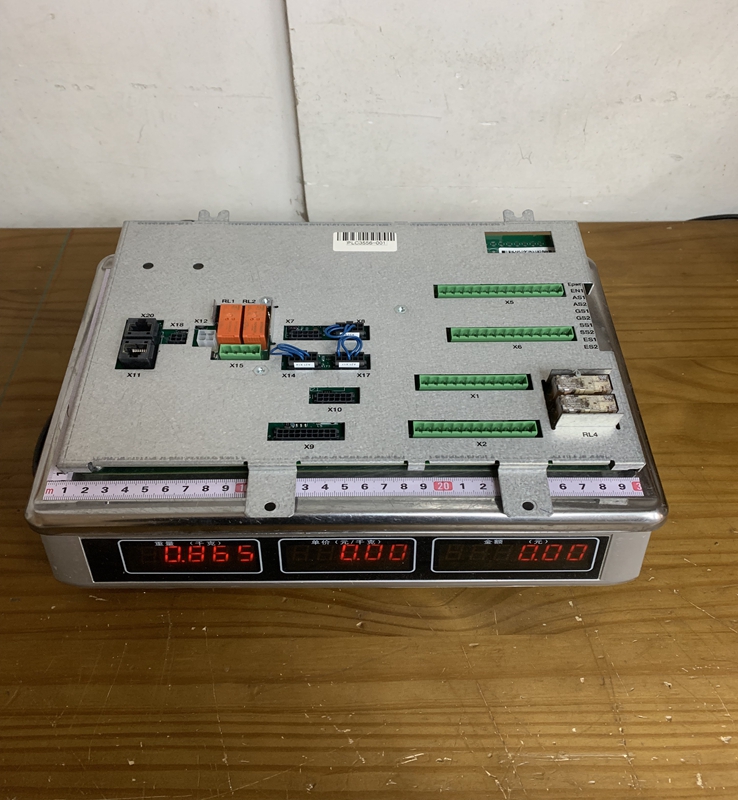

DSQC643 ABB Bailey

Product Dimensions：

The DSQC643 acts as an essential hardware interface within the IRC5 M2004 and subsequent controller generations. Its primary role is to handle the routing and distribution of signals for sensors, actuators, and the robot's safety chain. As a dedicated panel unit, it ensures that the robotic system can process real-time feedback from the work environment, allowing the controller to maintain precise command over the robot arm's movements. It is frequently categorized as a "Panel Unit Board" or "Robot PCB Board" and is recognized for its reliability in high-speed industrial processing tasks.

Product Parameters

• Part Number: 3HAC024488-001 (often followed by version suffixes like /01 or /05)

• Type Designation: DSQC 643 Panel Board

• Compatibility: Exclusively for ABB IRC5 robot controllers (particularly those with flat-door cabinet designs)

• Power Supply: Operates on a standard industrial $24 \text{ VDC}$ supply

• Dimensions: Approximately $280 \text{ mm}$ in depth, $218 \text{ mm}$ in height, and $26.8 \text{ mm}$ in width

• Weight: Net weight of approximately $0.34 \text{ kg}$ ($0.75 \text{ lbs}$)

• Country of Origin: Sweden

• I/O Management: Capable of handling multiple digital input and output channels for system-level signals

Product Advantages

The DSQC643 is engineered to provide a stable and noise-resistant interface for the robot's logic system. By using high-quality electronic components, it minimizes signal latency, which is vital for high-precision robotic paths and safety-critical stop functions. Its modular design allows it to be easily swapped during maintenance, reducing downtime in production environments. Furthermore, because it is an OEM (Original Equipment Manufacturer) part, it guarantees perfect synchronization with the IRC5 software environment without the need for additional drivers or third-party adapters.

Important Considerations

When handling or installing the DSQC643, it is crucial to observe Static Discharge (ESD) precautions, as the board contains sensitive micro-components that can be damaged by static electricity. Always ensure the IRC5 controller is completely powered down and locked out before attempting to remove or install the board to prevent electrical arcing or damage to the backplane. Users should also verify the specific version suffix (e.g., 3HAC024488-001/01) to ensure it matches the existing hardware configuration of their robot, as minor revisions may affect connector placement or firmware compatibility.

Product Applications

The DSQC643 is extensively used across industries that rely on ABB robotics for automated precision. In automotive assembly, it manages the high-speed signals required for welding and painting robots. In electronics manufacturing, it facilitates the rapid I/O switching needed for pick-and-place operations. Additionally, it is found in material handling and palletizing systems where it interfaces with safety light curtains and conveyor sensors to ensure the robot operates safely within its designated work cell.
