RDCU-02C ABB Bailey

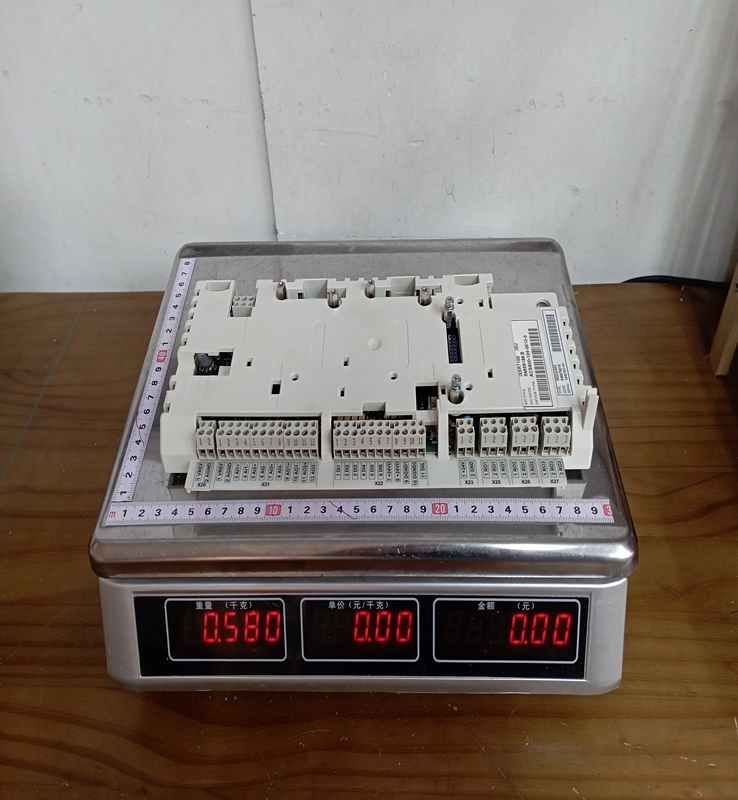

Product Dimensions：

The RDCU-02C (Drive Control Unit) is an essential component within the modular architecture of ABB’s industrial drives. It is typically mounted either directly on the power module or on a separate mounting base. This unit contains the microprocessor, memory, and the basic I/O circuitry required to execute the drive's control logic. It is designed to interface seamlessly with various fieldbus adapters and optional I/O extension modules, allowing it to be integrated into diverse automated environments.

Product Parameters

• Model Identification: RDCU-02C (Coated version for increased environmental resistance).

• Power Supply: Typically powered by a 24 VDC external source ($+/- 10\%$).

• Current Consumption: Approximately 1.2 A depending on the number of connected options and modules.

• Control Board Base: Based on the RMIO (Motor Control and I/O Board) technology.

• Fiber Optic Links: Equipped with fiber optic channels for high-speed, noise-immune communication with the power unit (inverter) and other drive modules.

• Coating: The "C" suffix denotes conformal coating, which provides enhanced protection against humidity, dust, and corrosive chemical contaminants.

• Digital and Analog I/O: Provides integrated terminals for programmable digital inputs, digital outputs, and high-precision analog inputs/outputs for speed and torque references.

Product Advantages

One of the primary advantages of the RDCU-02C is its modular flexibility. By separating the control unit from the power stage, ABB allows for easier maintenance and the ability to upgrade control software without disturbing the high-power electrical connections.

The conformal coating is a significant benefit for industrial users, as it ensures long-term reliability in harsh environments like pulp and paper mills or chemical plants where airborne particles could otherwise cause short circuits. Furthermore, the unit features high-speed processing, which enables precise motor control (Direct Torque Control - DTC), resulting in better process accuracy and reduced mechanical stress on the machinery. The use of fiber optic technology for internal communications ensures that the control signals remain unaffected by the high levels of electromagnetic interference (EMI) typically found in high-power drive cabinets.

Important Considerations and Precautions

When handling or installing the RDCU-02C, it is critical to observe Electrostatic Discharge (ESD) precautions. The onboard components are highly sensitive; therefore, technicians should always use a grounded wrist strap when touching the unit.

Before installation or replacement, ensure that all input power is disconnected and wait at least 5 minutes for the DC bus capacitors to discharge to safe levels. Another vital consideration is the software/firmware version. The RDCU-02C must be loaded with the correct application firmware (e.g., Standard, Pump and Fan, or Crane control) that matches the specific hardware configuration of the power module it is controlling.

Additionally, ensure that the 24 VDC supply is stable and adequately fused. Poor power quality to the control unit can lead to intermittent "Internal Communication" faults or unintended drive resets.

Product Applications

The RDCU-02C is utilized in a wide array of heavy-duty industrial applications where the ACS800 drive system is deployed.

• Metals and Mining: Controlling large conveyor belts, crushers, and kilns where precise torque control and high reliability are mandatory.

• Oil and Gas: Managing centrifugal pumps and compressors, often requiring integration with complex DCS systems via fieldbus protocols.

• Pulp and Paper: Controlling paper machines and winders where synchronized speed control across multiple drive sections is required.

• Marine and Offshore: Used in propulsion systems and thruster controls where the coated boards (RDCU-02C) provide necessary protection against salty, humid maritime air.

• Material Handling: Powering high-capacity cranes and hoists that require specialized firmware for anti-sway and load-balancing functions.
