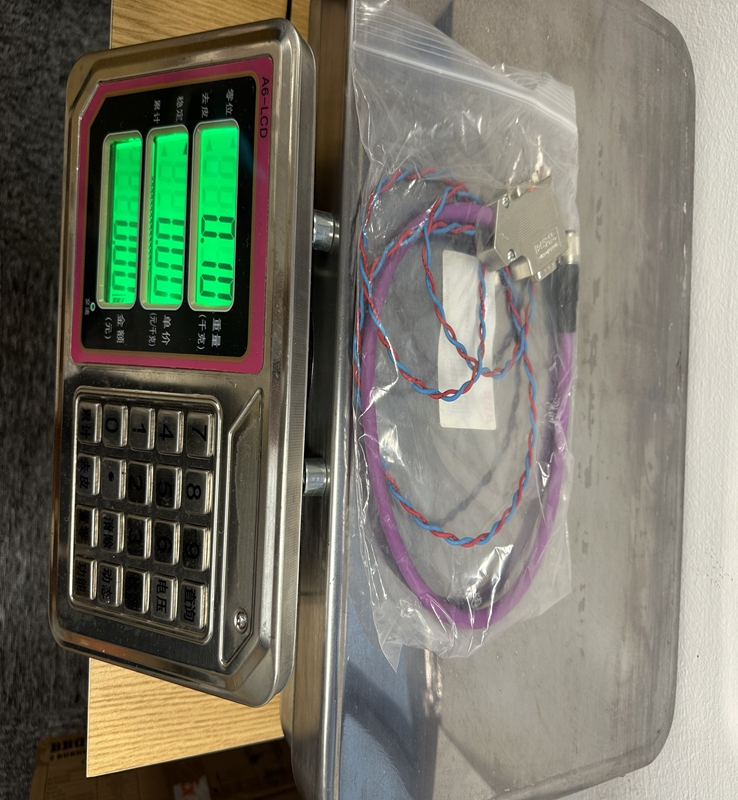

PDA11-FBP.050 1SAJ924009R0005 ABB Bailey

Product Dimensions：

The PDA11-FBP.050 adapter cable provides a dedicated interface connection between ABB Fieldbus Plug modules (such as PDP22, PDP32, or PNL11) and field instruments or motor controllers. Built with a prefabricated length of 0.5 meters, it features pre-assembled, industrial-grade connectors that eliminate manual wiring errors during installation. The cable is constructed with robust shielding to protect sensitive digital signals from electromagnetic interference in harsh factory environments, providing a plug-and-play solution for motor management systems, soft starters, and intelligent overload relays.

Product Parameters

• Product Name: ABB PDA11-FBP.050

• Order Code: 1SAJ924009R0005

• Cable Length: 0.5 meters (50 cm)

• Product Type: Fieldbus adapter connection cable

• Connector Configurations: Pre-molded industrial round connectors optimized for ABB Fieldbus Plug devices

• Shielding: Braided foil shielding for enhanced noise immunity

• Ambient Operating Temperature: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature: -40°C to +80°C (-40°F to +176°F)

• Protection Degree: IP65 rating when properly mated and locked

• Cable Jacket Material: Durable, oil-resistant polyurethane or PVC compound designed for industrial drag chains and flexible installation

• Standards Compliance: RoHS compliant and tested according to relevant IEC industrial communication standards

Product Advantages

A key advantage of the PDA11-FBP.050 is its factory-tested, plug-and-play design, which significantly reduces installation time and minimizes wiring mistakes compared to field-assembled connections.

Its compact 0.5-meter length is ideal for short-distance cabinet routing, avoiding excessive cable clutter and maintaining clean control panel architecture.

The high IP65 ingress protection rating and industrial-grade shielding guarantee reliable data transfer even in environments exposed to dust, moisture, and high electromagnetic noise.

Additionally, using standard ABB prefabricated cables lowers maintenance downtime, as replacing or upgrading connected fieldbus modules requires minimal effort.

Important Considerations and Precautions

When installing the PDA11-FBP.050 adapter cable, ensure the mating connectors are fully seated and hand-tightened to maintain the IP65 environmental seal and prevent loose electrical contact.

Avoid bending the cable beyond its minimum bend radius to prevent internal wire strain or shield degradation over prolonged operation.

The cable should be routed away from high-voltage power lines, motor leads, and variable frequency drive outputs to minimize electromagnetic cross-talk.

Always confirm that system power is switched off before connecting or disconnecting the cable to protect sensitive fieldbus transceiver circuitry.

Inspect the connector pins and internal seals periodically for contamination, wear, or physical damage in high-vibration applications.

Product Applications

The PDA11-FBP.050 cable is widely used across automated processing and manufacturing facilities where ABB Fieldbus Plug architecture is deployed.

• Motor Control Centers (MCC): Connecting Universal Motor Controllers (such as UMC100.3) to fieldbus communication plugs located on switchgear compartment walls.

• Intelligent Soft Starters and Drives: Interfacing ABB soft starters and compact drives with fieldbus master networks including PROFIBUS DP, DeviceNet, or Modbus RTU.

• Distributed I/O Cabinets: Linking field devices and smart sensors to centralized Fieldbus Plug communication gateways in decentralized control topologies.

• Process Automation Systems: Providing reliable communication lines in chemical, water treatment, and material handling plants requiring IP65-rated field connections.
