2TLA020070R6900 ABB Bailey

Product Dimensions：

The 2TLA020070R6900 communication cable serves as a direct hardware bridge between human-machine interfaces and safety logic controllers. It features a standardized 9-pin D-sub connector on the HMI side to mate with CP600 terminal ports and a dedicated connector end structured for the Pluto front programming interface. The assembly transmits diagnostic data, real-time input and output status, alarm logs, and system messages from the safety PLC to the display screen, eliminating the need for complex fieldbus gateway setup for basic visualization tasks.

Product Parameters

• Product Type: Dedicated HMI to Safety PLC Communication Cable.

• Order Code: 2TLA020070R6900.

• Model Designation: Pluto cable CP600.

• Manufacturer: ABB / Jokab Safety.

• Length: Standard pre-molded length of 2.9 meters.

• HMI-Side Connector: 9-pin D-sub connector.

• PLC-Side Connector: Pluto front programming port interface connector.

• Target Hardware Compatibility: ABB CP600 series HMI panels.

• Target PLC Compatibility: Compatible with all standard ABB Pluto safety controllers including Pluto A20, B20, B22, B42 AS-i, B46, D20, D45, O2, S20, and S46 series.

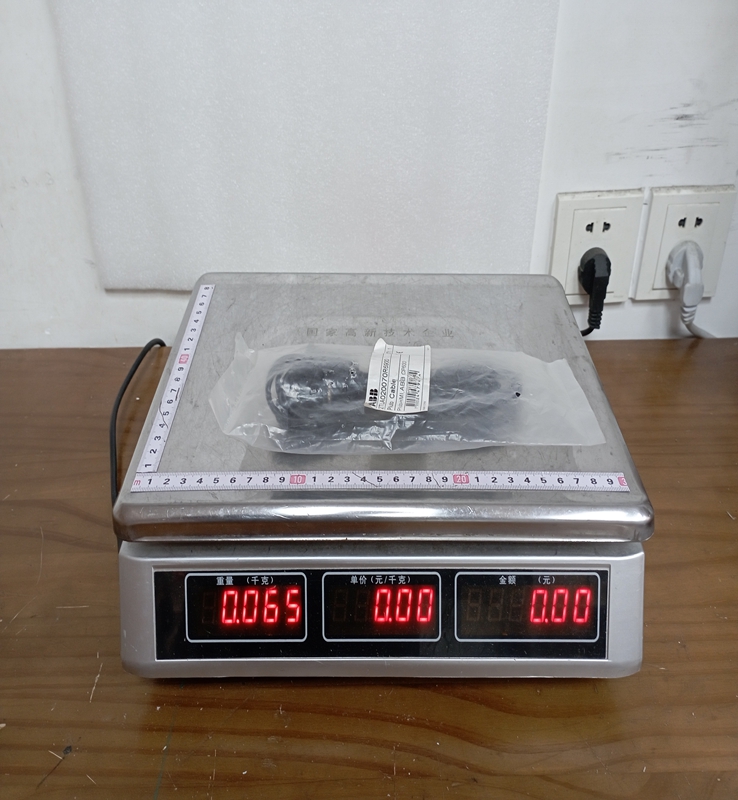

• Approximate Net Weight: 0.065 kg to 0.068 kg.

• Country of Origin: Sweden.

Product Advantages

A major advantage of this cable is plug-and-play simplicity, which allows field engineers to quickly connect an HMI display to a Pluto safety PLC without needing custom serial pinouts or specialized interface modules.

It provides real-time access to internal Pluto registers, allowing machine operators to pinpoint tripped safety sensors, door interlocks, or light curtains directly on the HMI, drastically reducing downtime during troubleshooting.

The factory-molded industrial strain reliefs and high-quality shielding ensure long-term mechanical durability and resistance against signal interference in electrically noisy control cabinets.

Additionally, because it connects to the dedicated programming port, it frees up other primary communication channels or safety bus networks for core machine control.

Important Considerations and Precautions

Care must be taken to ensure the cable is firmly latched using the 9-pin D-sub thumbscrews on the CP600 HMI port to prevent vibration-induced signal disconnection during machine operation.

Installers must route the cable away from high-voltage AC lines, variable frequency drive motor cables, and heavy inductive loads to prevent electromagnetic noise from interfering with data transmission.

Because this cable is intended strictly for parameter reading, status visualization, and diagnostic data transfer, it must never be relied upon as a safe communication medium for safety-critical stop functions or real-time interlock execution.

Avoid excessive bending or pulling on the cable harness during installation to protect internal signal conductors from micro-fractures.

Verify that power is turned off before inserting or removing connectors to avoid potential serial transceiver latch-up on the devices.
