INNIS-21 ABB Bailey

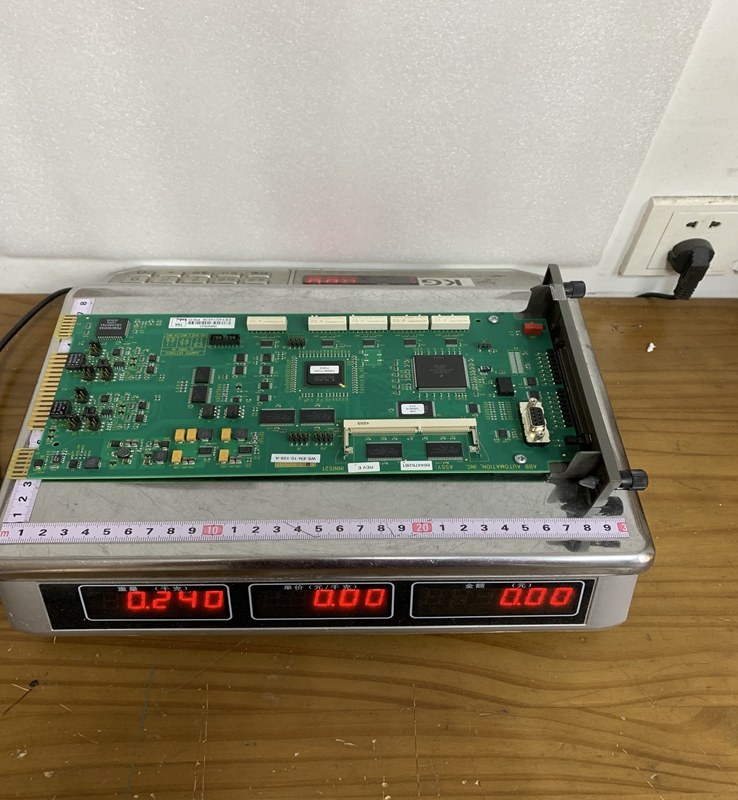

Product Dimensions：

The INNIS-21 module operates as a network slave interface within the INFI 90 and Symphony Harmony architecture. It facilitates bidirectional, real-time data exchange between local controller modules (such as the BRC or MFP controllers) and the broader plant automation network. By handling network protocol overhead and data packet serialization, the INNIS-21 allows the main controller modules to focus exclusively on executing control logic, loops, and algorithm processing without getting bogged down by network traffic. It is typically paired with a Network Interface Master module (such as the INNIM-12 or INNIM-21) to form a complete network interface set.

Product Parameters

• Module Type: Network Interface Slave Module

• System Compatibility: ABB Bailey INFI 90, Symphony Harmony DCS platforms

• Backplane Interface: Connects directly to the Module Mounting Unit (MMU) backplane bus (Controlway)

• Power Requirements: Powered via the system cabinet power bus, drawing $+5 \text{ VDC}$ and $\pm 15 \text{ VDC}$ operating voltages

• Operating Temperature Range: $0\text{°C}$ to $70\text{°C}$ ($32\text{°F}$ to $158\text{°F}$)

• Storage Temperature Range: $-40\text{°C}$ to $85\text{°C}$ ($-40\text{°F}$ to $185\text{°F}$)

• Relative Humidity: $5\%$ to $95\%$ non-condensing

• Form Factor: Standard single-slot circuit board assembly with faceplate status LEDs

• Diagnostic Indicators: Front panel LEDs providing module status, communication activity, and fault indications

Product Advantages

A major advantage of the INNIS-21 is its ability to Offload Processing Overhead from the main controller modules. By processing communication protocols independently, it ensures that critical control loop execution remains deterministic and unaffected by network loads.

The module offers High Operational Reliability built for 24/7 industrial environments, with built-in error checking and parity validation to ensure data integrity across the backplane. Its Seamless DCS Integration allows legacy INFI 90 systems to maintain reliable communications or upgrade gracefully within the Symphony Harmony ecosystem without requiring complete system rewiring. Furthermore, its Self-Diagnostic Capabilities immediately alert system operators to network or hardware anomalies via status LEDs and system alarm logs, minimizing system troubleshooting time.

Important Considerations and Precautions

When installing or servicing the INNIS-21, technicians must observe strict Electrostatic Discharge (ESD) precautions, as static buildup can permanently damage sensitive onboard microprocessors.

Before inserting or removing the module from the Module Mounting Unit (MMU), ensure that proper power management guidelines for the specific chassis revision are followed to prevent bus glitches or module damage. Always verify that the Module Dip Switches or Jumpers are configured correctly according to the system topology before powering on the slot.

Because the INNIS-21 operates in conjunction with a master network module, proper physical alignment and firm seating into the backplane connectors are required to prevent intermittent communication failures. Lastly, maintain control cabinet temperature and humidity within specified limits, as thermal stress can lead to premature degradation of electronic components in continuous-duty industrial environments.

Product Applications

The ABB INNIS-21 module is deployed across large-scale process industries that rely on the ABB INFI 90 and Symphony Harmony DCS platforms.

• Fossil Fuel and Nuclear Power Generation: Interfacing boiler control, turbine control, and balance-of-plant systems with the central operator stations.

• Chemical and Petrochemical Processing: Managing real-time data communication across complex continuous reaction, distillation, and cracking units.

• Oil and Gas Production: Facilitating network communications between distributed wellhead controllers, offshore platforms, and centralized SCADA environments.

• Pulp and Paper Mills: Used in process control networks managing stock preparation, paper machine drives, and chemical recovery boilers.

• Water and Wastewater Facilities: Linking distributed pump stations, filtration networks, and chemical treatment controllers to the main control network.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

ABB SDCS-PIN-H11A  3ADT319200R1501

ABB SDCS-PIN-3A 3ADT312200R1

ABB AMC-DC  3ADT309900R1

ABB SDCS-CON-2 3ADT309600R1

ABB SCYC51220

ABB SDCS-CON-2A  3ADT309600R0002

ABB ZCON-12

ABB SDCS-PIN-41A  3BSE004939R1

ABB SDCS-COM-81  3ADT314900R1002

ABB SDCS-COM-1  3BES005028R1

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China       Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online servi
