FSM4000 ABB Bailey Analog Input Module
Brand：ABB Model number：FSM4000
Country of origin: Sweden Product weight：0.55KG
HS code：8517623990
Product Details：

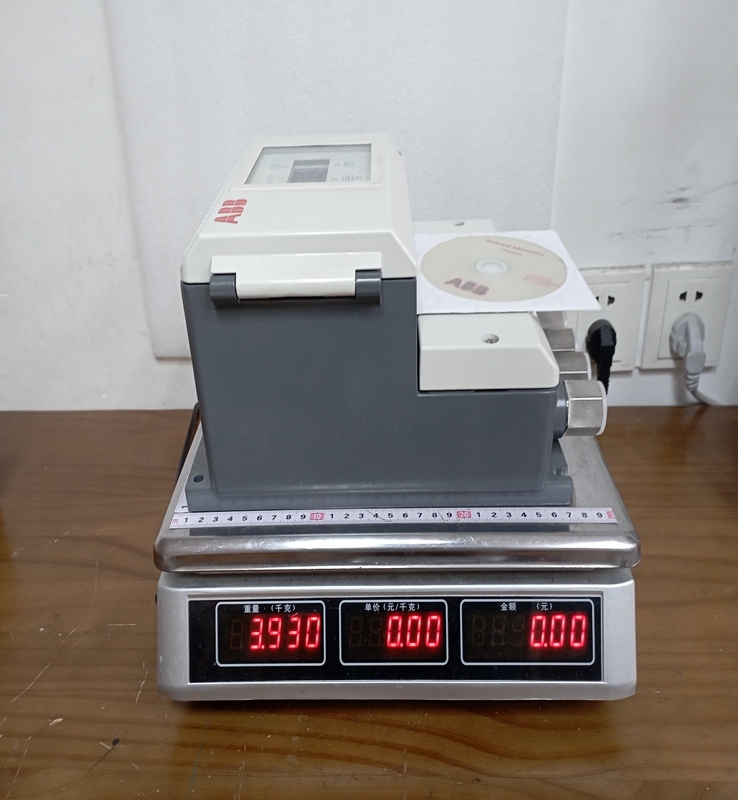

Product Dimensions：
The ABB FSM4000 is a high-performance electromagnetic flowmeter specifically engineered for challenging liquid flow measurements across diverse process industries. Designed to handle demanding applications involving slurries, high solid content, low conductivity liquids, and pulsating flows, the FSM4000 utilizes advanced signal processing and high-frequency sensor excitation techniques. It comprises a robust primary flow sensor and a versatile signal converter, delivering highly accurate, repeatable, and stable volumetric flow measurements without creating any pressure drop in the pipeline.
Nominal Diameter: Sizes ranging from DN 3 to DN 1000 (1/10 inch to 40 inches).
Measurement Accuracy: Up to ±0.5% of rate (or ±0.2% option depending on calibration and configuration).
Operating Pressure: Flange ratings available in PN 10 up to PN 100, ANSI Class 150 to Class 600.
Process Temperature Range: -20°C to +180°C (-4°F to +356°F) depending on liner material and sensor design.
Fluid Conductivity: Minimum liquid conductivity down to 20 µS/cm (or lower depending on sensor model).
Liner Materials: Hard rubber, soft rubber, PTFE, PFA, ETFE, and ceramic coatings designed for corrosive and abrasive media.
Electrode Materials: Stainless steel 1.4571, Hastelloy B/C, Platinum-Iridium, Tantalum, and Titanium.
Output Signals and Protocols: 4–20 mA current output, pulse/frequency output, digital inputs/outputs, with support for HART, PROFIBUS PA, and FOUNDATION Fieldbus communication protocols.
Housing Protection Class: IP 67 standard, with IP 68 option available for continuous immersion.
Power Supply: 100–230 V AC (50/60 Hz) or 24 V AC/DC.
The ABB FSM4000 excels in extreme operating environments where conventional flowmeters fail due to severe signal noise, abrasion, or chemical aggressiveness.
Its AC sensor excitation capability provides superior signal-to-noise ratios, enabling stable readings even in heavy slurry, fibrous pulp, or rapidly fluctuating multi-phase fluids.
Because the sensor design features an unobstructed bore without moving parts, it incurs zero head loss and eliminates the risk of line blockages or mechanical wear.
The modular converter platform offers flexible mounting options, comprehensive diagnostic capabilities, and user-friendly menu navigation for rapid commissioning and maintenance.
High long-term measurement stability reduces re-calibration frequencies, resulting in lower lifecycle costs and maximized process uptime.
Proper installation requires adherence to straight pipe run requirements, typically requesting five pipe diameters upstream and three pipe diameters downstream from the sensor to ensure a fully developed velocity profile.
Effective grounding is mandatory to establish an electrical reference between the fluid and the flowmeter, particularly in plastic or lined piping systems, to prevent stray current interference.
Selection of liner and electrode materials must carefully match the chemical composition, operating temperature, and abrasiveness of the target process fluid to avoid premature material degradation.
The flowmeter measuring pipe must always remain completely full of liquid during operation to guarantee accurate volumetric measurements.
During maintenance, ensure the electrical supply is isolated before opening the converter enclosure, especially in hazardous area environments.
The ABB FSM4000 is widely deployed across critical process industries requiring reliable and precise flow measurement under tough operational conditions.
Pulp and Paper Industry: Monitoring high-consistency pulp stock, black liquor, green liquor, and bleaching chemical additives.
Mining and Minerals Processing: Measuring abrasive ore slurries, tailings, flotation feed, and acid leach streams.
Chemical and Petrochemical Processing: Handling aggressive acids, alkalis, corrosive solutions, and organic chemical flows.
Water and Wastewater Management: Measuring raw sewage, digested sludge, effluent streams, and industrial wastewater treatment fluids.
Food and Beverage Operations: Monitoring viscous liquids, fruit juices, mash, and auxiliary utility water lines.
