DC541-CM 1SAP270000R0001 ABB Bailey

Product Dimensions：

The DC541-CM function module expands the capabilities of the ABB AC500 PLC platform by offering flexible, high-speed digital channels mounted directly onto an AC500 terminal base. Unlike standard static digital modules, the DC541-CM provides specialized high-speed inputs and outputs that can be individually configured for rapid signal evaluation. It handles time-critical automation processes independently of the main controller cycle time, processing signals in microseconds to trigger immediate system events. The compact DIN-rail mountable module uses a 1-wire connection scheme and integrates smoothly into local CPU bases or decentralized S500 I/O expansion racks.

Product Parameters

• Product Type: AC500 High-Speed I/O Function Module

• Order Number: 1SAP270000R0001

• Number of Channels: 8 fast, individually configurable digital inputs or outputs (DI/DO)

• Nominal Operating Supply Voltage: 24 V DC

• Output Current Rating: 0.5 A per channel when configured as digital outputs

• Wiring System: 1-wire connection mechanism via terminal base

• Degree of Protection: IP20

• Operating Ambient Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +70°C

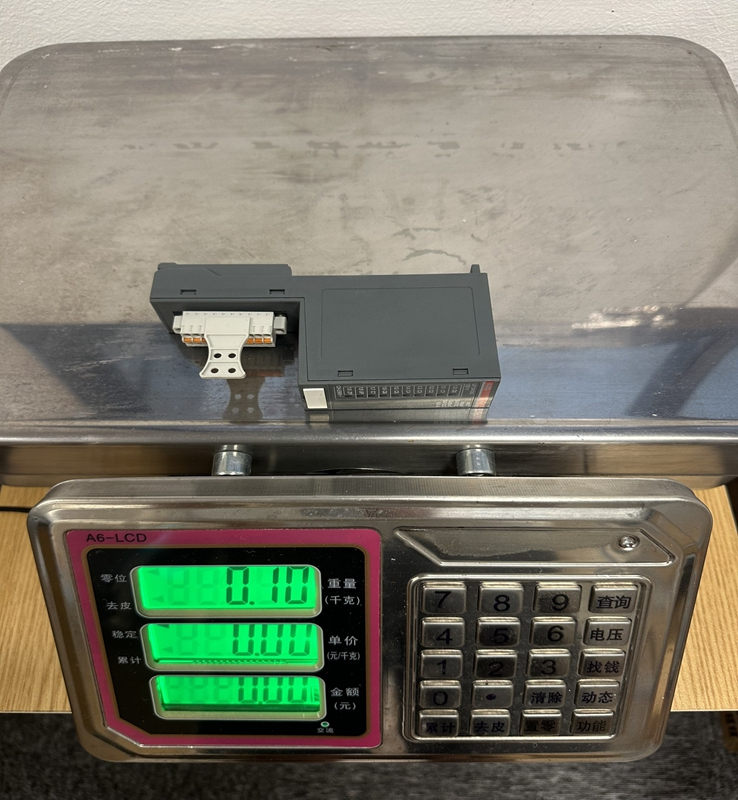

• Net Weight: 0.085 kg

• Dimensions: 28 mm width x 135 mm height x 62 mm depth

• Mounting Mode: Snaps directly onto standard AC500 I/O terminal bases

Product Advantages

High channel versatility allows all 8 ports to be independently parameterized as inputs or outputs, significantly reducing spare part inventory and hardware requirements.

Ultra-fast signal execution provides extremely low processing latency, making it ideal for precision event capture, rapid interrupt generation, and high-frequency counting applications.

Seamless AC500 platform integration ensures effortless software setup using Automation Builder (formerly Control Builder Plus) software without complex external programming routines.

Hot-swappable modular architecture simplifies maintenance, allowing quick module insertion and removal on the terminal base without disturbing external field wiring.

Compact form factor minimizes cabinet space consumption while maintaining robust industrial-grade electrical isolation and reliability.

Important Considerations and Precautions

Always turn off system power before seating or unseating the module from the terminal base to avoid damaging pin headers or causing signal glitches.

Ensure the combined current load of configured output channels does not exceed the power supply capacity or thermal limitations of the terminal base.

Use shielded, twisted-pair cabling for high-speed input signals to prevent high-frequency electromagnetic interference from corrupting pulse counts or triggering false interrupts.

Adhere strictly to the IP20 ingress protection rating by installing the module inside an appropriately sealed, climate-controlled industrial enclosure.

Confirm channel configuration parameters in the PLC programming tool prior to applying 24 V DC field voltage to avoid short-circuit conditions on channels set as outputs.

Product Applications

High-speed pulse counting and encoder evaluation for material handling, conveyor systems, and rotary position tracking.

Frequency measurement and tachometer feedback processing for motor speed surveillance and turbine control.

Immediate event-driven interrupt handling for packaging lines, high-speed sorting machines, and emergency stop triggers.

Precision pulse-width modulation (PWM) output generation for proportional valve control and heating element regulation.

Decentralized fast automation tasks in automated assembly plants, printing presses, and wood processing machinery.
