DSQC612 3HAC15639-1 ABB Bailey

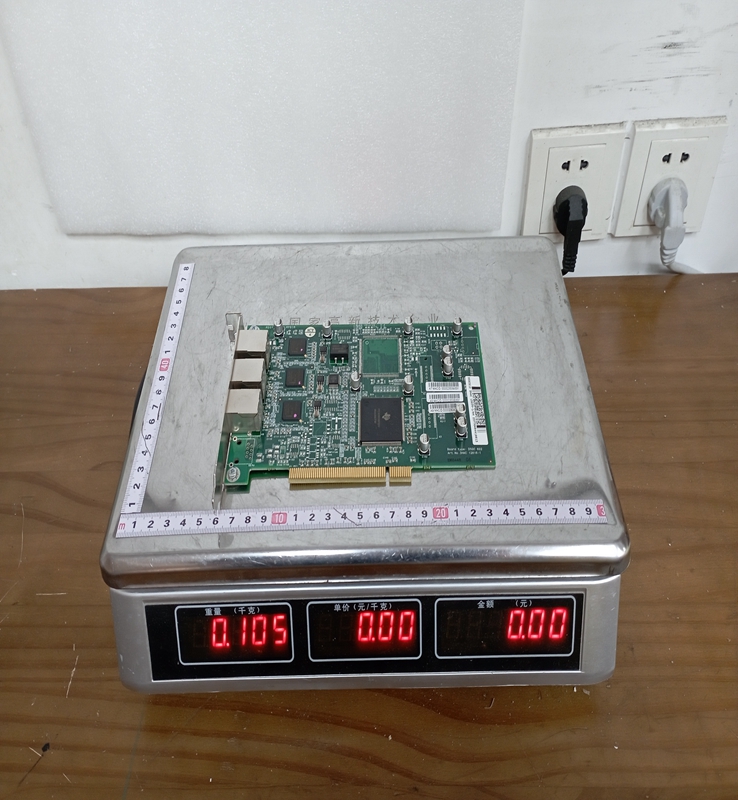

Product Dimensions：

The DSQC612 is an electronic board that mounts directly inside the IRC5 controller cabinet. It belongs to ABB's extensive line of DSQC automation components, which are known for their reliability in high-speed manufacturing environments. The module provides a "Lean" implementation of the DeviceNet protocol, which optimizes data throughput for standard I/O communication while reducing hardware complexity. It enables the IRC5 controller to act as a master or a slave on the network, orchestrating the timing and control signals sent to gripper systems, sensors, welding controllers, and auxiliary axis drives.

Product Parameters

• Product Name: DeviceNet Lean Interface Module

• ABB Type Designation: DSQC612

• ABB Part Number: 3HAC15639-1

• Network Protocol: DeviceNet (Lean specification)

• Data Transfer Rates: Supports standard DeviceNet baud rates including $125 \text{ kbps}$, $250 \text{ kbps}$, and $500 \text{ kbps}$.

• Supply Voltage: Powered internally through the IRC5 backplane, typically requiring a stable $24 \text{ VDC}$ network power supply for the DeviceNet communication bus side.

• Connection Interface: Features a standard open-style pluggable connector for DeviceNet network cabling (V-, CAN_L, Shield, CAN_H, V+).

• Mounting Style: Plugs into designated expansion slots on the main computer or I/O computer of the IRC5 controller.

• Compatibility: Exclusively designed for ABB IRC5 industrial robot controller systems.

Product Advantages

A major advantage of the DSQC612 3HAC15639-1 is its Seamless Integration with the ABB RobotWare software framework. This allows programmers to configure network nodes, mapping, and I/O signals directly from the RobotStudio interface or the FlexPendant without needing third-party network configuration tools. The Cost-Effective Design of the Lean module gives factories exactly the network capabilities they need for localized cell automation without the expense of full-scale master interfaces.

Additionally, the board offers High Noise Immunity, which is crucial in robotic cells where high-current welding arcs or large motor drives generate significant electromagnetic interference. Its Compact Form Factor also ensures that it does not take up excessive space within the main control cabinet, preserving room for other necessary safety or motion options.

Important Considerations and Precautions

When installing or replacing the DSQC612 module, you must strictly observe Electrostatic Discharge (ESD) Protections. The board contains sensitive CMOS components that can be permanently damaged by static electricity; always wear a grounded wrist strap when handling the card. Ensure that the IRC5 Controller is Completely Powered Down before inserting or removing the module to prevent electrical arcing across the backplane connectors.

Network topology rules for DeviceNet must be followed precisely; this includes installing $120 \text{ \Omega}$ Terminating Resistors at both physical ends of the trunk line to prevent signal reflection and communication timeouts. Furthermore, pay close attention to the DeviceNet Power Supply Voltage on the bus network; voltage drops over long cable runs can cause the DSQC612 to intermittently drop offline. Finally, always verify that the MAC ID (Node Address) configured in the robot software does not conflict with any other device on the network.

Product Applications

The ABB DSQC612 is utilized in any automated manufacturing cell where an IRC5-controlled robot must coordinate with external hardware.

• Automotive Spot and Arc Welding: Interfacing the robot controller with the welding power source and water-cooling units to monitor weld parameters in real time.

• Material Handling and Palletizing: Connecting to complex pneumatic grippers, vacuum sensors, and part-presence switches located on the robot's tool center point.

• Pick-and-Place Operations: Communicating with vision system triggers and localized conveyor tracking sensors to synchronize robot movements with moving production lines.

• Machine Tending: Coordinating interlock signals between the robot and CNC milling machines or injection molding units to ensure safe loading and unloading cycles.

• Foundry and Press Tending: Managing high-temperature proximity sensors and safety light curtains around the robotic work cell.
