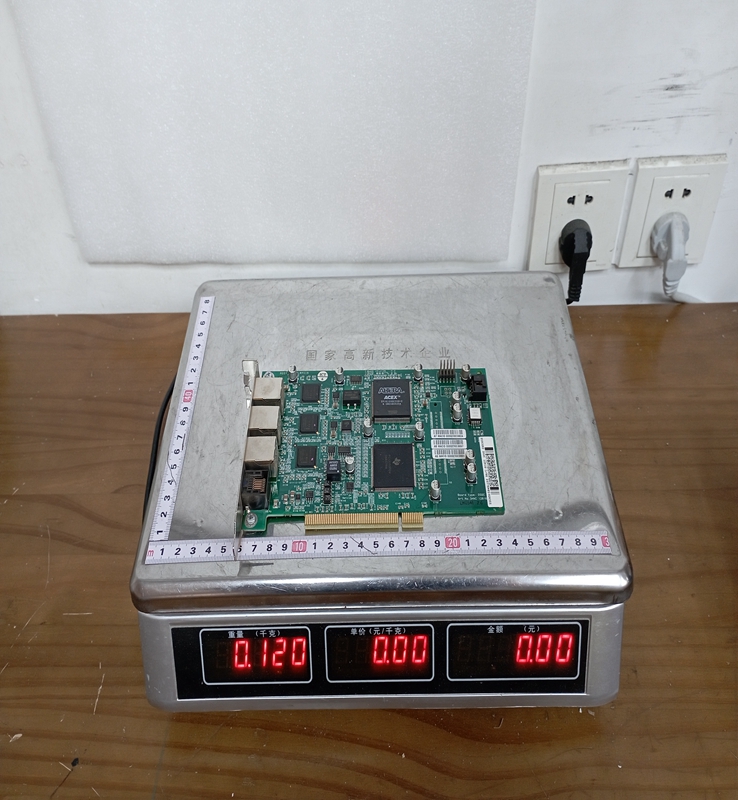

DSQC602 3HAC12816-1 ABB Bailey

Product Dimensions：

The DSQC602 (part number 3HAC12816-1) serves as the core processing engine for ABB's IRC5 controller platform. It is engineered to handle complex mathematical computations required for precise path generation and multi-axis synchronization of industrial robot arms. The board features an array of high-speed interfaces to connect with drive systems, memory modules, and fieldbus expansion cards. Because it manages the core software stack of the robot controller, this module ensures high deterministic behavior, meaning tasks are executed with precise timing, which is paramount for high-speed industrial automated tasks.

Product Parameters

• Product Name: Main Computer Module / CPU Board

• Model Designation: DSQC602

• ABB Part Number: 3HAC12816-1

• Controller Compatibility: Designed strictly for ABB IRC5 industrial robot controller series.

• Input Voltage: Powered via the internal backplane of the controller cabinet, typically relying on a regulated $24 \text{ VDC}$ logic supply.

• Cooling Requirement: Forced air cooling via integrated or cabinet-level fans is required to manage processor thermal output.

• Connectivity Interfaces: Includes standard network interfaces (such as Ethernet/LAN ports), specialized serial links, and proprietary system bus connections for interfacing with axis computer boards.

• Memory Support: Equipped with slots for flash memory cards or specialized boot media containing the RobotWare operating system.

Product Advantages

A primary advantage of the DSQC602 3HAC12816-1 is its Exceptional Processing Power, which allows it to calculate complex kinematics for advanced robotic functions like TrueMove and QuickMove, ensuring the robot follows paths perfectly regardless of speed. The Seamless System Integration within the IRC5 eco-system eliminates compatibility issues, providing a stable foundation for robot operations.

The module features High Reliability with components rated for continuous $24/7$ manufacturing environments, which minimizes unscheduled production downtime. Additionally, its Advanced Diagnostics capabilities allow it to communicate detailed error codes and hardware health metrics directly to the FlexPendant teach pendant, simplifying troubleshooting procedures for maintenance technicians.

Important Considerations and Precautions

When handling or replacing the DSQC602, Electrostatic Discharge (ESD) Protection is absolutely mandatory; technicians must wear a grounded wrist strap, as a minor static shock can destroy the sensitive microprocessors on the board. Before removing the module, a Complete System Backup of the RobotWare configuration, calibration parameters, and user programs must be performed, as replacing the board may require reloading the system image.

Never insert or remove the module or its connected memory cards while the Controller Power is On, as this can cause permanent electrical damage to the backplane or corrupt the operating system files. Ensure that the Cooling Fans inside the controller cabinet are fully operational and free of dust, as overheating will cause the CPU to throttle or trip safety shutdowns. Finally, when installing the board, verify that all ribbon cables and locking clips are completely engaged to prevent intermittent communication failures due to factory floor vibrations.

Product Applications

The ABB DSQC602 3HAC12816-1 is utilized across all manufacturing sectors where ABB IRC5-controlled robots are deployed.

• Automotive Assembly: Managing the synchronized motion of robots performing spot welding, laser cutting, and path-intensive sealing applications on vehicle bodies.

• Material Handling and Palletizing: Controlling high-payload robots sorting, picking, and stacking goods in logistics centers and packaging plants.

• Arc Welding: Executing precise path control and coordinating wire feeders and power sources for consistent weld seams in heavy machinery manufacturing.

• Foundry and Forging: Powering robots operating in harsh foundry environments for part extraction, grinding, and surface finishing.

• Electronics and Cleanrooms: Utilized in precise pick-and-place, screw driving, and assembly applications where high accuracy and speed are required.
