1SAJ924002R0005 ABB Bailey

Product Dimensions：

The PDF11-FBP.050 cable functions as a bridge within the ABB FieldBusPlug ecosystem. It is engineered to establish a reliable physical link for PROFIBUS DP communication protocols (supporting both V0 and V1 sub-types). The cable features a prefabricated, molded female connector on one end to ensure a secure, vibration-resistant attachment to the field device or fieldbus plug, while the opposite end is left open for direct terminal block wiring within control panels or junction boxes. This enables a standardized, flexible method for integrating individual motor control components into a centralized automation infrastructure.

Product Parameters

• Order Code: 1SAJ924002R0005

• Type Designation: PDF11-FBP.050

• Protocol Support: PROFIBUS DP

• Cable Length: $0.5 \text{ meters}$ (approximately $19.68 \text{ inches}$)

• Connector Type: Prefabricated female connector to open-end wire strands

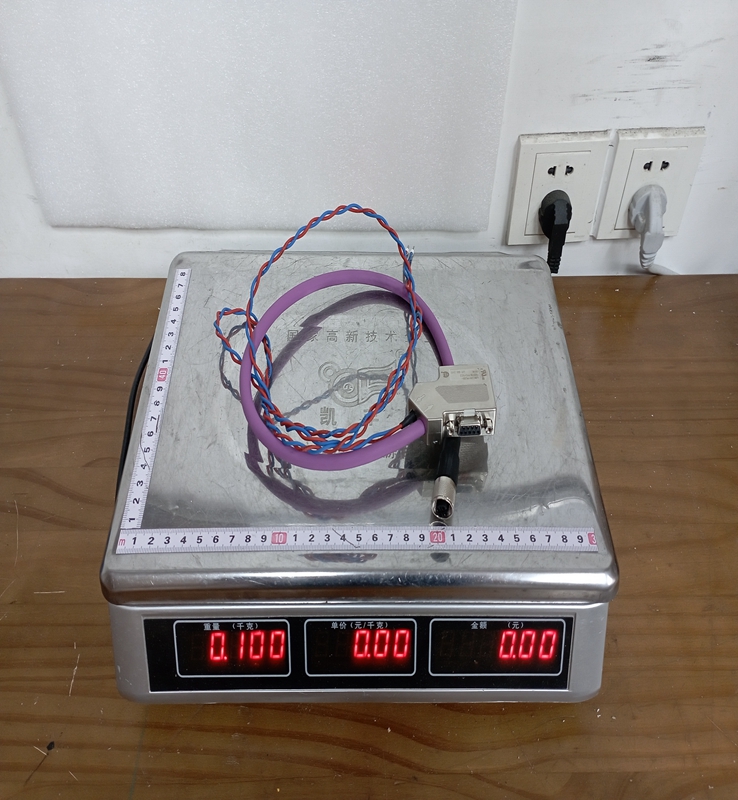

• Net Weight: $50 \text{ grams}$ (approximately $1.77 \text{ ounces}$)

• Commodity / HS Code: 85444290 (Insulated electric conductors for a voltage not exceeding 1000V, fitted with connectors)

• Product Main Type: Accessories for FieldBusPlug systems

Product Advantages

A major benefit of the 1SAJ924002R0005 is its Modular Integration approach. Instead of buying complex, dedicated fieldbus interfaces for every single component, this cable allows standard motor control devices to join a PROFIBUS network quickly. The High Connection Reliability of the prefabricated female connector ensures a low-resistance contact that minimizes communication packet losses caused by industrial vibrations.

The Compact 0.5m Length provides just enough flexibility to route signals within an electrical cabinet without creating excessive cable clutter, which helps maintain proper airflow and organized panel paths. Additionally, the open-end configuration provides Wiring Versatility, giving installers the freedom to land individual strands directly onto customized spring or screw-type terminal blocks.

Important Considerations and Precautions

When installing the PDF11-FBP.050, it is vital to note ABB's official recommendation: mount carefully, as loose contacts cause severe communication problems. The connector must be threaded and tightened properly to avoid intermittent bus faults. Because PROFIBUS DP operates at high data transmission rates, the open-end wiring must be stripped carefully without cutting individual copper strands, which could alter the characteristic impedance of the bus.

Installers must ensure that proper shielding rules are maintained at the open end to protect the data stream from electromagnetic interference (EMI) emitted by nearby variable frequency drives or high-voltage lines. Lastly, always check the network termination requirements; since this cable is a point-to-point drop or extension connection, ensure that appropriate PROFIBUS active terminators are placed at the actual physical ends of the main bus line.

Product Applications

The 1SAJ924002R0005 connection cable is primarily utilized in localized control environments where ABB FieldBusPlug-compatible equipment is deployed.

• Motor Control Centers (MCC): Connecting intelligent motor management systems, such as the ABB UMC series, to a centralized PLC via PROFIBUS DP.

• Industrial Soft Starters: Linking soft-start modules in pumping or fan stations to supervisory field networks.

• Automated Assembly Lines: Distributing communication to individual electronic overload relays across a conveyor network.

• Process Automation Cabinets: Integrating field-level control components into heavy industry communication systems, such as water treatment or chemical processing panels.
