6GK5206-1BB10-2AA3 SIEMENS

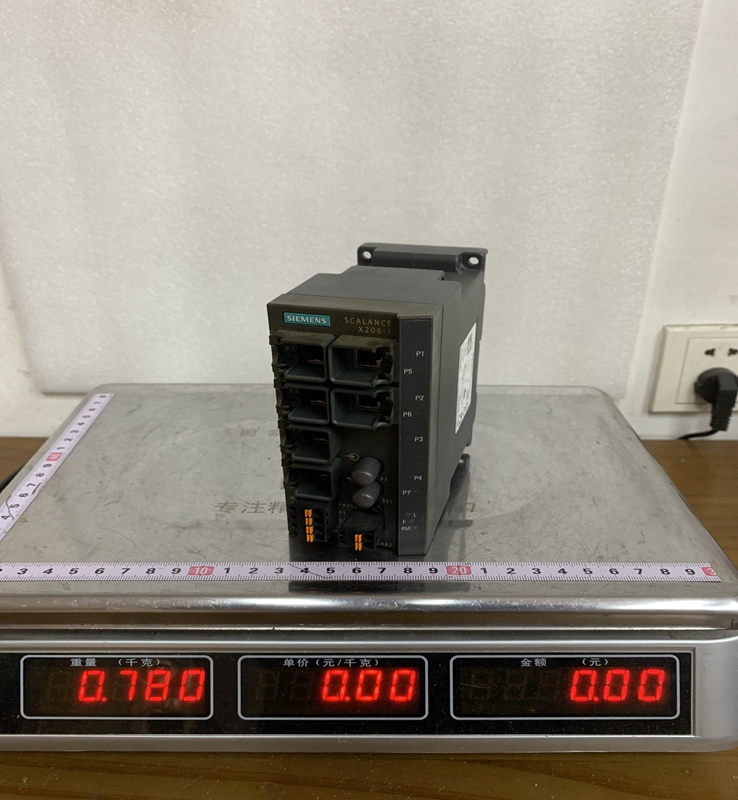

6GK5206-1BB10-2AA3 Siemens Basis unit

Brand：SIEMENS Model number：6GK5206-1BB10-2AA3

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The SCALANCE X206-1 acts as a centralized or distributed networking hub designed for tough industrial environments. It facilitates high-speed data exchange between Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and other field devices. Featuring a robust enclosure with a high degree of protection, it supports redundancy protocols like Ring Redundancy to ensure zero-downtime communication in mission-critical applications. The integrated PROFINET diagnostics allow for seamless network status monitoring directly within the TIA Portal or Siemens engineering framework.

Product Parameters

Product Type: SCALANCE X206-1 Managed Industrial Ethernet Switch
RJ45 Ports: 6 x 10/100 Mbit/s RJ45 ports for electrical connections
Fiber Optic Ports: 1 x 100 Mbit/s ST/BFOC port for multimode optical connections
Fiber Distance: Up to 3 km over multimode fiber cables
Supply Voltage: Redundant 24 VDC power supply inputs (ranging from 18 to 32 VDC)
Power Consumption: Low power dissipation, typically around 4.8 W
Diagnostics: LED status display, signaling contact with reset button, PROFINET IO device capabilities, and web-based management (WBM)
Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)
Mounting Options: Standard 35 mm DIN rail mounting, S7-300 rail mounting, or direct wall mounting
Degree of Protection: IP30 rated enclosure

Product Advantages

A major advantage of the 6GK5206-1BB10-2AA3 is its Hybrid Connectivity, which combines multiple electrical RJ45 ports with an optical ST port. This allows for long-distance, noise-immune communication across factory floors without signal degradation. The Redundant Power Supply design ensures continuous operation even if one power source fails. Furthermore, its Integrated Redundancy Manager feature enables the creation of high-speed ring topologies that automatically re-route traffic in less than 0.3 seconds if a link breaks. Its Compact and Rugged Design allows it to operate reliably in wide temperature extremes and environments exposed to high electromagnetic interference.

Important Considerations and Precautions

When installing the SCALANCE X206-1, ensure that the Fiber Optic Cable Bending Radius is respected; over-bending the ST-connected glass fiber can cause signal loss or physical cable damage. Technicians must adhere to Grounding Guidelines by ensuring the functional earth terminal is securely connected to the cabinet ground to maximize protection against surges and noise. When wiring the Redundant Power Inputs, verify that both DC lines meet the recommended voltage ranges to prevent under-voltage tripping. It is also essential to configure the C-PLUG (Configuration Plug) or backup your settings via web-based management so that network settings can be quickly restored in the event of a device swap.

Product Applications

The Siemens 6GK5206-1BB10-2AA3 is widely used across industrial networks requiring high availability and long-distance connectivity.

Factory Automation: Connecting distributed I/O stations, drive systems, and PLCs across manufacturing lines.
Process Industry: Interfacing field devices over long distances using optical fiber in noise-heavy or hazardous processing plants.
Transportation and Infrastructure: Managing network communication in tunnel controls, railway signaling systems, and traffic monitoring systems.
Wind and Energy Generation: Routing operational data from remote wind turbines back to central monitoring stations using interference-free fiber links.
Water and Wastewater: Interfacing remote pumping stations and filtration plants with central control rooms across large geographic areas.
