40LP32A SIEMENS

40LP32A Siemens Basis unit

Brand：SIEMENS Model number：40LP32A

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

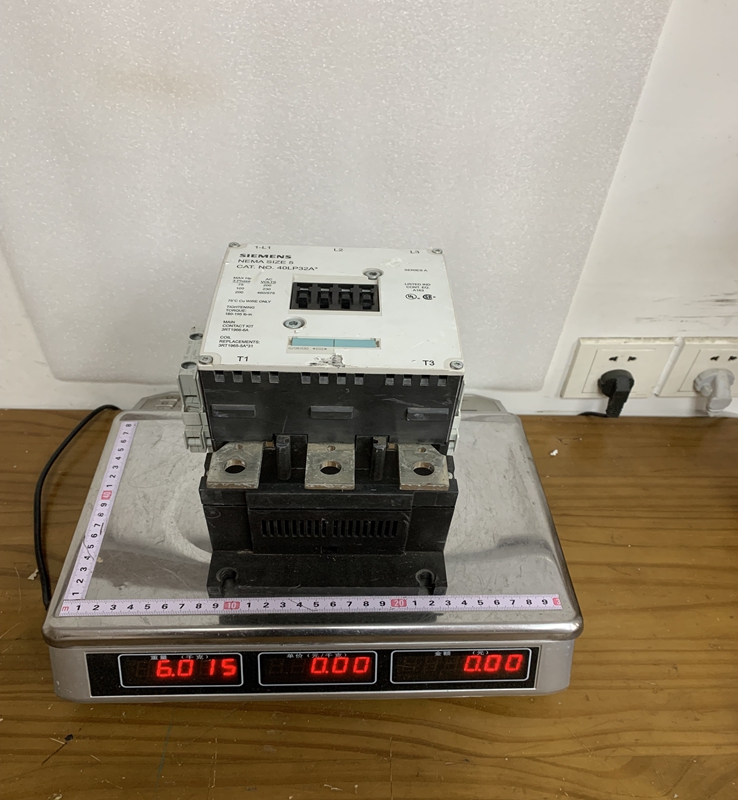

Product Dimensions：

The Siemens 40LP32A is an open-type heavy-duty motor controller built to NEMA standards, making it highly durable for industrial applications. It features a rugged frame size—typically a NEMA Size 2.5 or 3 depending on the exact series revision—capable of handling high inrush currents and continuous motor loads. The unit comes equipped with a $120 \text{ VAC}$ control coil as standard for easy integration into standard control circuits. The integrated overload relay monitors motor current and trips if an overcurrent condition persists, guarding against insulation damage and motor winding burnout. Its modular design allows for the addition of auxiliary contacts and field-installable accessories like pushbuttons or selector switches.

Product Parameters

Product Type: Non-reversing NEMA magnetic motor starter
NEMA Size: Size 2.5 / 3
Continuous Ampere Rating: $90 \text{ A}$ continuous current capacity
Coil Voltage: $120 \text{ VAC}$ at $60 \text{ Hz}$ / $110 \text{ VAC}$ at $50 \text{ Hz}$
Max Horsepower Rating at 3-Phase 200V: $25 \text{ HP}$
Max Horsepower Rating at 3-Phase 230V: $30 \text{ HP}$
Max Horsepower Rating at 3-Phase 460V/575V: $50 \text{ HP}$
Enclosure Type: Open style (requires installation inside a protective electrical cabinet)
Number of Poles: 3 power poles
Overload Relay Type: Bimetallic ambient-compensated thermal overload relay (or solid-state overload depending on configuration)
Reset Type: Selectable manual or automatic reset

Product Advantages

A key advantage of the Siemens 40LP32A is its Exceptional Durability. NEMA-rated starters are engineered with generous design margins, allowing them to withstand frequent start-stop cycles, heavy inductive loads, and severe electrical surges better than standard IEC starters. The Ambient-Compensated Overload Protection ensures reliable tripping characteristics regardless of temperature fluctuations in the surrounding electrical enclosure, preventing nuisance trips in hot summer months or delayed trips in cold environments. The Gravity Dropout Design of the contactor mechanism provides rapid arc quenching and positive contact separation when de-energized, minimizing contact wear and extending mechanical life. Furthermore, the Easy Field Serviceability allows maintenance technicians to easily inspect and replace contacts, coils, or overload heaters without replacing the entire starter assembly.

Important Considerations and Precautions

When installing and maintaining the Siemens 40LP32A, it is critical to verify that the Control Coil Voltage strictly matches the $120 \text{ VAC}$ supply; applying incorrect control voltage can lead to coil failure or chatter. Since this unit is an Open-Type starter, it must be installed inside an enclosure with an appropriate NEMA rating (such as NEMA 1, 4, or 12) to protect against dust, water, and accidental human contact. Proper Overload Heater Selection or Current Setting is essential; the overload relay must be calibrated strictly according to the motor's Full Load Amps (FLA) and Service Factor (SF) to ensure adequate thermal protection. Always ensure that the power feed is de-energized and locked out before performing maintenance or replacing contacts. Finally, make sure all terminal screws are torqued to manufacturer specifications to prevent loose connections, high-resistance heating, and potential electrical fires.

Product Applications

The Siemens 40LP32A motor starter is deployed across heavy industrial and commercial settings where robust, full-voltage motor starting is required.

Industrial Water Pumps: Controlling high-capacity supply, booster, and wastewater pumps in municipal and industrial treatment plants.
HVAC Chiller and Blower Motors: Driving large air-handling units, commercial rooftop fans, and cooling tower pumps.
Conveyor Systems: Operating heavy-duty belt conveyors and bulk material handling systems in mining, aggregate, and manufacturing facilities.
Compressor Control: Starting and protecting large air compressors and refrigeration units under heavy load conditions.
Industrial Machinery: Powering heavy machine tools, crushers, mixers, and industrial agitators in process industries.
