6ES7322-1HF10-0AA0 SIEMENS

6ES7322-1HF10-0AA0 Siemens Basis unit

Brand：SIEMENS Model number：6ES7322-1HF10-0AA0

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

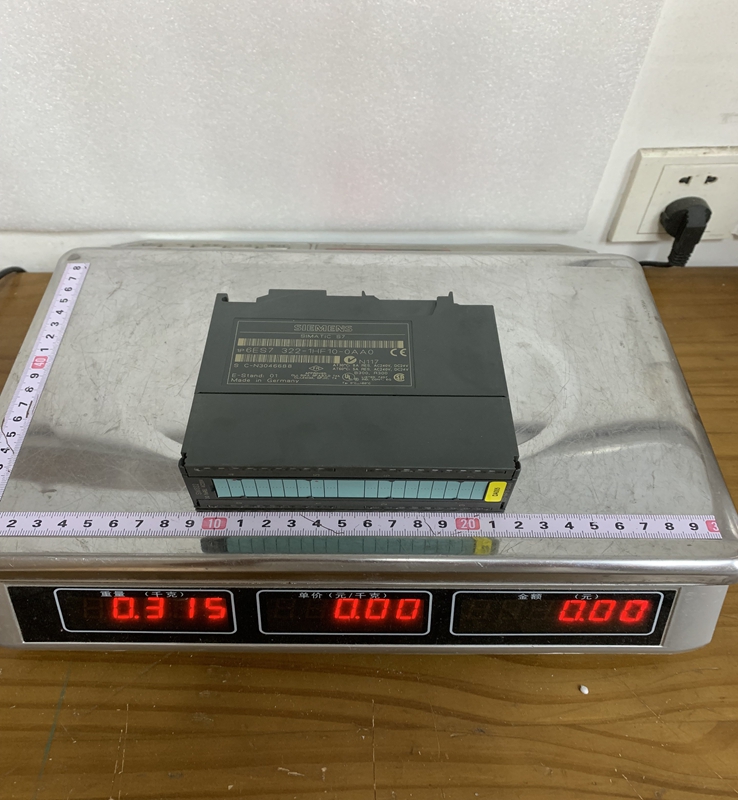

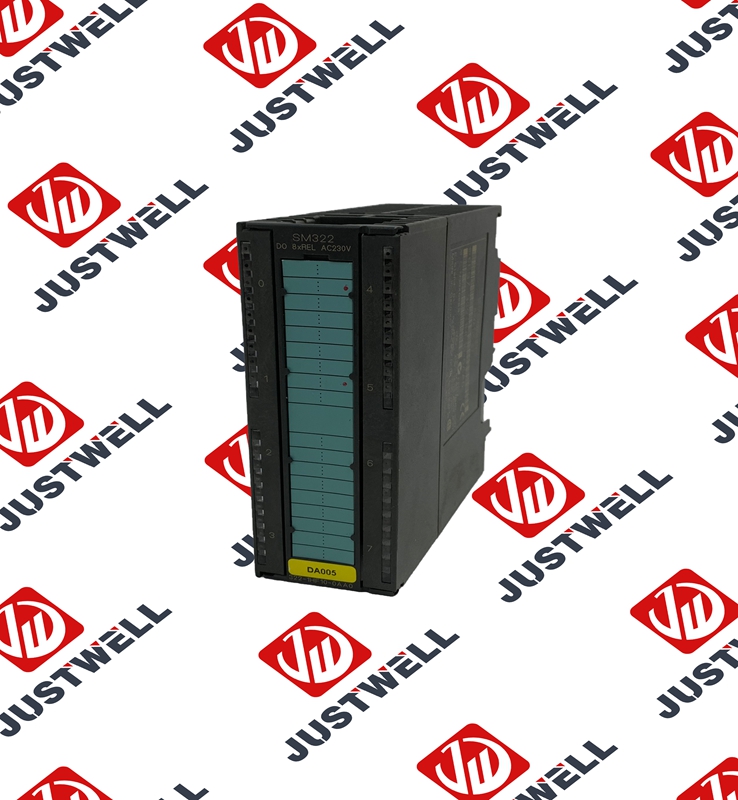

The SM 322 6ES7322-1HF10-0AA0 module acts as a switching interface within the SIMATIC S7-300 system. It features 8 electromechanical relay outputs capable of handling both direct current (DC) and alternating current (AC) loads. The module mounts directly onto the standard S7-300 DIN rail and connects to the CPU or expansion rack via the backplane bus connector. Field wiring connects to a 40-pole front connector, which allows easy replacement of the module without disturbing existing field wiring. Front panel LED indicators provide visual feedback for channel status and operational health.

Product Parameters

Module Designation: SIMATIC S7-300 Digital Output Module SM 322.
Part Number (MLFB): 6ES7322-1HF10-0AA0.
Number of Outputs: 8 Digital Outputs (relay contacts).
Galvanic Isolation: Isolation between relay outputs and the backplane bus.
Rated Load Voltage: 24 V DC to 120 V DC or 230 V AC.
Continuous Thermal Current: Up to 5 A per output channel.
Minimum Load Current: 5 mA.
Maximum Lamp Load: 1500 W at 230 V AC.
Switching Frequency: Maximum 2 Hz for resistive loads, 0.5 Hz for inductive loads, and 10 Hz mechanical.
Backplane Bus Current Consumption: Maximum 40 mA at 5 V DC.
Power Loss: 3.2 W typical.
Required Front Connector: 1 x 40-pole front connector (screw-type or spring-loaded).
Dimensions: 40 mm width x 125 mm height x 120 mm depth.
Net Weight: Approximately 0.37 kg.

Product Advantages

The primary advantage of the 6ES7322-1HF10-0AA0 module is its high current-carrying relay design, which allows direct switching of AC and DC loads up to 5 A without requiring intermediate interposing relays.

Robust galvanic isolation ensures effective signal decoupling, protecting sensitive internal CPU electronics from high-voltage spikes, electrical noise, and ground loops common in industrial environments.

The compact 40 mm module footprint conserves space inside control cabinets while providing robust switching capabilities across 8 independent channels.

Integration into the SIMATIC S7-300 system is straightforward, offering full compatibility with STEP 7 and TIA Portal engineering tools for hardware configuration and diagnostics.

Channel-specific status LEDs on the front panel simplify visual inspection during commissioning, maintenance, and fault diagnosis.

Important Considerations and Precautions

When wiring relay outputs to inductive loads such as solenoid valves or motor coils, external arc suppression devices (such as RC elements or freewheeling diodes) should be installed to extend relay contact service life.

Exceeding the rated switching frequency limits (2 Hz for resistive loads, 0.5 Hz for inductive loads) will accelerate mechanical and electrical contact wear.

Always verify that power to the module and field wiring is de-energized before inserting, removing, or wiring the 40-pole front connector to avoid electrical shock or equipment damage.

Ensure proper cabinet ventilation to maintain operating temperatures within specified limits, especially when running high continuous currents through multiple channels simultaneously.

Adhere strictly to total permissible output current limits across output groups to prevent overheating internal circuit paths.

Product Applications

The 6ES7322-1HF10-0AA0 digital output module is deployed across diverse industrial automation sectors requiring mixed voltage or high-current output driving.

Motor and Contactor Control: Direct actuation of three-phase motor contactors, starters, and heavy-duty relay coils in power distribution panels.
Solenoid Valve Actuation: Driving pneumatic and hydraulic solenoid valves in water treatment plants, chemical process lines, and oil and gas facilities.
Industrial Lighting and Signaling: Controlling high-power indicator lamps, alarm sirens, strobe lights, and heating elements.
AC/DC Interfacing: Serving as an isolated interface between low-voltage PLC control logic and 230 V AC power equipment.
Machine Building: Controlling mechanical actuators, lock solenoids, and auxiliary power circuits on packaging machinery, presses, and material handling systems.
