6ES7361-3CA01-0AA0 SIEMENS

6ES7361-3CA01-0AA0 Siemens Basis unit

Brand：SIEMENS Model number：6ES7361-3CA01-0AA0

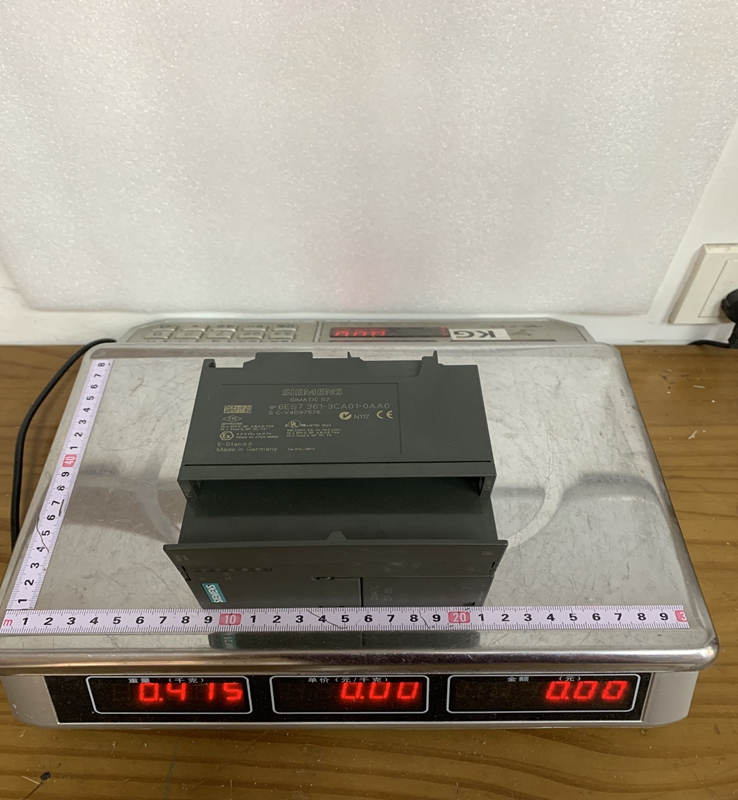

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

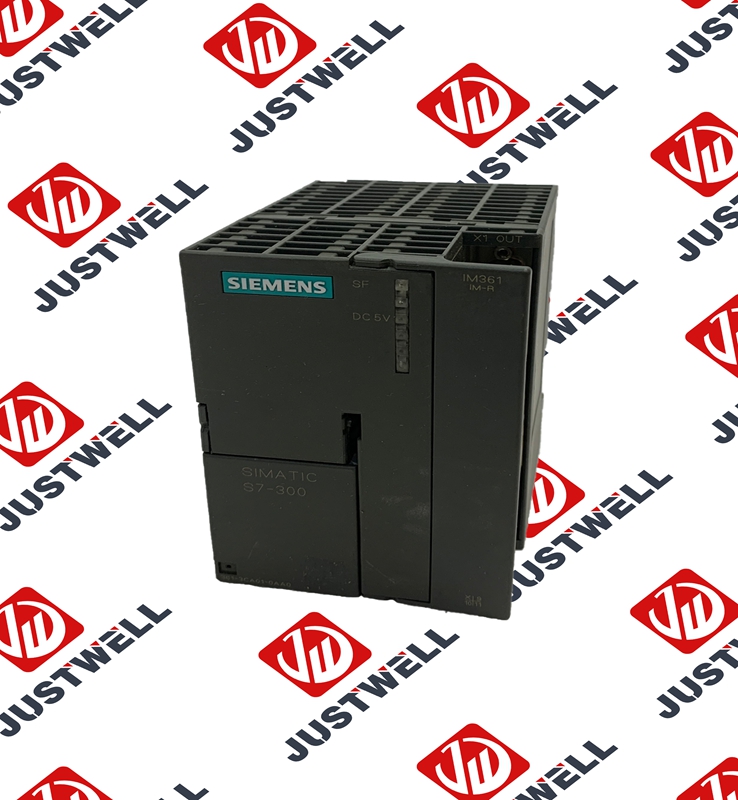

The 6ES7361-3CA01-0AA0 interface module acts as a receiver in multi-rack S7-300 controller setups. While the central rack utilizes an IM 360 transmitter module (or an integrated interface on specific CPUs), each expansion rack (Racks 1 through 3) requires an IM 361 receive module installed in slot 3. The IM 361 receives control data and signals from the preceding rack via a 368 connecting cable and redistributes them across the local backplane bus. Additionally, the IM 361 converts an incoming external 24 VDC supply into 5 VDC power to energize the backplane bus for the expansion modules installed on that specific rack.

Product Parameters

Product Type: SIMATIC S7-300 Interface Module IM 361
Part Number: 6ES7361-3CA01-0AA0
Supply Voltage: 24 VDC (acceptable range of 20.4 VDC to 28.8 VDC)
Current Consumption: Maximum 0.5 A at 24 VDC
Power Loss: Typically 5 W
Output Current to Backplane Bus: 0.8 A at 5 VDC
Maximum System Expansion: Up to 3 expansion racks (Racks 1, 2, and 3)
Maximum Distance Between Racks: 10 meters using the 368 connecting cable
Dimensions: 80 mm Width, 125 mm Height, 120 mm Depth
Weight: Approximately 505 grams

Product Advantages

A key advantage of the 6ES7361-3CA01-0AA0 is its Modular Scalability. It enables an S7-300 automation system to expand up to 32 I/O modules across four total racks, significantly increasing system capacity without upgrading to a larger CPU platform.

The Integrated Backplane Power Generation is another major benefit, as the module supplies the necessary 5 VDC power directly to the expansion bus, preventing logic voltage drops across longer distance cable runs.

Its High Distance Flexibility allows expansion racks to be placed up to 10 meters away from the central controller, making it easier to distribute I/O racks across different sections of an electrical cabinet or machine frame.

The Standardized Form Factor ensures easy mounting on standard S7-300 DIN rails with simple plug-in connections, minimizing wiring overhead and maintenance downtime.

Important Considerations and Precautions

When installing and commissioning the 6ES7361-3CA01-0AA0, ensure that the module is strictly installed in Slot 3 of the expansion rack, as this slot is specifically reserved for interface modules in S7-300 hardware configurations.

Always observe the External 24 VDC Power Requirement; the module requires its own dedicated 24 VDC supply connected to its front terminals in order to generate the 5 VDC backplane bus voltage.

Ensure the Connecting Cable Length between adjacent interface modules does not exceed 10 meters, and use only official Siemens 368 connecting cables to maintain signal integrity and shielding against industrial noise.

Always Turn Off System Power before plugging or unplugging the connecting cables or changing module configurations to prevent damage to the backplane communication ICs.

Verify that the total power consumption of all modules on the expansion rack does not exceed the 0.8 A at 5 VDC output limit provided by the IM 361.

Product Applications

The Siemens 6ES7361-3CA01-0AA0 is widely deployed in medium-to-large industrial automation projects where a single S7-300 rack cannot accommodate all required modules.

Automotive Production Lines: Connecting multiple racks of digital and analog I/O modules across large robotic welding and assembly cells.
Packaging Machinery: Expanding I/O counts for high-density sensor arrays, servo drives, and solenoid manifolds on complex packaging equipment.
Water and Wastewater Facilities: Distributed I/O rack management in pump stations and filtration monitoring cabinets.
Material Handling Systems: Linking multiple remote or localized I/O racks along extensive conveyor networks and automated sorting systems.
Process Control Systems: Managing multi-rack signal acquisition for temperature, pressure, and flow instrumentation in chemical processing applications.
