6ES7360-3AA01-0AA0 SIEMENS

6ES7360-3AA01-0AA0 Siemens Basis unit

Brand：SIEMENS Model number：6ES7360-3AA01-0AA0

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

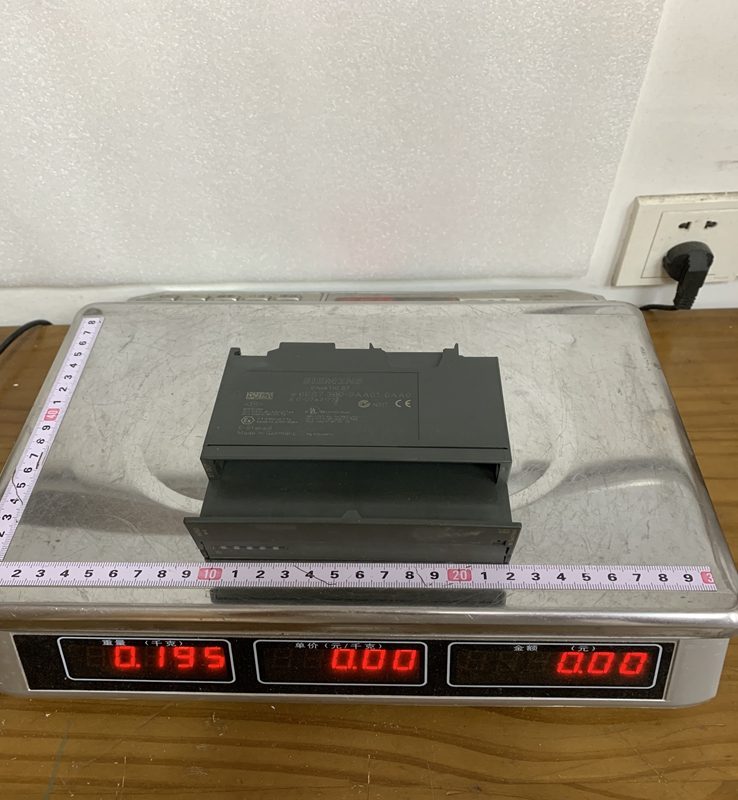

Product Dimensions：

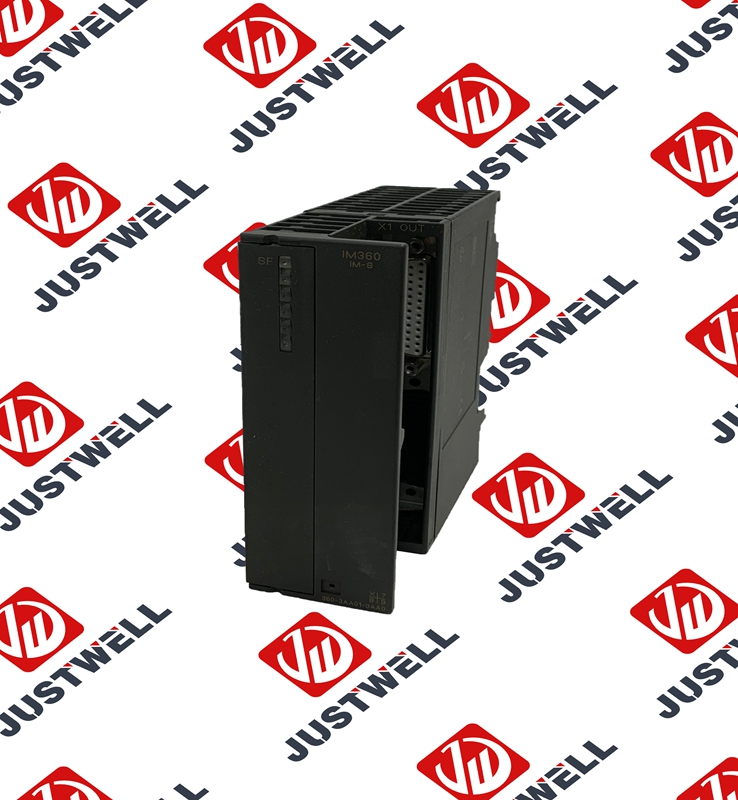

The SIEMENS 6ES7360-3AA01-0AA0 is a SIMATIC S7-300 Send Interface Module (IM 360). It is engineered to enable multi-rack configurations for SIMATIC S7-300 programmable logic controller (PLC) systems. Installed directly in the central rack (Rack 0), this interface module serves as the master communication hub that connects the central processing unit (CPU) to up to three expansion racks (Racks 1 through 3).

By establishing a reliable high-speed link with receiver interface modules (IM 361) in the expansion racks, the IM 360 enables the system to extend its backplane bus. This allows users to expand the system's input and output module capacity beyond the physical limit of a single mounting rail, making it an essential component for complex or large-scale automation architectures.

Product Parameters

Product Type: Send Interface Module (IM 360)
Part Number: 6ES7360-3AA01-0AA0
Product Family: SIMATIC S7-300
System Slot Position: Central Rack (Rack 0), Slot 3
Maximum Expansion Capacity: Up to 3 expansion racks (requires IM 361 in each expansion rack)
Maximum Distance: Up to 10 meters total length to the furthest expansion rack
Cable Type Required: SIMATIC 368 interconnecting cable
Current Consumption: 350 mA typical from the 5 V DC backplane bus
Power Loss: Approximately 1.8 W typical
Diagnostics: Integrated LED display for communication and system bus faults
Dimensions (W x H x D): 40 mm x 125 mm x 120 mm
Weight: Approximately 250 g

Product Advantages

High System Scalability: Enables expansion from a single 8-module rack system up to a multi-rack system housing up to 32 I/O modules across four total racks.
Seamless Performance: Extends the central CPU backplane bus without noticeable communication latency or loss in data transmission integrity.
Spatial Flexibility: Allows expansion racks to be mounted up to 10 meters away from the central rack, optimizing space utilization inside control cabinets.
Simplified Installation: Offers simple plug-and-play mounting on standard S7-300 DIN rails with automatic parameter configuration via STEP 7 software.
Robust Connection: Utilizes heavy-duty pre-assembled cables designed to minimize signal interference in harsh industrial environments.

Precautions

Strict Slot Assignment: The IM 360 must always be installed in Slot 3 of the central rack (Rack 0), directly adjacent to the CPU module.
Power Budgeting: Verify that the 5 V DC backplane power provided by the CPU or power supply module can support the 350 mA current draw of the IM 360 along with other local modules.
Cable Integrity: Always use original Siemens SIMATIC 368 connecting cables. Do not exceed the maximum allowed length of 10 meters.
Power Off During Servicing: Never plug or unplug the IM 360 module or connect/disconnect interface cables while the power supply is switched on.
Environmental Protection: Ensure operating temperatures remain within the standard specified ranges (0°C to 60°C) and protect the module from excessive dust, moisture, and vibration.

Product Applications

Distributed Machinery Control: Suitable for large automated manufacturing equipment, packaging machines, and assembly lines where extensive I/O capacity is required near a central controller.
Industrial Process Control: Widely used in water treatment facilities, chemical processing systems, and food and beverage processing plants requiring hundreds of analog and digital signal channels.
Control Panel Expansion: Ideal for retrofitting or upgrading existing S7-300 control cabinets when additional module space on the primary rail is no longer available.
Infrastructure and Building Automation: Applied in large-scale HVAC, energy management, and conveyor automation systems distributed across control enclosures.
