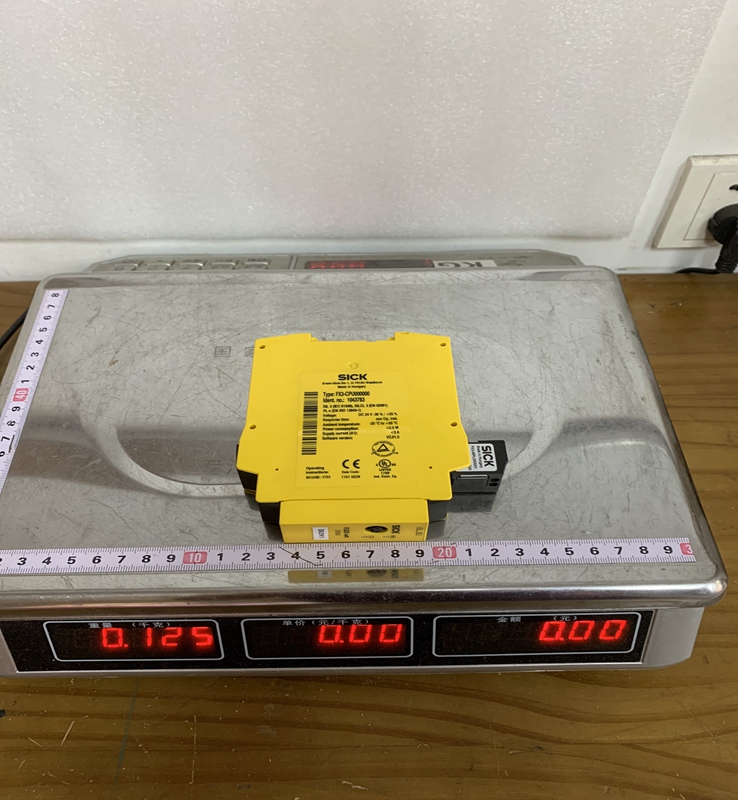

FX3-CPU000000 SICK

FX3-CPU000000 SICK Output I/O module

Brand：SICK Model number：FX3-CPU000000

Country of origin:Germany Product weight：0.55kg

HS code：8538900000

Inquire Now

Product Details：

Product Dimensions：

The FX3-CPU000000 acts as the core of the Flexi Soft safety system, responsible for executing the safety logic programmed by the user. It is a compact, DIN-rail mounted module that communicates with expansion I/O modules, motion control modules, and fieldbus gateways via an internal backplane bus. The unit features an integrated configuration memory plug (Flexi plug) that stores the entire system program, allowing for rapid device replacement without needing a PC. It manages up to 255 safety logic blocks, making it capable of handling highly sophisticated safety matrices that involve multiple emergency stops, safety doors, light curtains, and laser scanners.

Product Parameters

Product Family: Flexi Soft
Module Type: Main CPU module
Supply Voltage: $24 \text{ VDC}$ (permissible range $16.8 \text{ VDC}$ to $30 \text{ VDC}$ )
Power Consumption: Typical $2.5 \text{ W}$
Safety Integrity Level (SIL): SIL 3 (IEC 61508)
Performance Level (PL): PL e (ISO 13849-1)
Category: Category 4 (ISO 13849-1)
Memory Plug (Flexi Plug): Included, uses non-volatile memory for configuration storage
Internal Bus Extension: Connection up to 12 expansion modules plus gateways
Configuration Interface: RS-232 via an RJ45 port on the front panel
Protection Class: IP20 (IEC 60529)
Ambient Operating Temperature: $-25\text{°C}$ to $55\text{°C}$

Product Advantages

A major advantage of the FX3-CPU000000 is its Exceptional Modularity. Instead of deploying separate standalone relays for every safety device, users can expand the system exactly as needed with specialized I/O modules, reducing overall hardware footprint. The Flexi Soft Designer Software offers an intuitive graphical interface for programming, which features free logic configuration, drag-and-drop function blocks, and simulation modes that drastically reduce validation and commissioning time.

The inclusion of the Removable Flexi Plug memory module is another distinct benefit; if a CPU needs to be replaced, maintenance staff can simply swap the plug into a new unit, minimizing machine downtime. Furthermore, the system provides Robust Diagnostic Functions through LEDs on the front panel and digital communication gateways, allowing operators to rapidly pinpoint faults on the factory floor.

Important Considerations and Precautions

When configuring and deploying the FX3-CPU000000, it is critical that a Thorough Risk Assessment is conducted on the machinery prior to establishing the safety program to verify that all functional paths meet required safety parameters. Power supply wiring must be executed carefully; ensure that the $24 \text{ VDC}$ supply originates from a PELV or SELV power supply to maintain adequate isolation and protection against electrical shock.

The Total Current Consumption of all expansion modules must be calculated beforehand to ensure it does not exceed the limits of the power distribution path. When expanding the system, the maximum module limit of 12 must not be exceeded. Because the module is rated at IP20, it Must Be Installed in a Protected Control Cabinet that is free from conductive dust, moisture, and excessive humidity. Lastly, ensure that the RJ45 port is only used with compatible SICK configuration cables, as standard Ethernet cables can cause electrical damage to the communication interface.

Product Applications

The SICK FX3-CPU000000 is extensively deployed across automated industries where human-machine interaction requires stringent safety protocols.

Robotic Work Cells: Coordinating safety signals from area laser scanners, interlocking gates, and robot enable switches to safely slow down or halt robotic motion when an operator enters a zone.
Packaging and Palletizing Lines: Integrating multiple muteable light curtains, emergency stops, and guard switches across extensive conveyor setups.
Machine Tools and CNC Presses: Managing dual-hand control systems, safety light curtains, and hydraulic valve monitoring for stamping and cutting operations.
Material Handling and Logistics: Providing onboard safety logic control for Automated Guided Vehicles (AGVs) and autonomous mobile cranes to ensure collision avoidance.
Automotive Assembly: Overseeing safety architectures for complex multi-station assembly lines that require segmented or zoned safety shutdowns.
