FX3-XTI084002 SICK

Product Dimensions：

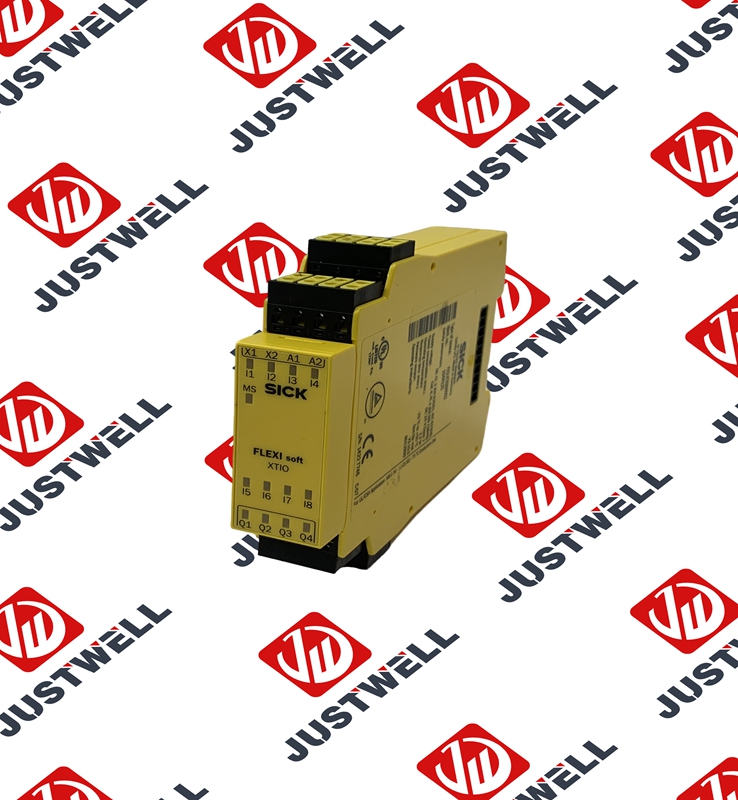

The FX3-XTI084002 is a digital expansion unit that communicates with the Flexi Soft main module via the FLEXBUS+ internal backplane. It serves as an interface for safety-related sensors and actuators, allowing users to scale their safety systems based on the specific requirements of the application. The module is housed in a slim 22.5 mm wide enclosure, making it ideal for space-constrained control cabinets. It is rated for use in high-risk environments, meeting the requirements for SIL3 (IEC 61508) and PL e (EN ISO 13849), which is the highest level of functional safety.

Product Parameters

The technical specifications of the FX3-XTI084002 are optimized for high reliability and rapid response.

• Safety Inputs: 8 digital safety inputs.

• Safe Outputs: 4 safety semiconductor outputs (PNP, short-circuit protected, cross-circuit monitored).

• Test Outputs: 2 test signal outputs (X1, X2) used for monitoring sensor cascades and detecting cross-circuits.

• Supply Voltage: 24 V DC (range of 16.8 V to 30 V DC).

• Power Consumption: Approximately 2.2 W (internal consumption via FLEXBUS+).

• Response Time: Fast shut-off capability of 8 ms to 9 ms.

• Safety Rating: Category 4, PL e (EN ISO 13849-1), SIL3 (IEC 61508).

• Connection Type: Plug-in spring terminals (ensures vibration resistance and easy maintenance).

• Protection Class: IP20 for terminals and IP40 for the housing.

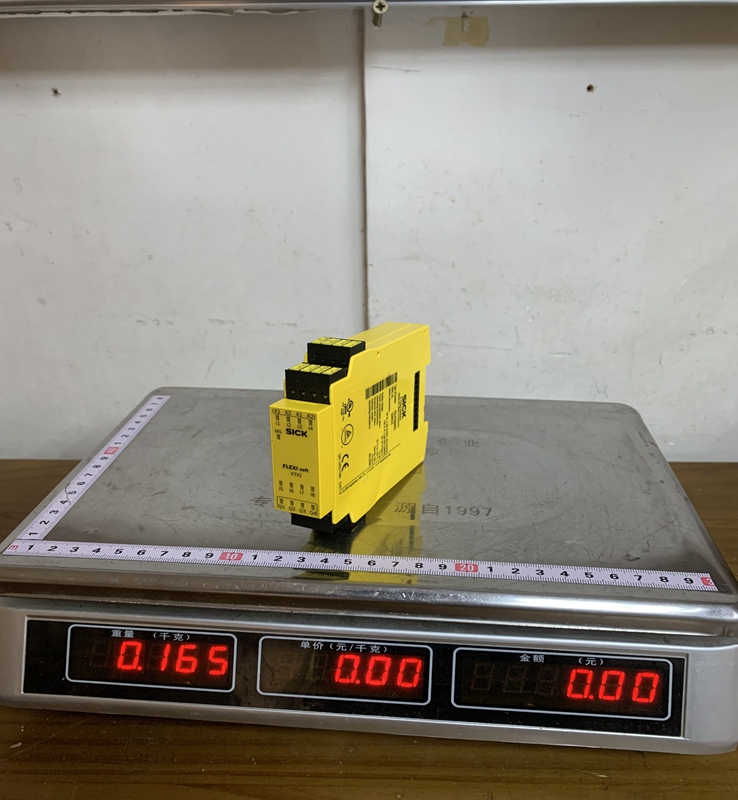

• Dimensions: 22.5 mm x 96.5 mm x 120.6 mm.

• Weight: 164 g.

Product Advantages

The FX3-XTI084002 offers several key benefits for industrial automation and machine safety.

• Modular Flexibility: The module allows for cost-effective scaling of safety I/O, meaning you only pay for the inputs and outputs you actually need.

• Rapid Response: The "Fast Shut-Off" feature significantly reduces the total safety response time. This allows for smaller safety distances between machinery and personnel, ultimately reducing the overall footprint of the machine.

• Comprehensive Diagnostics: Each output is cross-circuit monitored and short-circuit protected. Through the Flexi Soft Designer software, users can access detailed diagnostic data, which reduces troubleshooting time and machine downtime.

• Easy Integration: It is Flexi Loop compatible, allowing for the series connection of multiple safety switches and sensors while maintaining high-level diagnostic capabilities for each individual device.

• Space Saving: Its compact design allows for high-density I/O configurations on a standard DIN rail.

Important Considerations

Users should observe the following precautions during installation and operation.

• Power Supply Limits: The current of the power supply that powers the main unit must be limited to a maximum of 4 A, either through the power supply itself or via an external fuse.

• PELV/SELV Requirement: To maintain safety integrity, only use Protective Extra Low Voltage (PELV) or Safety Extra Low Voltage (SELV) power supplies.

• Configuration Tooling: The module must be configured using the Flexi Soft Designer software. Always ensure you are using the latest version of the software and firmware to ensure compatibility.

• Environmental Limits: Operating temperature should be maintained between -25 °C and +55 °C. Avoid installing in environments with condensing humidity.

• Wiring Standards: Ensure that wiring is performed by qualified personnel according to local electrical safety standards and the specific connection diagrams provided by SICK.

Product Applications

The FX3-XTI084002 is utilized across various industries where human-machine interaction requires stringent safety measures.

• Robotics and AGVs: Monitoring emergency stops, laser scanners, and pressure sensors on Autonomous Mobile Robots and stationary robotic arms.

• Material Handling: Ensuring safety in conveyor systems, palletizers, and sorting machines.

• Packaging Machinery: Protecting personnel from moving parts in high-speed wrapping and filling equipment.

• Metalworking and Presses: Managing two-hand control systems and safety light curtains to prevent accidents during high-force operations.

• Modular Machine Concepts: Providing a decentralized safety solution for large manufacturing lines that consist of multiple independent stations.
