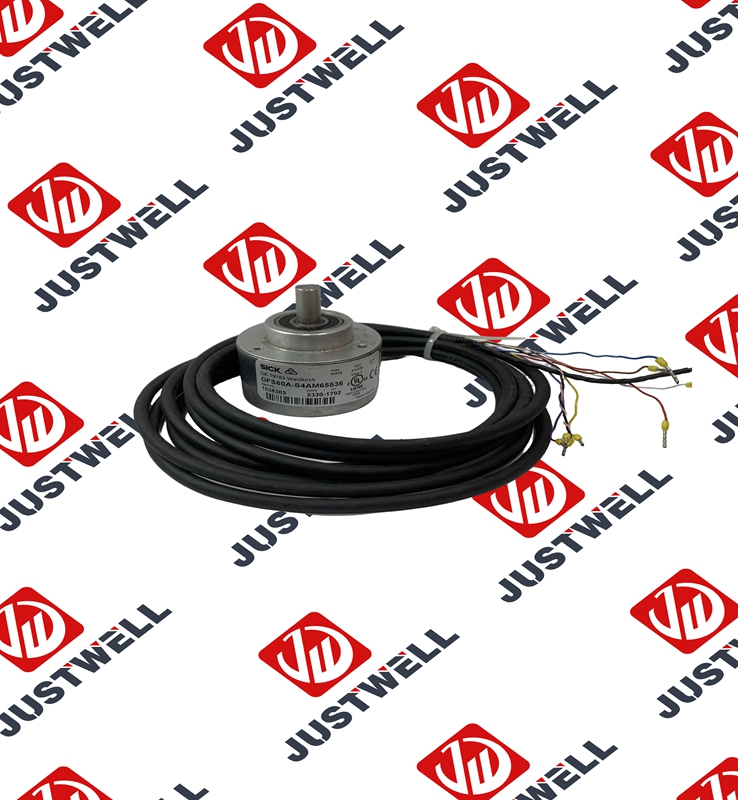

DFS60A-S4AM65536 SICK

Product Dimensions：

The DFS60A-S4AM65536 belongs to the "A" performance class, which represents SICK's high-end incremental encoders capable of up to 65,536 pulses per revolution. This specific model features a solid shaft design with a face mount flange, providing a robust mechanical interface for connection to motors or machine shafts. The "S4" in the part number typically denotes a 10 mm shaft diameter, while the "AM" indicates its specific electrical and connection configuration, often involving a wide voltage range and a professional-grade connector.

Product Parameters

• Pulses per Revolution (PPR): 65,536 (16-bit resolution)

• Shaft Type: Solid shaft, face mount flange

• Shaft Diameter: 10 mm

• Shaft Length: 19 mm

• Communication Interface: Incremental

• Interface Detail: TTL / HTL (programmable/configurable)

• Supply Voltage: 4.5 V to 32 V DC

• Connection Type: Male connector, M12, 8-pin, radial

• Maximum Output Frequency: $\le 820 \text{ kHz}$

• Operating Speed: $\le 9,000 \text{ min}^{-1}$

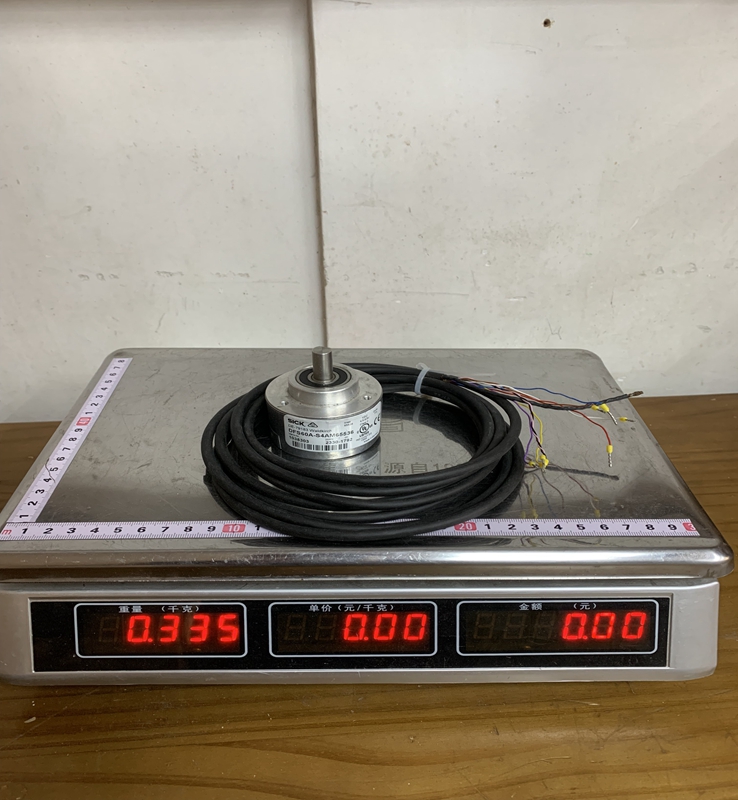

• Mass/Weight: Approximately 0.3 kg

• Housing Material: Aluminum die-cast

• Shaft Material: Stainless steel

• Enclosure Rating: IP67 (housing side), IP65 (shaft side)

• Operating Temperature: $-40 \text{ °C}$ to $+100 \text{ °C}$

• Shock Resistance: 100 g, 6 ms (per EN 60068-2-27)

• Vibration Resistance: 30 g, 10 Hz to 2,000 Hz (per EN 60068-2-6)

Product Advantages

• High Precision: With a resolution of up to 16 bits (65,536 PPR), this encoder is suitable for applications requiring extremely accurate positioning and velocity control.

• Programmability: Users can program the output signal level (TTL or HTL), the zero pulse width, and the zero pulse position, allowing one device to serve as a replacement for many different fixed-parameter encoders.

• Robust Mechanical Design: The large distance between the ball bearings ensures high stability and a long service life even under significant mechanical loads.

• Wide Temperature Range: Reliable operation from $-40 \text{ °C}$ to $+100 \text{ °C}$ allows for deployment in extreme industrial climates.

• Excellent Protection: The IP67 rating ensures the device is protected against dust and water ingress, making it ideal for harsh factory floors.

Important Considerations (Precautions)

• Wiring Protection: Ensure that the power is switched off before connecting or disconnecting the M12 connector to prevent electrical damage to the encoder or the controller.

• Shaft Alignment: Use a suitable flexible coupling to connect the encoder shaft to the drive shaft. Improper alignment can lead to excessive bearing wear and premature failure.

• Self-Heating: When operating at high speeds, allow for self-heating of approximately 3.3 K per 1,000 rpm when calculating the ambient temperature limits.

• Programming Tool: To change the factory settings (like PPR or output level), a SICK programming tool such as the PGT-08-S or PGT-10-Pro is required.

• Electrical Noise: Use shielded cables and ensure proper grounding of the encoder housing to minimize interference in environments with high electromagnetic noise.

Product Applications

The DFS60A-S4AM65536 is commonly used in high-performance motion control systems across various sectors.

• Machine Tools: Precise positioning for CNC machines, milling units, and lathes.

• Packaging Industry: Synchronizing conveyor speeds and controlling cutting or labeling operations in high-speed packaging lines.

• Printing Machines: Maintaining strict color registration and tension control in printing presses.

• Textile Machinery: Managing the high-speed rotation and synchronization of spindles and looms.

• Robotics: Providing high-resolution feedback for robotic arm joints and AGV (Automated Guided Vehicle) drive systems.
