XPSMC32ZC SCHNEIDER

XPSMC32ZC SCHNEIDER Input module

Brand：SCHNEIDER Model number：XPSMC32ZC

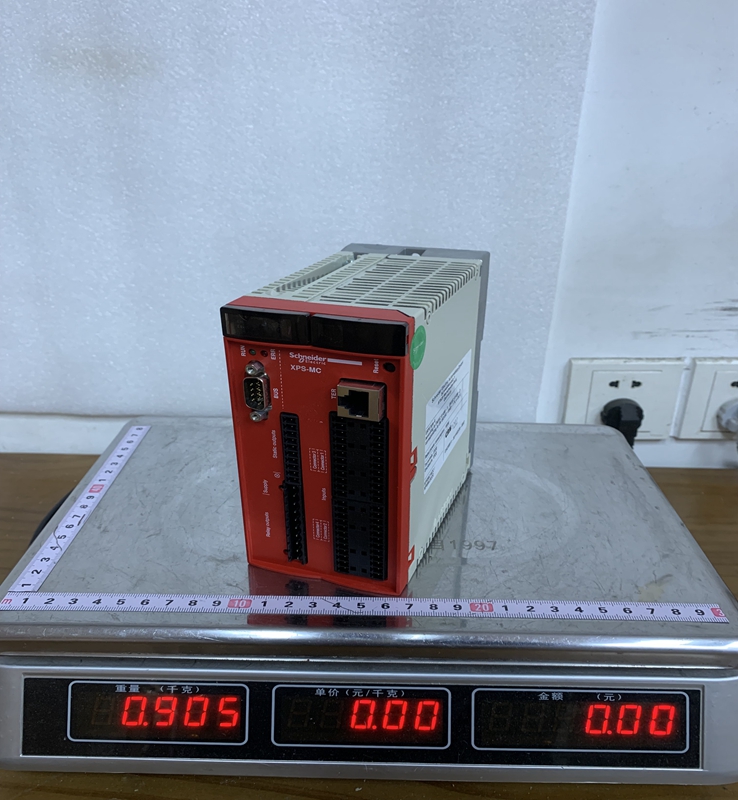

Country of origin: France Product weight：0.55kg

HS code：853710119

Inquire Now

Product Details：

Product Dimensions：

The XPSMC32ZC operates as a programmable safety controller, serving as a powerful alternative to implementing numerous individual safety relays. It features a compact, high-density design equipped with a built-in Monomode Fiber Optic communication port (indicated by the "ZC" designation), which is tailored for reliable, noise-immune data transmission over longer distances or between distinct electrical cabinets. The system is fully configurable using Schneider's XPS Software, allowing engineers to select from a vast library of pre-certified safety function blocks—such as emergency stops, light curtains, and safety mats—and link them logically to drive safety-rated outputs.

Product Parameters

Product Range: Preventa Safety Automation
Product Type: Configurable Safety Controller
Safety Inputs: 32 independent digital safety inputs
Safety Outputs: 4 safety-related solid-state outputs
Solid-State Diagnostics Outputs: Up to 12 configurable non-safety auxiliary outputs
Supply Voltage: $24 \text{ VDC}$ (with standard operating tolerances)
Communication Interface: Integrated Monomode Fiber Optic port for network/inter-cabinet communication
Safety Integrity Level (SIL): Suitable for applications up to SIL 3 (IEC 61508 / IEC 62061)
Performance Level (PL): Category 4, Performance Level e (PL e) according to EN/ISO 13849-1
Degree of Protection: IP20 (intended for installation within a standard control cabinet)
Mounting: Standard DIN rail or panel surface mounting

Product Advantages

A cornerstone advantage of the XPSMC32ZC is its Massive Input Capacity. With 32 safety inputs available on a single footprint, it significantly minimizes cabinet space and eliminates the complex inter-wiring that would normally be required for dozens of discrete safety relays. The Configurable Software Environment vastly simplifies engineering, enabling rapid modifications to the safety logic without requiring physical hardware rewiring.

The inclusion of the Monomode Fiber Optic Interface provides absolute immunity to electromagnetic interference (EMI), which is crucial when routing safety communication cables alongside high-power motor lines or through high-voltage areas. Furthermore, its Comprehensive Diagnostic Capabilities quickly pinpoint the exact input channel or field device that caused a trip, drastically lowering machine downtime during troubleshooting.

Important Considerations and Precautions

When deploying the XPSMC32ZC, completing a thorough Machinery Risk Assessment is mandatory to ensure that the programmed safety logic perfectly aligns with the target PL or SIL requirement. For the fiber optic connection, special attention must be paid to the Minimum Bending Radius of the monomode cables; bending the fiber too sharply will result in severe signal attenuation and communication dropouts.

Because the unit utilizes solid-state safety outputs, users must strictly adhere to the Maximum Current Ratings per Output Channel to avoid thermal damage to the internal output transistors. External inductive loads, such as large contactor coils, must be fitted with appropriate surge suppression devices. Additionally, ensure the control cabinet provides adequate Ventilation and Cooling, as operating the unit at its maximum I/O load continuously can cause localized heating inside dense panels. Lastly, always secure the configuration with a password and maintain an up-to-date Software Backup to prevent unauthorized tampering with the safety logic.

Product Applications

The XPSMC32ZC is primarily utilized in large-scale or distributed industrial environments where numerous safety devices must interact seamlessly.

Automotive Assembly Lines: Coordinating emergency stops, light curtains, and gate switches across a series of interconnected robotic and welding workstations.
Packaging and Bottling Plants: Managing the safety interlocks for sprawling, multi-stage conveyor systems, palletizers, and high-speed wrapping machines.
Material Handling and Logistics: Protecting entry/exit points in automated storage and retrieval systems (ASRS) and tracking areas utilizing muting light curtains.
Metalworking and Stamping Presses: Executing safety logic for two-hand controls, light curtains, and hydraulic valve monitoring on heavy machinery.
Paper and Textile Mills: Overseeing safety parameters on long, linear production lines where fiber optic communication is ideal for spanning long distances between control panels without signal degradation.
