PAS600L SCHNEIDER

PAS600L SCHNEIDER Input module

Brand：SCHNEIDER Model number：PAS600L

Country of origin: France Product weight：0.55kg

HS code：853710119

Inquire Now

Product Details：

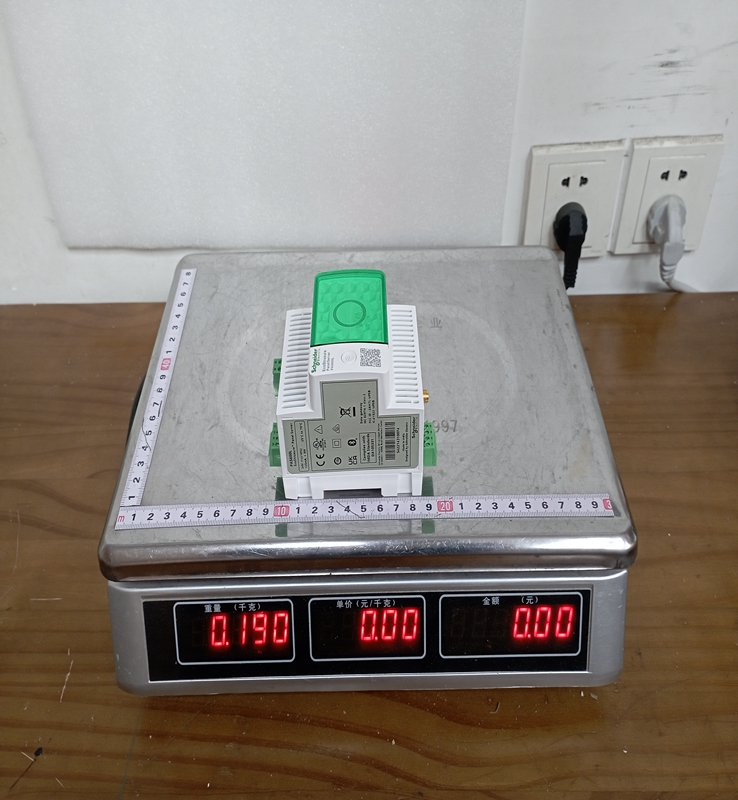

Product Dimensions：

The PAS600L functions as a wireless and wired data concentrator. It bridges the gap between field devices—such as circuit breakers, power meters, and environmental sensors—and high-level software environments like EcoStruxure Power Monitoring Expert or third-party energy management systems. The gateway is designed to optimize energy efficiency, improve electrical asset reliability, and ensure operational continuity. The "L" in the part number typically denotes the "Universal" or specific feature-rich tier within the Panel Server range, offering enhanced capabilities like data logging, custom alarming, and advanced cybersecurity features.

Product Parameters

Product Range: EcoStruxure Panel Server
Device Short Name: PAS600L
Supply Voltage: $110 \text{ V}$ to $277 \text{ VAC}$ or $110 \text{ V}$ to $277 \text{ VDC}$ (nominal operating range)
Power Consumption: Low power profile, typically under $3 \text{ W}$ to $5 \text{ W}$ during peak operation
Communication Ports: 2 Ethernet ports (RJ45, 10/100 Mbps) configured for daisy-chaining or network separation
Serial Communication: 1 Modbus RS-485 serial port with a removable screw terminal connector
Wireless Connectivity: Features an integrated radio frequency interface supporting wireless protocols (such as IEEE 802.15.4) to communicate with wireless energy sensors like PowerLogic PowerTag
Memory Capacity: Built-in flash memory for localized data logging and buffering during network outages
Mounting Mode: Clip-on installation suitable for a standard $35 \text{ mm}$ DIN rail
Protection Rating: IP20 for the front face and terminals, requiring enclosure mounting
Cybersecurity: Certified to IEC 62443-4-1 and complies with advanced security profiles including secure boot, HTTPS, and encrypted communication paths

Product Advantages

A major benefit of the PAS600L is its All-in-One Connectivity. It can simultaneously process data from traditional wired Modbus RTU instruments and modern wireless sensors, drastically reducing the hardware footprint inside the switchboard. The Dual Ethernet Ports provide great network flexibility, allowing users to separate the operational technology (OT) network from the main enterprise information technology (IT) network for security purposes.

Its Cybersecurity Robustness is another standout advantage; with built-in protection against malware injection and unauthorized access, it safely connects critical electrical infrastructure to the internet. Furthermore, the User-Friendly Web Interface eliminates the need for complex configuration software, enabling technicians to commission the gateway, discover connected meters, and set up alarms directly from a standard web browser.

Important Considerations and Precautions

When installing the PAS600L, it is critical to ensure Proper Antenna Placement if utilizing its wireless capabilities; mounting the gateway deep inside a thick, fully enclosed steel switchboard can degrade the wireless signal from PowerTag sensors, so an external antenna extension may be required. Electrical Isolation must be observed during installation; ensure all power upstream is disconnected before wiring the AC/DC power terminals to prevent shock hazards.

Because the gateway handles data from multiple sub-meters, Modbus Addressing Discipline is essential; duplicate slave IDs on the RS-485 network will cause communication collisions and data loss. Additionally, operators must configure the Firewall and Password Settings immediately upon initial login, as leaving the factory default credentials active exposes the device to network vulnerabilities. Finally, ensure the network NTP (Network Time Protocol) Server is properly synchronized, as inaccurate timestamps can render logged energy data useless for forensic power quality analysis.

Product Applications

The Schneider PAS600L is predominantly implemented in smart buildings, industrial facilities, and data centers where energy tracking is vital.

Smart Commercial Buildings: Aggregating data from lighting controls, HVAC meters, and main distribution boards to achieve green building certifications like LEED or BREEAM.
Industrial Plants and Factories: Monitoring the power consumption and operational health of heavy machinery, pumps, and production lines to prevent unexpected downtime.
Data Center Infrastructure Management: Tracking Power Usage Effectiveness (PUE) by continuously reading precision meters installed at the power distribution unit (PDU) level.
Renewable Energy Integration: Interfacing with solar inverters, battery storage systems, and electric vehicle charging stations to monitor energy flow and self-consumption.
Multi-Tenant Retail or Residential Spaces: Providing the master data stream for sub-billing systems to accurately allocate energy costs to individual tenants.

XALD211H29H7 SCHNEIDER

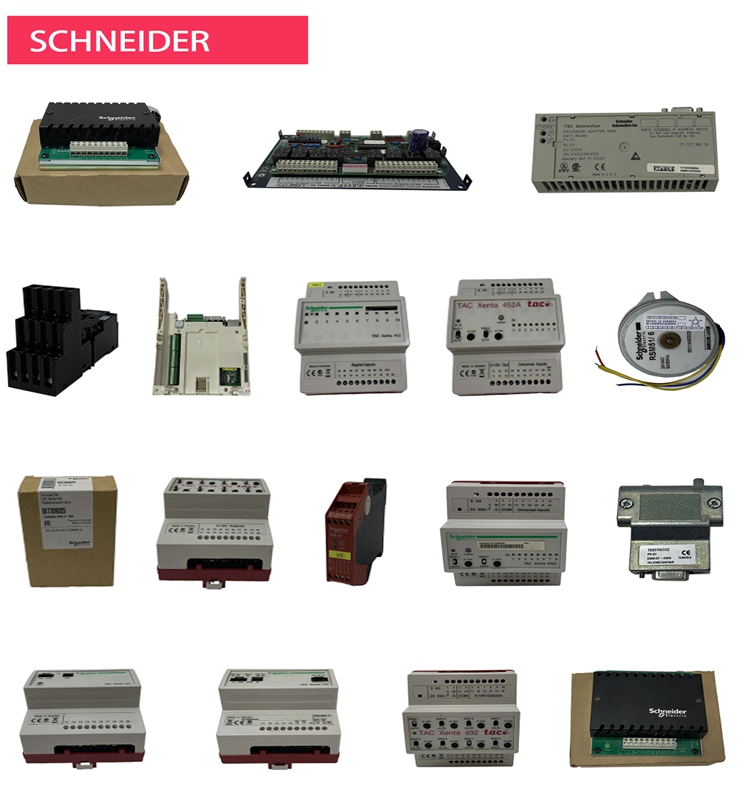

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
