BT-4/DIO1/10 SCHNEIDER

BT-4/DIO1/10 SCHNEIDER Input module

Brand：SCHNEIDER Model number：BT-4/DIO1/10

Country of origin: France Product weight：0.55kg

HS code：853710119

Inquire Now

Product Details：

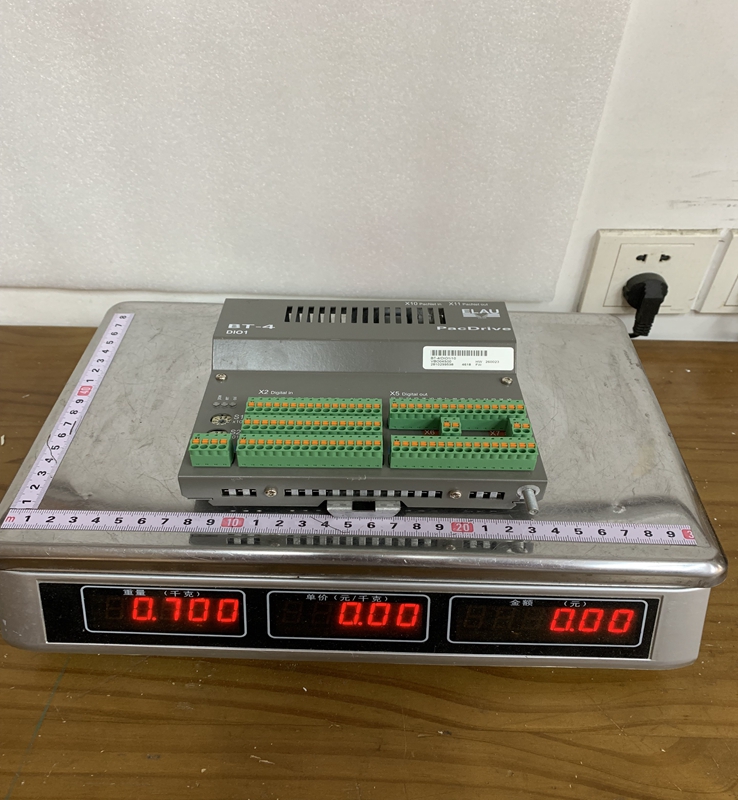

Product Dimensions：

The BT-4/DIO1/10 acts as a remote PacNet bus terminal, connecting localized sensors and actuators directly to a centralized PacDrive Logic Motion Controller (such as the LMC Eco, LMC Pro, or LMC Pro 2 series). By utilizing the proprietary PacNet fieldbus, this module provides deterministic, hard real-time communication that synchronizes standard digital I/O states with sophisticated servo multi-axis motion profiles. It functions as a compact interface point directly on the machine frame or in a decentralized junction box, eliminating long cable runs back to the main control panel.

Product Parameters

Brand Family: Schneider Electric / Elau PacDrive
Model Name: PacDrive BT-4 Bus Terminal
Model Configuration: BT-4/DIO1/10 (Commercial Reference: VBO04S00)
Digital Inputs: 16 channels, standard $24 \text{ VDC}$ logic
Digital Outputs: 16 channels, standard $24 \text{ VDC}$ logic
Bus Interface: PacNet fieldbus interface for deterministic motion system connection
Power Supply: $24 \text{ VDC}$ nominal operating voltage for internal logic and I/O loops
Diagnostics Interface: Embedded software support via EcoStruxure Machine Expert (and legacy PacDrive tools) with comprehensive parameter masks like DiagMask, OpenloadDiagMsk, and OverloadDiagMsk
Product Weight: Approximately $0.70 \text{ kg}$ to $1.25 \text{ kg}$ ( $1.54 \text{ lbs}$ to $2.75 \text{ lbs}$ ) depending on shielding and packaging options
Mounting Type: Standard integrated hardware for machine mounting panel environments
Lifecycle Status: Discontinued lifecycle phase, widely supported through official spare parts, legacy automation channels, and migration protocols to modern Modicon/PacDrive TM5 I/O subsystems

Product Advantages

A major benefit of the BT-4/DIO1/10 is its Advanced Intelligent Diagnostics. The module features individual channel monitoring that can identify open-load or overload wiring errors down to the exact bit, reducing troubleshooting time from hours to seconds. Its High-Speed Determinism ensures that input signals from fast-moving registration sensors are captured with virtually zero jitter, which is essential for maintaining product spacing and alignment on complex packaging lines.

The Decentralized Layout reduces raw copper cabling costs by allowing 32 distinct I/O points to be collected locally and transmitted back over a single high-speed bus cable. Additionally, its seamless integration into the PacDrive LMC Controller Framework means it requires zero complex driver programming; the system automatically maps the hardware addresses directly into the motion control object dictionary.

Important Considerations and Precautions

When configuring or servicing the BT-4/DIO1/10, operators must prioritize proper configuration of the Diagnostic Masks (DiagMask) within the control software; failing to enable these monitoring parameters will deactivate critical short-circuit and open-circuit detection, which can cause intermittent machine stops or damage connected field devices. Because the module is built for motion control synchronization, Strict Shielding Guidelines must be followed for the PacNet cables; routing the bus network near high-voltage motor power cables without appropriate separation can introduce electromagnetic interference and cause communication dropouts.

It is vital to monitor the total Current Load Limit across all 16 digital outputs combined, ensuring that the cumulative draw of connected solenoids or indicators does not exceed the module's rated current capacity. Lastly, because the BT-4/DIO1/10 is a Discontinued Product Line, engineering teams should avoid using this specific reference for entirely new automation projects and instead evaluate current Schneider Electric replacement paths within the PacDrive 3 LMC Pro/Eco and Modicon TM5 I/O system lines.

Product Applications

The BT-4/DIO1/10 is deployed globally in high-speed, synchronized machine environments where packaging precision is paramount.

Form-Fill-Seal (FFS) Packaging Machines: Synchronizing the digital triggers for heating elements, film cutters, and product feeding mechanisms with the servo-driven axis.
High-Speed Labeling Equipment: Interfacing with registration mark sensors and label application valves that demand microsecond-level input response times.
Palletizing and Sorting Robotics: Coordinating end-of-arm tooling sensors, proximity switches, and pneumatic actuators in multi-axis handling zones.
Food and Beverage Processing: Managing auxiliary conveyor gates, capping sensors, and container verification systems along continuous bottling lines.
Cartoning and Case Packing Systems: Monitoring safety interlocking doors, box-feed sensors, and glue-gun timing outputs in high-output fulfillment machinery.
