EA9-T6CL-R Automationdirect

EA9-T6CL-R Automationdirect Programmable controller

Brand：Automationdirect Model number：EA9-T6CL-R

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

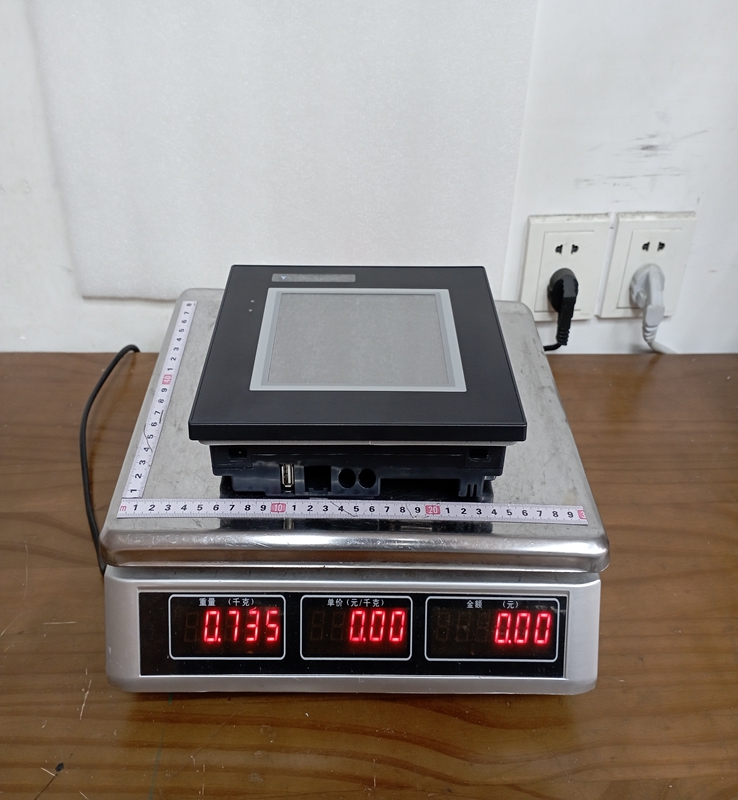

Product Dimensions：

The EA9-T6CL-R features a 6.1-inch TFT display with 65,536 colors and a 320 x 240 pixel (QVGA) resolution, delivering clear visuals for process monitoring. It utilizes a resistive touchscreen, allowing operators to operate the panel using gloved hands or styluses in demanding shop-floor environments. The unit includes built-in serial ports, an Ethernet interface, and USB connectivity for quick programming, remote monitoring, and connection to peripheral hardware like barcode scanners or flash drives. Configured via the free C-more programming software, the panel simplifies tag management, screen building, and database integration across multiple PLC brands.

Product Parameters

Display Type: 6.1-inch TFT color liquid crystal display.
Resolution: 320 x 240 pixels (QVGA).
Color Depth: 65,536 colors.
Touch Panel Type: Analog resistive touchscreen.
Backlight: LED backlight with an operating lifespan of approximately 50,000 hours.
Processor Speed: 800 MHz RISC CPU.
Internal Memory: 26 MB user application memory alongside dedicated system memory.
Communication Interfaces: One 10/100Base-T Ethernet port, one RS-232 serial port (RJ12), one RS-422/485 serial port (15-pin D-sub), one USB Type A master port, and one USB Type B programming port.
Input Voltage: 12 to 24 VDC powered via an external power source.
Power Consumption: Approximately 12 Watts maximum.
Enclosure Rating: NEMA 4/4X indoor use only, IP65 equivalent when panel mounted correctly.
Operating Temperature: 0°C to 50°C (32°F to 122°F).
Storage Temperature: -20°C to 60°C (-4°F to 140°F).
Relative Humidity: 10% to 90% non-condensing.

Product Advantages

A primary advantage of the EA9-T6CL-R is its broad protocol compatibility, enabling seamless communication with major PLC manufacturers, including AutomationDirect, Allen-Bradley, Siemens, Omron, and Modbus devices.

Its resistive touchscreen and rugged front panel construction ensure reliable operation in harsh industrial conditions, even when exposed to dust, moisture, or operators wearing protective gloves.

The inclusion of Ethernet capabilities allows for advanced functions such as remote access, email notification alerts, web server monitoring, and automated file transfers via FTP.

Additionally, user-friendly software design capabilities—such as built-in object libraries, trend graphing, and event logging—significantly shorten development time and lower deployment costs.

Important Considerations and Precautions

When installing the EA9-T6CL-R, ensure the cutout dimensions precisely match the product manual to maintain the NEMA 4/4X seal integrity and prevent fluid ingress into the control cabinet.

Always supply a clean, regulated 12 to 24 VDC power source with proper grounding to avoid electrical noise interference or damage to internal communication chips.

To prevent physical damage to the resistive touch membrane, avoid using sharp tools, screwdrivers, or abrasive chemical cleaners on the display screen.

Ensure adequate clearance around the rear chassis inside the enclosure to allow proper heat dissipation during continuous operation.

Keep a backup of the user application file on a secondary medium, as firmware updates or severe electrical events could require re-flashing the panel.

Product Applications

The EA9-T6CL-R is suitable for medium-sized machinery and automated production lines requiring robust local control and dynamic visual status monitoring.

Packaging and Labeling Machinery: Operating conveyers, controlling filling machines, and monitoring real-time production counts and cycle times.
Water and Wastewater Treatment: Displaying tank levels, pump status, alarm history, and chemical dosing trends for facility operators.
Manufacturing Material Handling: Serving as the central interface for sorting systems, robotic loading cells, and palletizers.
HVAC and Energy Management: Monitoring environmental control parameters, temperature profiles, and system fault alerts in commercial installations.
Food and Beverage Processing: Providing cleanable, IP65-rated front-panel operator control for batch mixing, temperature tracking, and recipe management.
