PSP24-060S Automationdirect

PSP24-060S Automationdirect Programmable controller

Brand：Automationdirect Model number：PSP24-060S

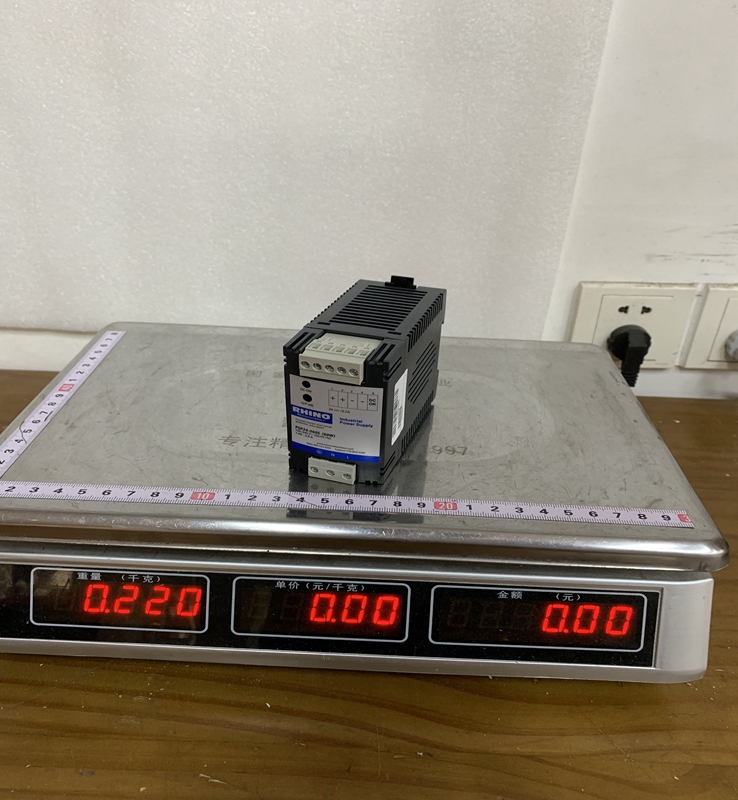

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The PSP24-060S features a lightweight, space-saving plastic housing designed for space-constrained enclosures. It incorporates universal input capabilities, meaning it can operate on a wide variety of standard AC or DC input voltages without requiring manual selector switches. This single-phase enclosed unit includes integrated protection mechanisms to prevent system components from failing due to overloads or short circuits. It is engineered with standard user-friendly connection options, including a removable screw terminal block that simplifies the installation and wiring process.

Product Parameters

Brand / Series: Rhino Select PSP Series
Output Voltage: $24 \text{ VDC}$ nominal (adjustable from $24.0$ to $28.0 \text{ VDC}$ )
Output Current: $2.5 \text{ A}$ maximum
Output Power: $60 \text{ W}$ continuous rating
Input Voltage Range: Universal input supporting $85-264 \text{ VAC}$ (nominal $120/240 \text{ VAC}$ , $50/60 \text{ Hz}$ ) or $85-375 \text{ VDC}$
Input Phases: Single-phase AC or DC input
Efficiency: Typically 83 percent at $115 \text{ VAC}$ and 86 percent at $230 \text{ VAC}$
Housing Material: Heavy-duty, compact plastic case
Protection Rating: IP20 finger-safe terminals
Mounting Type: Integrated standard $35 \text{ mm}$ DIN rail mount or chassis/panel mount using the included mounting hardware
Connector Type: Removable screw terminals
Safety Certifications: UL 508 Listed, UL 60950 Recognized, CE compliant, and constructed according to IEC/EN60950 requirements

Product Advantages

A major benefit of the PSP24-060S is its Ultra-Compact and Lightweight Design. The slim plastic housing occupies minimal space on a DIN rail, freeing up room for other essential control components inside tightly packed enclosures. Another clear advantage is the Universal Input Range, allowing the same power supply model to be deployed worldwide on various local electrical standards or direct DC bus systems.

The inclusion of Removable Screw Terminals enhances maintenance efficiency, allowing technicians to replace a unit quickly without un-wiring individual field connections. Furthermore, the unit features an Adjustable Output Voltage Potentiometer, giving system builders the flexibility to fine-tune the output to compensate for inline voltage drops across long wire runs.

Important Considerations and Precautions

When installing the PSP24-060S, ensuring Adequate Thermal Ventilation is essential. Although highly efficient, the power supply relies on natural convection cooling, meaning users must maintain the manufacturer's recommended vertical and horizontal clearances within the cabinet to prevent thermal derating or overheating shutdowns.

Special care should be given to Input Wiring Safety. Make certain that input lines are properly fused in accordance with local electrical codes prior to energizing the unit. Because the terminal block has an IP20 Protection Rating, it is protected against direct finger contact, but the entire unit must still be mounted inside an enclosed, debris-free industrial panel to protect it from airborne dust and moisture conductive path risks. Lastly, when executing Parallel Operation, note that while the PSP series supports combining up to five units for increased load capability or redundancy, specific load-sharing rules must be followed to avoid overloading any individual power supply.

Product Applications

The Rhino PSP24-060S is highly utilized across general automation settings for low-to-medium power distribution demands.

PLC Control Systems: Serving as the dedicated, stable $24 \text{ VDC}$ power source for small programmable logic controllers, such as the AutomationDirect CLICK or Do-more series.
Sensor and Instrumentation Arrays: Powering proximity switches, photoelectric eyes, limit switches, and process transmitters.
HMI Power Supplies: Providing clean, reliable voltage to human-machine interface operator screens and industrial touchscreens.
Pneumatic Control Valves: Actuating $24 \text{ VDC}$ solenoid valves and manifold assemblies in automated fluid power circuits.
Relay Logic Panel Arrays: Delivering the baseline power required to control coils, signal towers, and indicator lamps in decentralized machine panels.
