D0-06DR Automationdirect

D0-06DR Automationdirect Programmable controller

Brand：Automationdirect Model number：D0-06DR

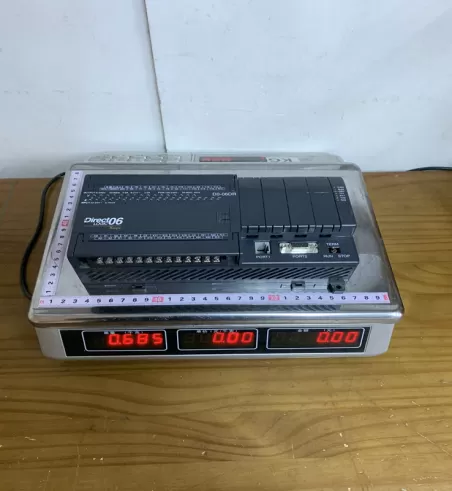

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The D0-06DR is powered by an AC source, specifically 100 to 240 VAC. It features a total of 36 fixed I/O points integrated into the base unit. The input section consists of 20 DC inputs which are 12 to 24 VDC sinking or sourcing. The output section consists of 16 relay outputs capable of handling 2A per point. The unit provides a 24 VDC auxiliary power output at 200 mA for powering sensors or other field devices. Communication is handled through two built-in RS-232C ports, with Port 2 supporting more advanced protocols like Modbus RTU and ASCII. The memory capacity includes 7.6k words of program memory and 7.4k words of data memory. For expansion, the unit accepts up to four DL06 option modules, which can include analog I/O, additional discrete I/O, or specialized communication cards.

Product Advantages

One of the primary advantages of the D0-06DR is its incredible feature-to-size ratio. Despite its small footprint, it provides a high density of I/O points, which saves valuable space inside control panels. The inclusion of four expansion slots is a standout benefit, as it allows users to customize the PLC with analog signals or high-speed counting capabilities that are usually reserved for larger, more expensive rack-based systems. Furthermore, the relay outputs provide high current switching and electrical isolation, which is ideal for controlling a variety of loads without the need for interposing relays. The dual communication ports also provide great flexibility, allowing one port to be dedicated to an HMI while the other handles programming or networking with other devices.

Important Considerations

Users must ensure that the total current draw from the auxiliary 24 VDC power supply and any expansion modules does not exceed the internal power supply's capacity. When wiring the relay outputs, it is crucial to install external fuses to protect the internal circuitry from short circuits or overcurrent conditions, as the internal relays are not fused. Because this model uses AC power, proper grounding is essential to minimize electrical noise and ensure operator safety. Additionally, while the D0-06DR is a robust controller, users should verify that the ambient temperature remains within the specified operating range of 0 to 55 degrees Celsius to prevent overheating, especially when the expansion slots are fully populated with high-power modules.

Product Applications

The D0-06DR is widely used in small to medium-scale industrial automation projects. Common applications include conveyor control systems where integrated high-speed inputs can track box positions and relay outputs can control motor starters. In the water and wastewater industry, it is frequently used for pump station control due to its ability to handle both digital signals and optional analog modules for level monitoring. It is also an excellent choice for packaging machinery, material handling equipment, and building automation tasks such as lighting or HVAC control. Because it supports Modbus RTU, it is often utilized as a cost-effective remote terminal unit (RTU) for data acquisition in larger SCADA networks.
