X20CP1486 B&R

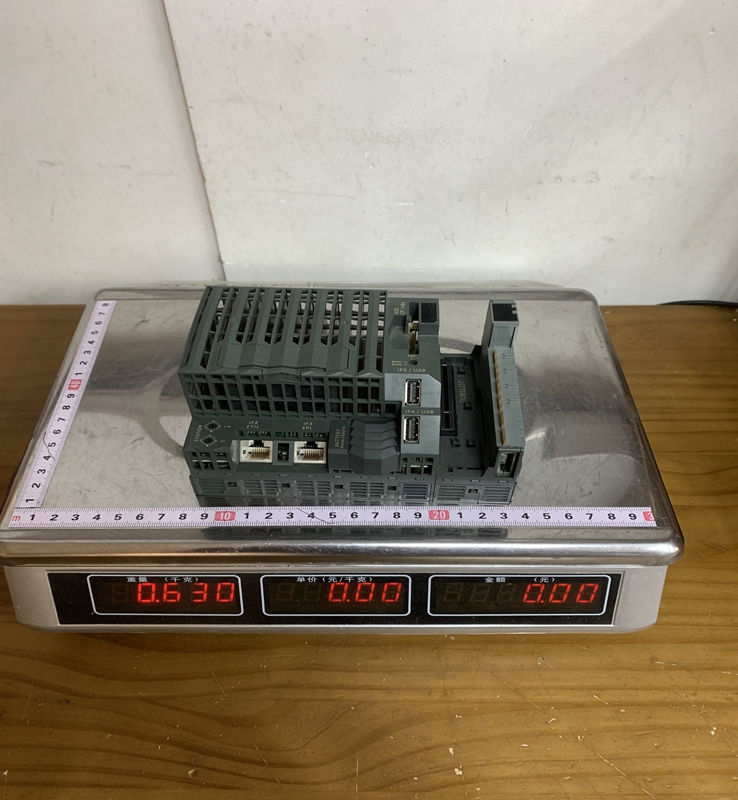

Product Dimensions：

The X20CP1486 is a central processing unit that integrates a high-speed processor with various communication interfaces. It is designed to be mounted on an X20 base module, which allows for seamless expansion with other X20 I/O modules. This CPU is part of the "Compact" class but offers features typically found in larger controllers, such as integrated Ethernet and USB ports. It runs on the B&R Automation Runtime, providing a real-time environment for deterministic control.

Product Parameters

The technical specifications of the X20CP1486 highlight its capability for demanding industrial applications:

• Processor: Intel Atom $1.0 \text{ GHz}$ processor.

• Memory: Equipped with $256 \text{ MB}$ of DDR3 RAM and $1 \text{ MB}$ of SRAM for retentive data storage.

• Onboard Interfaces: * One Ethernet port (10/100/1000 Base-T) for high-speed networking.

• One POWERLINK interface (can also be used as standard Ethernet).

• One USB 2.0 interface.

• One RS232 interface for serial communication.

• Storage: Uses an X20 CompactFlash card (sold separately) for the operating system and user applications.

• Clock: Integrated real-time clock (battery-buffered).

• Power Consumption: Typically around $10.5 \text{ W}$.

• Slot for Interface Modules: Includes one slot for an additional X20 interface module (e.g., CAN bus, Profibus, or additional serial ports).

Product Advantages

The X20CP1486 offers several distinct advantages for system integrators and machine builders. Its High Processing Speed allows for extremely short cycle times, which is critical for motion control and synchronized high-speed applications. The Integrated POWERLINK interface enables real-time, deterministic communication with drives and I/O slices without the need for additional hardware.

Another major benefit is the Modular Expansion capability. While the CPU is compact, it can be expanded with hundreds of different I/O modules, allowing the system to grow with the application. The Fanless Design increases reliability by eliminating a common point of mechanical failure, and the use of the Intel Atom processor ensures a high performance-to-power ratio, reducing heat generation in control cabinets.

Important Considerations and Precautions

When working with the X20CP1486, certain precautions are necessary to ensure system longevity and safety. First, the CompactFlash card is essential for operation; the CPU will not boot without a correctly formatted and programmed CF card. Second, ensure that the System Power Supply is stable and meets the specified voltage requirements, as voltage drops can lead to data loss or CPU crashes.

Regarding physical installation, the module must be mounted on the correct X20 Base Module. Improper alignment during insertion can damage the backplane pins. Because the unit is fanless, users must maintain the Minimum Clearance around the CPU as specified in the manual to ensure adequate convection cooling. Lastly, always perform a backup of the retentive SRAM data, especially if the internal battery is approaching the end of its typical service life.

Product Applications

The B&R X20CP1486 is found in a wide variety of high-end industrial sectors:

• Packaging Machinery: Controlling high-speed wrapping, filling, and labeling machines where precise timing is paramount.

• Metalworking and CNC: Managing complex axis movements and tool synchronization in machining centers.

• Renewable Energy: Used in wind turbine control systems for pitch regulation and grid synchronization.

• Robotics: Acts as a main controller for pick-and-place robots or automated guided vehicles (AGVs) requiring real-time sensor integration.

• Plastic Processing: Controlling injection molding machines where temperature regulation and hydraulic pressure must be monitored with millisecond accuracy.
