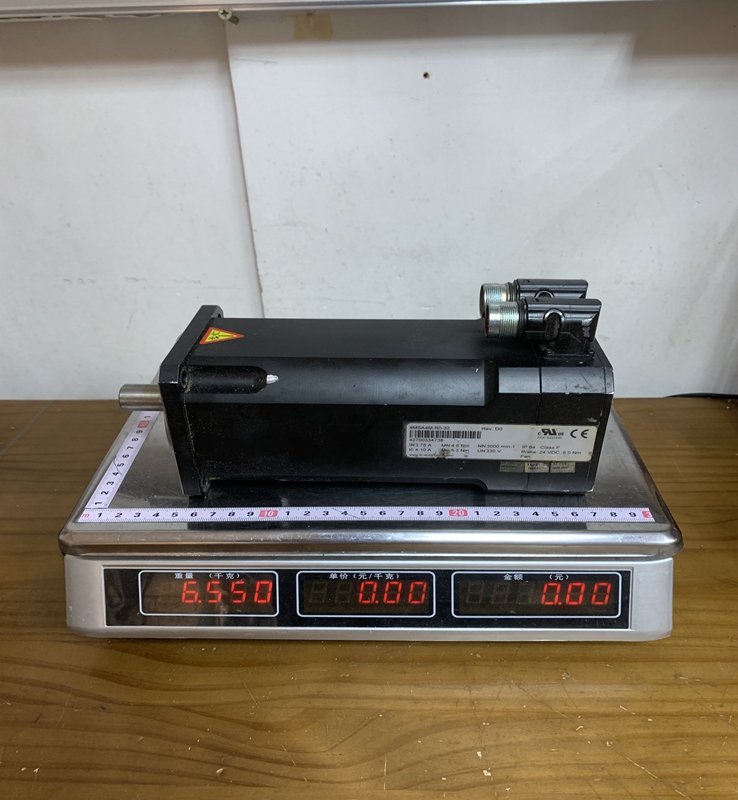

8MSA4M.R0-32 B&R

Product Dimensions：

The 8MSA4M.R0-32 belongs to the 8MS family of three-phase synchronous motors. These motors are characterized by their permanent magnet design, which allows for a high power-to-weight ratio and exceptional torque density. The "8MSA" prefix denotes a specific motor size and cooling type within the B&R ecosystem, designed to integrate seamlessly with ACOPOS servo drives. This specific model features a high-resolution encoder and is built to handle high acceleration and deceleration cycles common in modern packaging and assembly lines.

Product Parameters

The 8MSA4M.R0-32 is defined by the following technical specifications:

• Motor Type: Three-phase permanent magnet synchronous servo motor.

• Flange Size: Size 4, which indicates the mounting interface and physical dimensions of the motor housing.

• Rated Speed: Typically rated for operation up to 3000 or 4500 RPM depending on the drive configuration.

• Stall Torque: Engineered to provide consistent torque at zero speed for holding and precise positioning.

• Feedback System: Equipped with a high-resolution optical or inductive encoder (the "R0" designation often refers to an EnDat encoder or similar high-precision feedback).

• Connection Type: Features robust circular connectors for power and encoder signals, ensuring secure electrical contact even in high-vibration environments.

• Insulation Class: Built to Class F standards, allowing the internal windings to withstand temperatures up to 155°C.

• Degree of Protection: Standard IP64 protection rating, which can be increased to IP65 with the use of an optional shaft seal.

Product Advantages

One of the primary advantages of the 8MSA4M.R0-32 is its Low Rotor Inertia. This allows the motor to respond almost instantaneously to control commands, making it ideal for high-speed indexing and rapid start-stop cycles. The Compact Design ensures that it can be integrated into tight machine spaces without sacrificing performance.

Another significant benefit is the Seamless Integration with B&R ACOPOS Drives. Through the "Embedded Parameter Chip," the motor automatically identifies itself to the drive, transferring all necessary limit and control parameters, which simplifies commissioning and prevents configuration errors. Furthermore, the motor offers High Overload Capacity, allowing it to deliver peak torque significantly higher than its rated continuous torque for short durations.

Important Considerations and Precautions

When installing and operating the 8MSA4M.R0-32, several precautions must be followed to ensure longevity. First, Shaft Alignment is critical; any misalignment between the motor shaft and the load can lead to bearing failure and encoder damage due to excessive radial or axial forces.

Second, users must pay attention to Thermal Management. While the motor is highly efficient, it must have adequate airflow or be mounted to a heat-dissipating surface to prevent thermal tripping during high-duty cycles. Third, Encoder Sensitivity must be considered; the high-resolution feedback system is sensitive to strong magnetic fields and physical shocks, so care should be taken during handling and cable routing. Finally, always use Original B&R Pre-assembled Cables to ensure proper shielding and signal integrity, as poor-quality cabling is a leading cause of "Encoder Fault" errors in servo systems.

Product Applications

The 8MSA4M.R0-32 is a versatile component found in a wide variety of high-end industrial machinery.

• Packaging Industry: Used in pick-and-place robots, labeling machines, and rotary capping systems where high precision and speed are required.

• CNC Machining: Driving auxiliary axes or tool changers where compact size and accurate positioning are essential.

• Printing and Paper: Controlling tension and registration in high-speed printing presses or converting equipment.

• Assembly Automation: Integrated into electronic component assembly lines that require rapid, repeatable movements with micrometer-level precision.

• Textile Machinery: Used for precise yarn tension control and high-speed needle movements.
