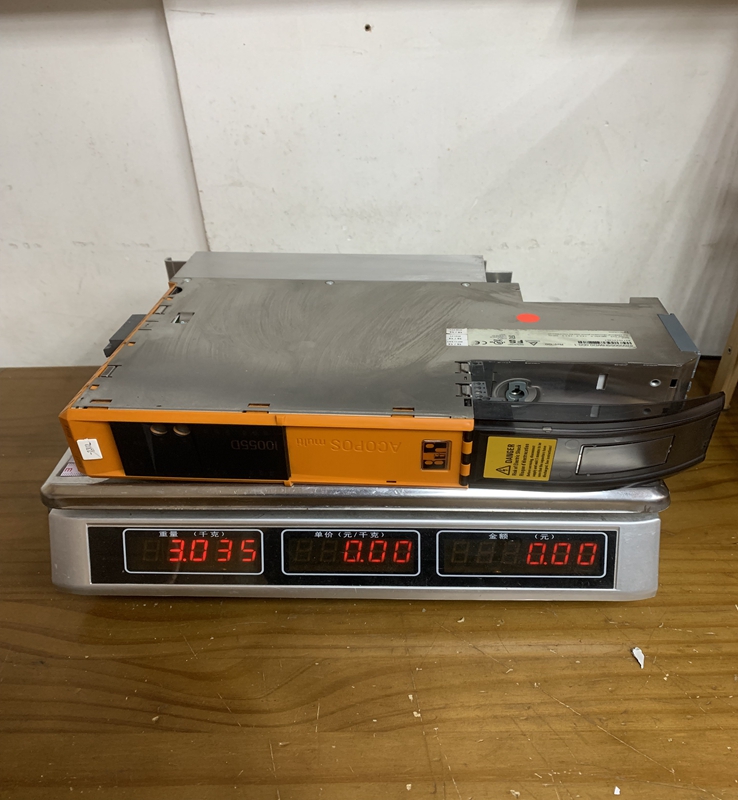

8BV10055HWD0.000-1 B&R

Product Dimensions：

The 8BV10055HWD0.000-1 is an ACOPOSmulti inverter module. In a typical setup, it connects to a mounting plate and receives power from a central supply module via the DC bus. This specific model is a dual-axis (or "two-fold") inverter, meaning it can control two independent motors from a single physical housing, which significantly reduces the space required in the control cabinet. It features advanced safety technology integration and supports high-speed synchronization via POWERLINK, the industrial Ethernet standard used by B&R.

Product Parameters

The technical specifications for the 8BV10055HWD0.000-1 define its power capacity and environmental limits:

• Number of Axes: 2 (Dual-axis inverter)

• Continuous Current: $5.5 \text{ A}$ per axis (effectively providing power for two separate motors)

• Peak Current: Typically $11 \text{ A}$ or higher depending on the specific firmware and thermal conditions

• DC Bus Voltage: Operates within the standard ACOPOSmulti DC bus range, typically $750 \text{ VDC}$

• Communication: Integrated POWERLINK interface for real-time motion control

• Safety Integration: Supports STO (Safe Torque Off) and other integrated safety functions via openSAFETY

• Cooling Method: Wall mounting with heat dissipation through the mounting plate or internal fans

• Dimensions: Slim-line modular design intended for mounting on ACOPOSmulti plates

Product Advantages

One of the most significant advantages of this module is its Space Efficiency. By controlling two axes in one unit, it slashes the required cabinet width compared to using two separate single-axis drives.

The Energy Efficiency is another highlight; because it is part of the ACOPOSmulti series, it can utilize regenerative braking energy from one motor to power another axis through the common DC bus, reducing overall power consumption.

Furthermore, the Seamless Integration with B&R Automation Studio software allows for rapid configuration and advanced diagnostic capabilities. The use of Pre-formatted Cables and a pluggable wiring system ensures that installation is fast and error-free, minimizing the risk of wiring faults during commissioning.

Important Considerations and Precautions

When working with the 8BV10055HWD0.000-1, strict adherence to safety protocols is mandatory. First, the Residual Voltage Hazard is critical; after disconnecting the power, you must wait several minutes (usually 5 to 10 minutes) for the DC bus capacitors to discharge to a safe level before touching any terminals.

Second, the module must be installed on a B&R Mounting Plate (8VPM type) specifically designed for the ACOPOSmulti series to ensure proper electrical contact and heat dissipation.

Third, ensure that the Motor Feedback Cables are shielded and routed away from high-power lines to prevent signal interference.

Lastly, always verify that the Firmware Version of the drive is compatible with the version of Automation Studio being used for the project to avoid communication errors or restricted functionality.

Product Applications

The 8BV10055HWD0.000-1 is ideal for high-speed, high-precision motion control applications across various sectors:

• Packaging Industry: Controlling multi-axis robotic arms for pick-and-place operations or managing the synchronized motion of labeling and filling machines.

• Printing and Paper: Managing precise tension control and synchronized roller speeds in high-speed printing presses.

• Textile Machinery: Coordinating the complex, fast movements of weaving or knitting machines where multiple small motors must work in perfect harmony.

• Plastic Processing: Used in injection molding machines or blow molding equipment for precise mold movements and ejector control.

• Assembly Lines: Controlling small-scale gantries or rotary tables in automotive part assembly where space is at a premium.

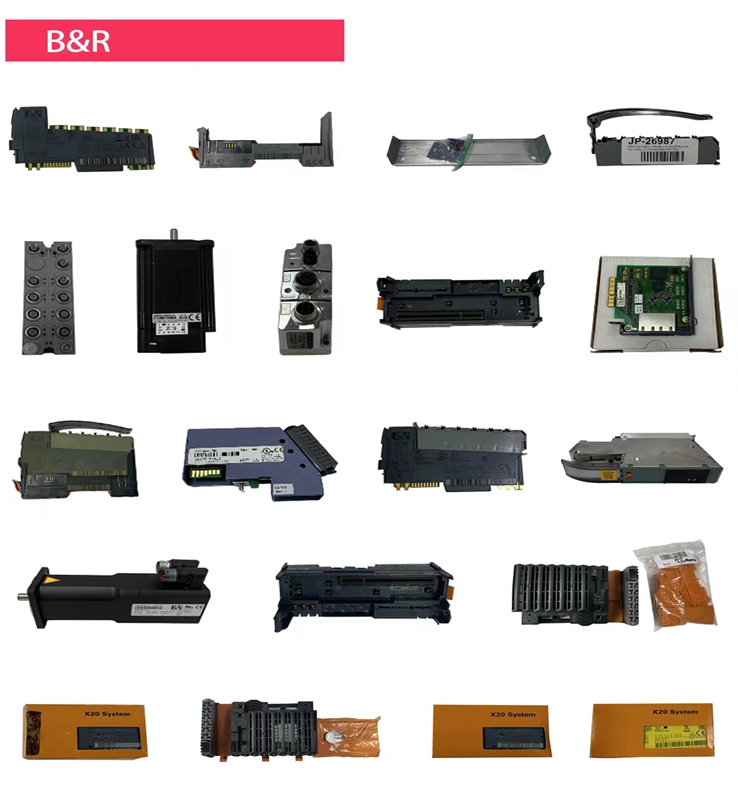

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
