7CP430.60-1 B&R

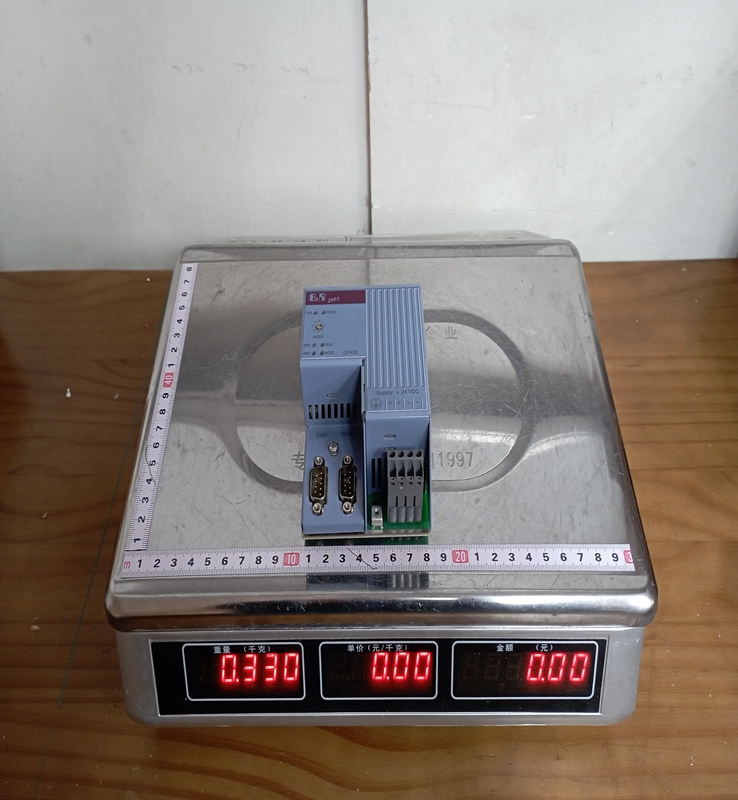

Product Dimensions：

The 7CP430.60-1 is a Pentium-class processor module that serves as the heart of a System 2005 PLC. It is engineered to handle demanding industrial applications, ranging from high-speed motion control to extensive data processing. This CPU module integrates multiple communication interfaces directly on the front panel, allowing it to act as a central hub for machine networking. The module is built to be inserted into a System 2005 backplane, where it communicates with various I/O and specialized function modules. It runs on B&R's proprietary real-time operating system, ensuring deterministic performance for time-critical automation processes.

Product Parameters

• Processor Type: Intel Pentium-class low-power processor.

• Memory Configuration: Typically equipped with $32 \text{ MB}$ or $64 \text{ MB}$ of DRAM (depending on the specific hardware revision) and utilizes CompactFlash cards for program storage and data retentivity.

• Communication Interfaces: Includes one RS-232 interface, one CAN bus interface, and one Ethernet 10/100 Base-T port.

• Real-Time Clock: Integrated battery-backed hardware clock for time-stamping and scheduling tasks.

• Status Indicators: LED display for CPU status, battery health, and communication activity (RUN, ERR, BAT, etc.).

• Power Consumption: Optimized for low power draw to minimize heat generation within the control cabinet.

• Programming Environment: Configured and programmed using B&R Automation Studio.

• Slot Requirement: Occupies one standard slot in the System 2005 base plate.

Product Advantages

A major advantage of the 7CP430.60-1 is its Exceptional Processing Speed, which allows for extremely short cycle times, making it ideal for high-speed packaging and printing machinery. The Integrated Connectivity is another highlight; having Ethernet and CAN bus on-board reduces the need for additional communication modules, saving both cost and space. The Deterministic Real-Time Performance ensures that control loops remain stable and predictable, even under heavy communication loads. Furthermore, the Modular Scalability of the System 2005 platform means that this CPU can easily manage a few local I/O points or a massive distributed network of hundreds of sensors and actuators.

Important Considerations and Precautions

When deploying the 7CP430.60-1, it is essential to monitor the Buffer Battery health; if the battery fails, retentive data and the real-time clock settings will be lost during a power cycle. Users should implement a regular maintenance schedule to replace the battery every few years. Thermal Management is also critical; ensure that the control cabinet has adequate ventilation, as excessive heat can lead to processor throttling or hardware failure.

Because this module uses a CompactFlash Card for storage, never remove the card while the CPU is powered on, as this can corrupt the file system and prevent the controller from booting. Additionally, when wiring the CAN interface, ensure that proper termination resistors ($120 \text{ \Omega}$) are installed at both ends of the network to prevent signal reflections and communication errors. Finally, always verify that the Firmware Version of the CPU is compatible with the version of Automation Studio being used for the project to avoid deployment conflicts.

Product Applications

The B&R 7CP430.60-1 is widely used in high-end industrial machinery where precision and speed are the top priorities.

• Plastic Processing: Controlling the complex temperature zones and high-speed injection cycles of plastic molding machines.

• Printing and Paper: Managing the synchronization of multiple axes in high-speed rotary printing presses.

• Packaging Technology: Powering vertical form-fill-seal machines and high-speed sorting systems.

• Energy Management: Acting as a central controller for local power distribution grids or large-scale wind turbine control systems.

• Textile Machinery: Handling the intricate patterns and high-frequency movements required in modern weaving and knitting machines.
