2090-XNSM-M Allen-Bradley

2090-XNSM-M Allen-Bradley Power Board

Brand：Allen-Bradley Model number：2090-XNSM-M

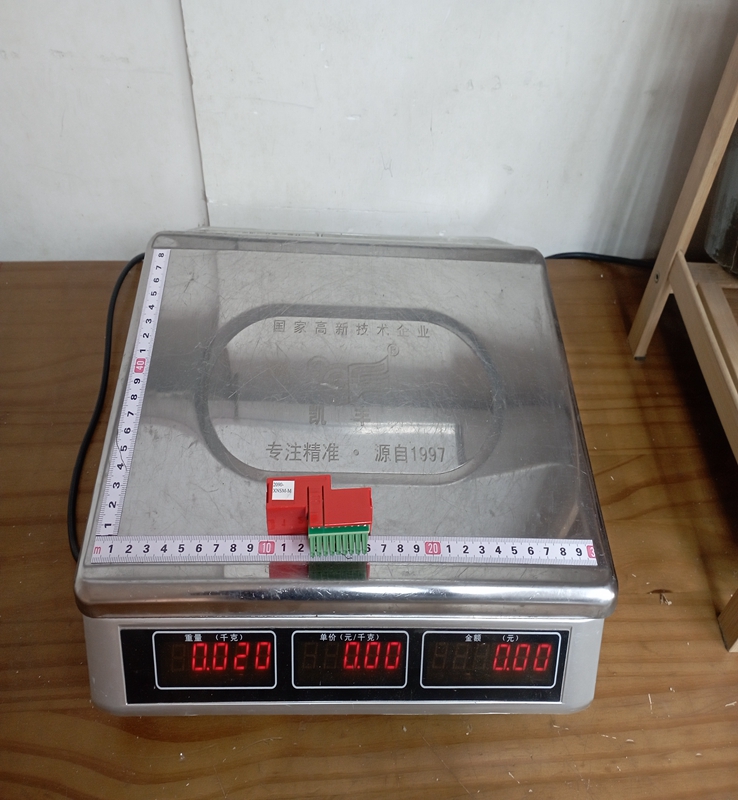

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The Allen-Bradley 2090-XNSM-M is a high-performance Feedback Connector Kit designed specifically for use with Kinetix 5500 and Kinetix 5700 servo drive systems. This connector is a critical accessory in the motion control ecosystem, serving as the physical interface for motor feedback signals. It is engineered to simplify the wiring process by utilizing a "solderless" design, which significantly reduces installation time and improves the reliability of the feedback connection between the servo motor and the drive.

Product Parameters

Product Type: Feedback Connector Kit
Connector Style: Motor-end or Drive-end feedback connector (depending on the specific cable configuration)
Pin Configuration: Multi-pin design optimized for high-density feedback signals
Wire Termination: Features a solderless clamp-style or crimp-style termination to ensure secure electrical contact without the need for soldering tools
Compatibility: Exclusively designed for Kinetix 5500 and Kinetix 5700 servo drives and compatible Allen-Bradley VP-Series or MP-Series servo motors
Operating Temperature: Rated for industrial environments, typically ranging from $0$ to $60$ °C ( $32$ to $140$ °F)
Material Construction: Rugged plastic housing with high-quality metallic contacts for EMI/RFI shielding and durability

Product Advantages

Simplified Installation: The 2090-XNSM-M eliminates the need for complex soldering. This makes it much easier for field technicians to assemble custom-length cables or perform repairs on-site, reducing overall labor costs.
Superior Signal Integrity: It is designed with integrated shielding features that protect sensitive feedback signals (such as encoder data) from electromagnetic interference (EMI), which is common in high-power industrial environments.
Compact Footprint: The connector is designed to fit the narrow form factor of modern Kinetix drives, allowing for high-density mounting in electrical cabinets where space is at a premium.
Reliability and Security: The mechanical locking mechanism ensures that the feedback cable remains securely attached even in applications involving high vibration or constant motion.

Important Considerations

Proper Grounding: To prevent signal noise and intermittent faults, the cable shield must be correctly terminated within the connector housing as per Rockwell Automation's installation guidelines.
Tool Requirements: While it avoids soldering, specific crimping tools or small screwdrivers may be required depending on the exact wire gauge being used to ensure a "gas-tight" connection.
Environmental Sealing: This connector is typically intended for use inside a controlled electrical cabinet. If the application requires high-pressure washdowns, ensure the connector is properly protected or housed within an appropriately rated enclosure.
Single-Use Warning: While the connector is durable, repeatedly opening and closing the wire clamps can fatigue the metal; it is best practice to use a new connector if the wiring needs to be significantly overhauled.
Pin Alignment: Extreme care should be taken during assembly to avoid bending the pins, as damaged pins can lead to feedback errors such as "Motor Feedback Loss" faults on the drive.

Product Applications

The 2090-XNSM-M is used wherever precise motion control and motor synchronization are required. Its primary role is to transmit encoder positions and thermal sensor data back to the PAC (Programmable Automation Controller).

Automated Assembly Lines: Used in high-speed pick-and-place machines where precise motor feedback is essential for accuracy.
Packaging Machinery: Ideal for wrapping, labeling, and bottling machines that rely on the Kinetix 5500/5700 platform for synchronized movement.
Robotics: Integrated into the joints and actuators of industrial robots to provide the constant feedback necessary for complex path planning.
Material Handling: Used in automated storage and retrieval systems (ASRS) and high-speed sorters to monitor motor position and prevent mechanical collisions.
Food and Beverage: Employed in the dry-end of food processing facilities where servo-driven precision is required for portioning or sorting.
