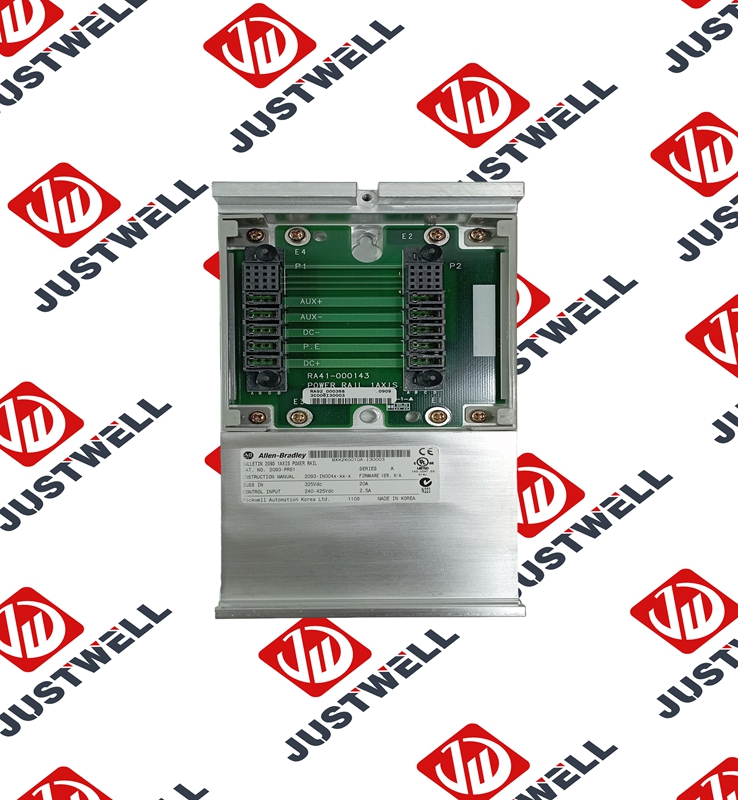

2093-PRS1 Allen-Bradley

2093-PRS1 Allen-Bradley Power Board

Brand：Allen-Bradley Model number：2093-PRS1

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The Allen-Bradley 2093-PRS1 is a high-performance Kinetix 2000 Single-Axis Slim Power Rail. It serves as the foundational mounting and interconnection component for the Kinetix 2000 multi-axis servo drive system. This rail provides the physical interface and electrical bus for an Integrated Axis Module (IAM) and optional accessories, enabling a compact and organized motion control setup.

Product Specifications

Product Line: Kinetix 2000
Axis Configuration: Single-axis (1-slot)
Type: Slim Power Rail
Physical Dimensions: 90mm x 167.5mm x 32.66mm (3.54in x 6.59in x 1.29in)
Weight: Approximately 0.27 kg (0.6 lbs)
Operating Temperature: 0 to 50 °C (32 to 122 °F)
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
Humidity: 5% to 95% non-condensing relative humidity
Vibration and Shock Resistance: 2G at 55–500Hz (vibration) and 15G (operational shock)
Enclosure Rating: IP2X
Certifications: CE, c-UL-us, C-Tick, and KC

Product Advantages

The 2093-PRS1 is designed to simplify the assembly of complex motion systems. Its primary advantage is the integrated backplane design, which eliminates the need for extensive manual wiring between modules by distributing logic power and control signals directly through the rail. The slim form factor is a significant space-saver, allowing for high-density power distribution in smaller control cabinets. Furthermore, it offers a modular expansion path, as it can accommodate either a single IAM or a combination of an axis module and a shunt module with the use of a slot filler. Its rugged construction ensures high reliability in industrial environments prone to vibration or electrical noise.

Important Considerations

Users must ensure the correct mounting order; the shunt module should typically be mounted to the right of the last axis module, though specific configurations like common bus applications may change these requirements. Environmental derating is necessary if the unit is installed at altitudes exceeding 1000 meters (3281 feet), where it typically derates by 15% for every additional 1000 meters. Before installation, it is vital to verify that all locking clips and screws are fully seated and torqued to approximately 0.7 Nm (6 lb-in) to ensure stable electrical contact. Finally, since the Kinetix 2000 series is a mature platform, users should consult the latest Rockwell Automation lifecycle status for long-term availability and support.

Product Applications

The 2093-PRS1 is used primarily in low-power motion control applications where space and precision are critical. Common industries and use cases include:

Packaging Machinery: Controlling small servo motors for labeling, capping, or wrapping stations.
Material Handling: Powering small-scale robotic arms, pick-and-place systems, and precise sorting conveyors.
Electronics Assembly: Integrated into machines for high-speed component placement and testing.
Food and Beverage: Utilized in processing lines where compact, multi-axis control is required for precision filling or sorting.
General Automation: Used alongside ControlLogix or CompactLogix controllers to provide synchronized motion for up to 8 axes in a single system.
