UMC22-FBP.01SAJ510000R0400 ABB

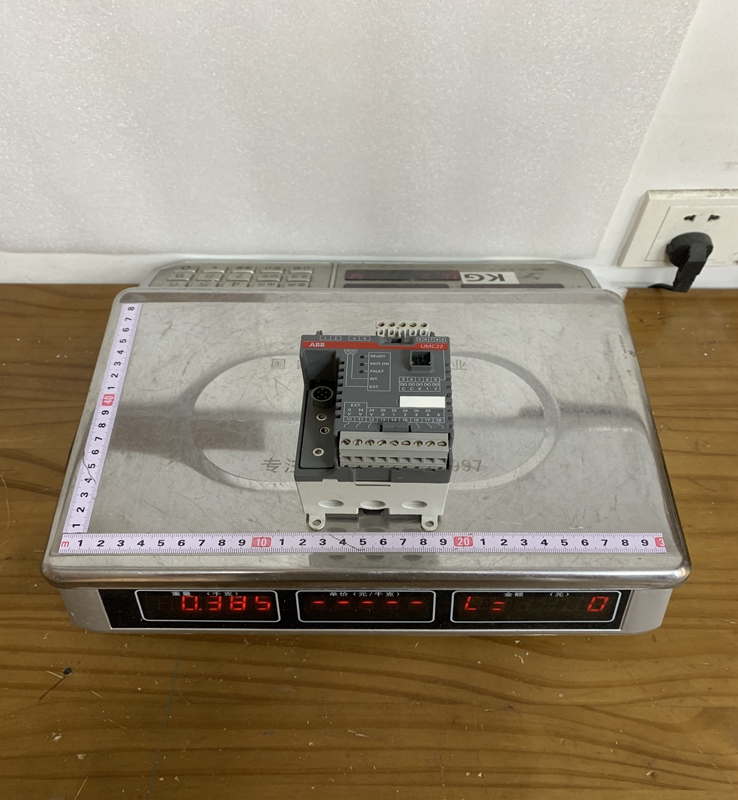

Product Dimensions：

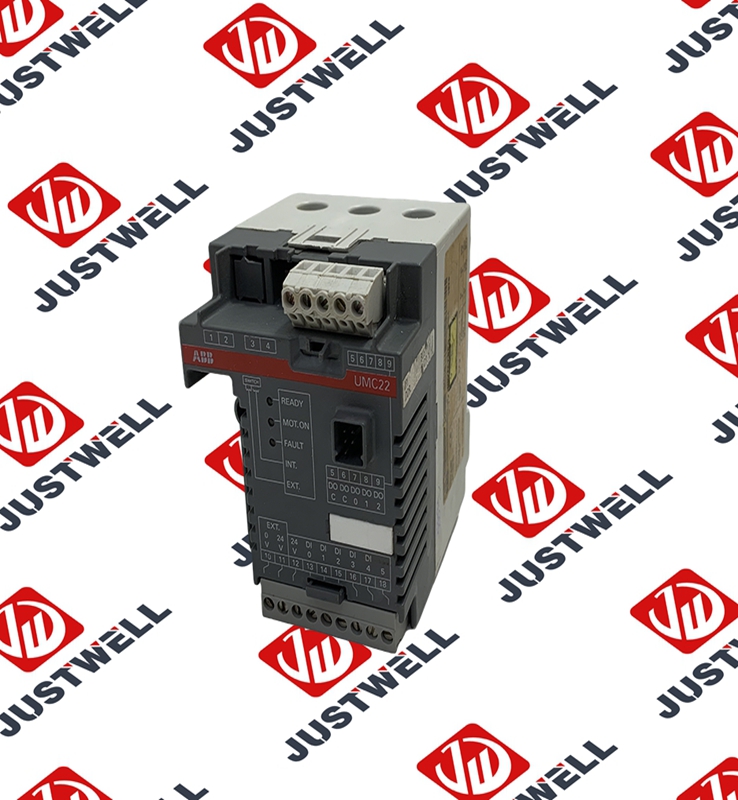

The UMC22-FBP.01 acts as an intelligent interface between the motor starter and the control system. It is a "FieldBusPlug" compatible device, meaning it can be easily integrated into different fieldbus networks (such as PROFIBUS, DeviceNet, or CANopen) simply by using the appropriate ABB communication plug. The unit features integrated current transformers for measuring motor current and provides several digital inputs and relay outputs for controlling contactors and monitoring local status. Its electronic overload protection is highly accurate, allowing for tighter control compared to traditional thermal bimetallic relays.

Product Parameters

• Supply Voltage: $24 \text{ VDC}$ (typically $-15\%$ to $+20\%$).

• Motor Current Range: Integrated measurement up to $25 \text{ A}$ (higher currents supported via external current transformers).

• Digital Inputs: 6 digital inputs for local control (e.g., start/stop buttons, limit switches).

• Relay Outputs: 3 relay outputs for contactor control and signaling.

• Overload Trip Class: Adjustable from Class 5 to Class 40, allowing for protection tailored to the motor's starting characteristics.

• Power Consumption: Approximately $3 \text{ W}$.

• Mounting: $35 \text{ mm}$ DIN rail.

• Dimensions: Width $70 \text{ mm}$, Height $105 \text{ mm}$, Depth $107 \text{ mm}$.

• Protection Functions: Phase failure, phase imbalance, locked rotor, and thermistor motor protection (PTC).

Product Advantages

One of the primary advantages of the UMC22-FBP.01 is its Universal Communication. Because it utilizes the FieldBusPlug concept, the controller hardware remains the same regardless of the communication protocol used, which simplifies spare parts inventory. The Integrated Motor Management reduces the amount of wiring and hardware needed in the control cabinet by replacing separate overload relays and control logic modules.

The Precision Protection offered by the electronic measurement system ensures that the motor is protected against subtle faults like phase imbalance, which can cause significant overheating. Furthermore, the unit provides Detailed Diagnostics via the fieldbus, allowing maintenance teams to see real-time motor current, trip history, and operational hours, facilitating predictive maintenance strategies.

Important Considerations and Precautions

When installing the UMC22-FBP.01, it is essential to ensure that the FieldBusPlug is Fully Seated and locked; a loose communication plug can lead to intermittent network faults that are difficult to diagnose. For motors with a nominal current exceeding $25 \text{ A}$, you must use External Current Transformers and correctly configure the transformation ratio in the software to avoid incorrect tripping or damage.

It is also important to note that the Control Supply ($24 \text{ VDC}$) should be stable and filtered; power surges on the control line can reset the controller, causing unexpected motor stops. When using the PTC Thermistor Input, ensure the wiring is shielded and separated from high-voltage motor cables to prevent induced noise from causing false temperature trips. Finally, always verify the Trip Class Setting against the motor manufacturer’s data sheet to ensure the motor can start successfully without tripping while still being protected against stalls.

Product Applications

The ABB UMC22-FBP.01 is found in sectors where motor reliability and remote monitoring are paramount.

• Oil and Gas: Controlling pumps and fans in hazardous areas where remote diagnostics reduce the need for manual inspection.

• Chemical Industry: Managing agitators and dosing pumps where precise protection against dry-running or locked rotors is required.

• Water and Wastewater: Used in pumping stations for sewage and clean water distribution, often integrated into a centralized SCADA system.

• Mining and Minerals: Protecting conveyor belt motors and crushers from heavy-load starting conditions and phase failures.

• Food and Beverage: Controlling bottling lines and industrial ovens where high hygiene standards require reliable automation components.
