TB511-ARCNET ABB

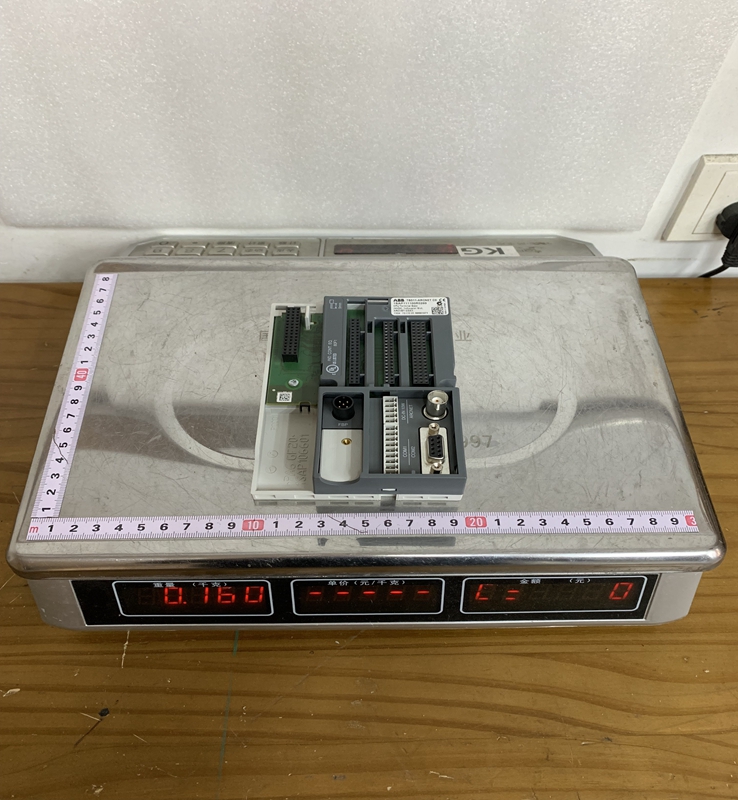

Product Dimensions：

The TB511-ARCNET is designed as a pluggable terminal block module that interfaces directly with the AC500 CPU's communication slots. Unlike standard serial or Ethernet ports, this module is engineered specifically for the ARCNET protocol, providing the physical layer and processing power needed to handle real-time data exchange between multiple controllers. It allows for a high degree of network flexibility, supporting various topologies like bus or star configurations when used with appropriate hubs. The module is built with a rugged industrial plastic housing and utilizes high-quality gold-plated connectors to ensure reliable electrical contact within the PLC backplane.

Product Parameters

• Product Series: AC500 Control System

• Communication Protocol: ARCNET (Token-passing)

• Data Transfer Rate: Typically supports up to $2.5 \text{ Mbit/s}$

• Transmission Medium: Coaxial cable (RG62) or twisted pair (depending on the network couplers used)

• Interface Type: D-Sub 9-pin female connector for ARCNET connection

• Power Supply: Internally powered via the AC500 CPU backplane bus

• Current Consumption: Approximately $40 \text{ mA}$ to $60 \text{ mA}$ from the internal $5 \text{ V}$ bus

• Address Range: Configurable node addresses from 1 to 255

• Diagnostic Indicators: Equipped with status LEDs for "Power" and "Activity" to monitor network health

• Operating Temperature: $0\text{°C}$ to $60\text{°C}$ ($32\text{°F}$ to $140\text{°F}$)

• Weight: Approximately $0.1 \text{ kg}$

Product Advantages

A key advantage of the TB511-ARCNET is its Deterministic Communication. Because ARCNET uses a token-passing scheme, there are no data collisions, ensuring that critical control messages are delivered within a predictable timeframe. The Ease of Integration is another benefit; as part of the AC500 ecosystem, it is fully supported by the Automation Builder software, allowing for straightforward configuration without complex low-level programming.

The module provides High Noise Immunity, making it ideal for environments with heavy electromagnetic interference where standard Ethernet might struggle. Furthermore, the Compact Modular Design allows users to add ARCNET capabilities only where needed, optimizing the hardware cost and cabinet space of the overall automation system.

Important Considerations and Precautions

When installing the TB511-ARCNET, it is vital to ensure that the Node Address is uniquely set for each device on the network; duplicate addresses will cause the token to be lost and bring down communication. Cable Termination is another critical factor; for coaxial bus topologies, $93 \text{ }\Omega$ terminators must be placed at both ends of the physical segment to prevent signal reflections.

Users must also be cautious about the Bending Radius of the coaxial or twisted-pair cables; sharp bends can alter the impedance of the line and lead to intermittent data errors. Because the module is Hot-Swap Restricted, the PLC power should always be turned off before inserting or removing the TB511-ARCNET from the CPU terminal base to prevent electrical surges from damaging the communication ASIC. Lastly, ensure that the Firmware Version of the AC500 CPU is compatible with the module version to avoid synchronization issues.

Product Applications

The TB511-ARCNET is primarily used in complex, multi-controller environments where high-speed synchronization is required.

• Printing Press Control: Synchronizing multiple independent print units that require microsecond-level coordination to maintain color alignment.

• Packaging Lines: Linking several AC500 PLCs together to coordinate the flow of materials across long, high-speed conveyor systems.

• Tunnel Ventilation Systems: Managing distributed I/O and controllers across long distances where deterministic response is needed for safety-critical air quality monitoring.

• Textile Machinery: Controlling multi-axis spinning or weaving machines where the timing of various motors must be perfectly matched.

• Renewable Energy Clusters: Networking multiple wind turbine controllers to a central supervisory station for real-time pitch and yaw adjustments.
