2TLA010070R0000 ABB Bailey

2TLA010070R0000 ABB Bailey Analog Input Module

Brand：ABB Model number：2TLA010070R0000

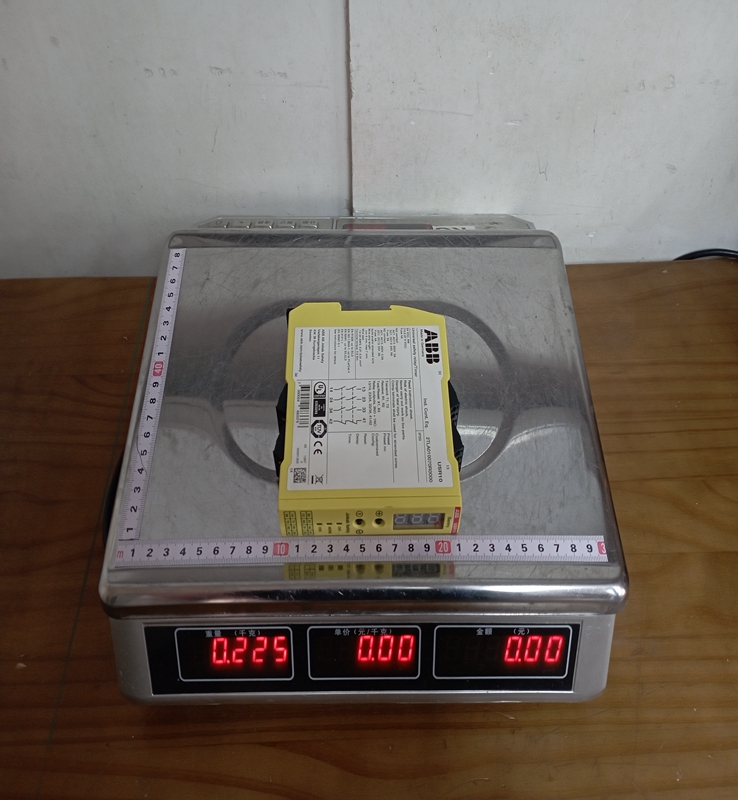

Country of origin: Sweden Product weight：0.55KG

HS code：8517623990

Product Details：

Product Dimensions：

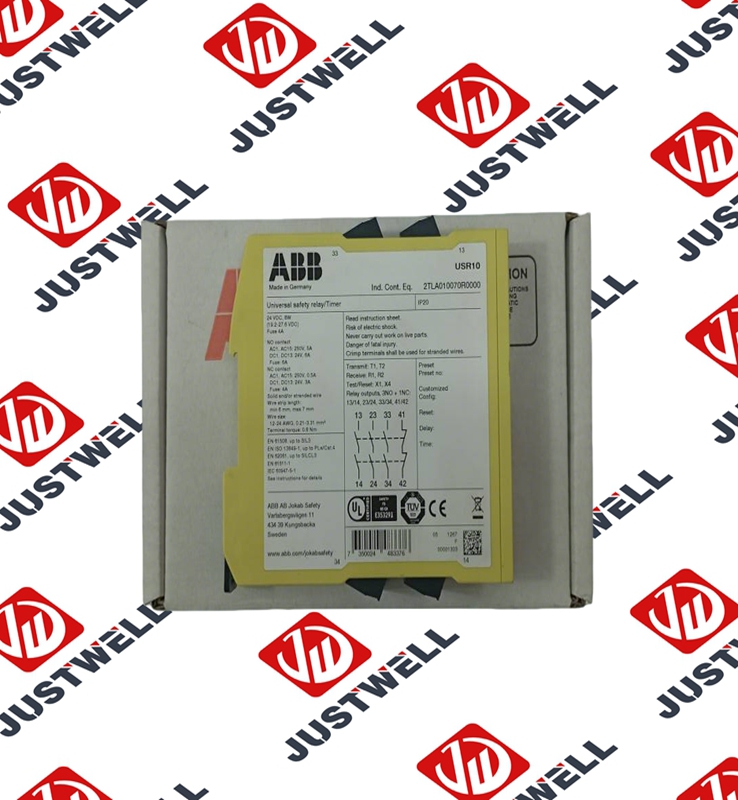

The ABB 2TLA010070R0000 is a Sentry USR10 Universal Safety Relay/Safety Timer from the ABB Jokab Safety product line. It is a highly versatile component designed to monitor a variety of safety devices and implement safety functions in machinery and industrial processes, achieving the highest safety levels.

Product Specifications

Product Type: Universal Safety Relay / Safety Timer
Product Series: Sentry USR10
Safety Level Certification: Up to Performance Level e (PL e) according to EN ISO 13849-1 and SIL 3 according to IEC 61508/EN 62061.
Supply Voltage: $24 \text{ VDC}$
Outputs: 3 Normally Open (NO) safety relay outputs (delayed) plus 1 Normally Closed (NC) auxiliary output.
Output Current Rating: Safety outputs rated up to $6 \text{ A}$ or $8 \text{ A}$ depending on specific load characteristics.
Timer Function: Integrated, high-accuracy timer function with better than $1\%$ accuracy. The adjustable time setting range is $0 \text{ to } 999 \text{ seconds}$ for functions like OFF-delay, ON-delay, Time bypass, and Time reset.
Terminals: Screw terminals for secure wiring connections.
Reset Function: Selectable between Manual or Automatic reset. It also supports a Multi-reset function for connecting up to ten safety relays to one reset button.
User Interface: Features a front-facing display to facilitate configuration, troubleshooting, and display error codes and an error log. Configuration can be protected by a password.
Mounting: DIN Rail mountable.
Dimensions (W x H x D): Approximately $22.5 \text{ mm} \times 120 \text{ mm} \times 120 \text{ mm}$.
IP Rating: IP20 (Requires installation within an enclosure).

Product Advantages

Universal Application: The USR10 is a single device capable of monitoring almost all common safety input devices, including emergency stops, two-hand controls, light curtains (OSSD devices), safety gates, safety mats, and edges/bumpers.
Highest Safety Integrity: Certified to achieve the highest safety rating of PL e / SIL 3, ensuring maximum protection for personnel and equipment.
Integrated Advanced Timing: The accurate, configurable timer function eliminates the need for a separate safety timer, reducing complexity and panel space for applications requiring delayed stops.
Enhanced Diagnostics: The built-in display provides clear and immediate status feedback, error codes, and a log, significantly speeding up troubleshooting and minimizing machine downtime.
High Output Capacity: With a large output current capacity, it can often drive larger contactors directly, potentially eliminating the need for intermediary relays.
Flexible Reset Options: The selectable automatic/manual and Multi-reset functions offer high flexibility in system design and operation.

Important Considerations (Precautions)

Professional Installation: The product must be installed, configured, and maintained by qualified personnel in accordance with all local and national electrical codes and machine safety standards.
Risk Assessment: This component is part of an overall safety system. The user or machine builder is responsible for conducting a complete risk assessment to ensure the entire system design meets the required safety performance level.
Enclosure: Due to its IP20 protection rating, the relay must be installed within a protective enclosure (e.g., an electrical cabinet) to shield it from dust, moisture, and mechanical damage.
Voltage Rating: Ensure the supply voltage is a stable $24 \text{ VDC}$ as specified to guarantee proper operation of the safety functions.
Password Protection: Utilize the password protection feature for configuration to prevent unauthorized changes that could compromise the safety circuit integrity.

Product Applications

The 2TLA010070R0000 safety relay is utilized across various industries and machines where robust, reliable safety monitoring and timely machine stoppage are critical.

Machine Guarding: Used to monitor the position of machine guards and safety gates, ensuring the machine stops before access to a hazardous area is gained.
Emergency Stop Systems: Central monitoring component for emergency stop buttons on a machine or production line.
Area/Perimeter Protection: Interfacing with light curtains (OSSD devices), laser scanners, safety mats, and safety edges to detect human presence in hazardous zones.
Press and Stamping Applications: Used with two-hand control devices to ensure an operator's hands are safely away from the point of operation during a machine cycle.
Process Line Applications: Implementing controlled, time-delayed stops (using the timer function) for conveyors or process equipment where an immediate stop might cause damage or unsafe conditions.
