SDCS-CON-3A ABB Bailey

Product Dimensions：

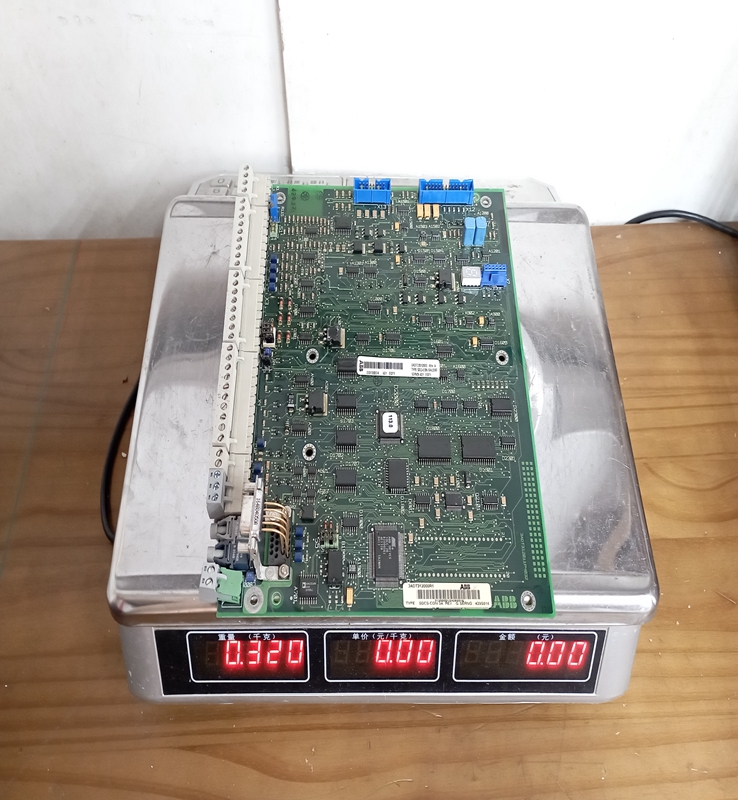

The SDCS-CON-3A board is the central processing unit for the thyristor power converter in the DCS400 drive. It manages and executes all the control algorithms, including speed and torque regulation, motor protection, and communication interfaces. The board contains a microcontroller, memory, and circuitry for handling analog and digital inputs/outputs, communication interfaces, and the firing pulse control for the drive's thyristor bridge. The layout of the board typically includes a seven-segment display for local diagnostics and parameter viewing, as well as connectors for various interfaces.

Product Specifications

• Product Type: DC Drive Control Board / Control Unit

• Compatible Drive Platform: ABB DCS400 series Thyristor Power Converters (DC Drives)

• Function: Main control and regulation unit for the DC drive.

• Core Feature: Includes an internal watchdog function for monitoring the control system's operation and ensuring fault safety.

• Safety Response (Watchdog Trip): A watchdog trip forces the digital outputs to $0 \text{ V}$ and resets and disables the thyristor firing control, placing the drive into a safe state.

• Connectivity: The board provides interfaces for real-time signals, including I/O, and typically supports DDCS (Distributed Drives Communication System) fiber-optic communication for networking drives or connecting to higher-level control systems.

• Component Context: It works in conjunction with other DCS400 boards like the Power Interface Board (SDCS-PIN-3A) and the Field Exciter (SDCS-FIS-3A).

Product Advantages

• Precise Motor Control: The board's advanced micro-controller architecture enables precise and high-performance control of DC motors, managing both speed and torque with accuracy required for demanding industrial processes.

• Integrated Safety: The built-in watchdog timer provides a fundamental level of drive and machine protection by forcing the drive to a safe state upon detection of a critical control failure.

• Simplified Diagnostics: The seven-segment display on the control board allows technicians to quickly read error codes and status information directly from the drive, facilitating faster troubleshooting and commissioning.

• System Integration: Through protocols like DDCS, the board allows for efficient communication and networking of the drive with other ABB drives or Distributed Control Systems (DCS), enabling synchronized multi-drive applications.

Important Considerations (Precautions)

• Electrostatic Discharge (ESD): As a sensitive electronic control board, it is extremely vulnerable to damage from electrostatic discharge. Always use proper ESD handling procedures, such as wrist straps, when installing, handling, or replacing the board.

• Power Down Requirement: Before attempting any installation, removal, or connection of cables to the SDCS-CON-3A board, the entire power converter unit must be completely isolated from the main supply voltage to prevent electric shock and potential damage to the drive.

• DCS400 Context: The SDCS-CON-3A is specific to the older DCS400 drive platform, which is considered a legacy product. Users should verify the long-term availability of spare parts and consider modernization or migration strategies to newer platforms like the DCS880 for new or critical installations.

• Configuration and Parameterization: Correctly setting the drive's parameters via the control board or connected tools is essential for safe and optimal performance. Incorrect configuration can lead to motor or drive damage.

Product Applications

The SDCS-CON-3A is used in the ABB DCS400 DC drive in various medium-power industrial applications requiring precise control of DC motors.

• Rolling Mills: Used in the metal industry for controlling the speed and tension of steel or aluminum during the rolling process.

• Paper and Pulp Machines: Employed to manage the complex, multi-section synchronized drives necessary for paper machines, winders, and rewinders.

• Cranes and Hoists: Provides accurate torque and speed control for lifting, lowering, and traversing heavy loads.

• Extruders and Mixers: Used in the plastics and rubber industries to maintain precise motor speed for consistent material processing.

• Printing Presses: Utilized for high-speed, synchronized control of various sections of industrial printing machinery.
